Summary of Contents for Gold Medal 5510

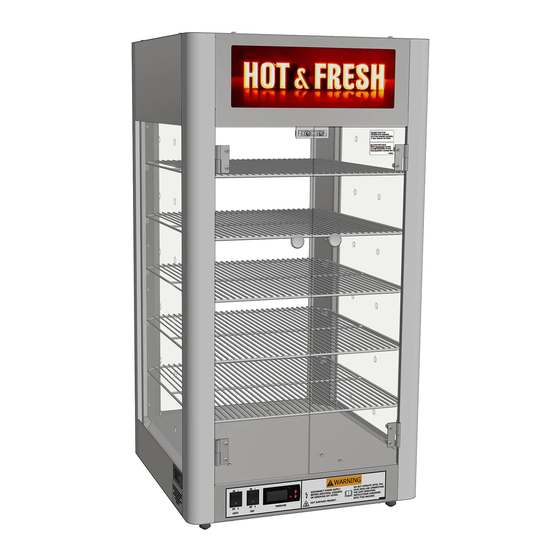

- Page 1 Instruction Manual Designer Holding Cabinet Model Series: 5510, 5511, and 5512 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2021 Gold Medal Products Co. Part No. 110291...
-
Page 2: Table Of Contents
Designer Holding Cabinet Model Series: 5510, 5511, and 5512 Table of Contents SAFETY PRECAUTIONS ........................... 3 INSTALLATION INSTRUCTIONS ........................5 Inspection of Shipment ............................5 Manual ................................... 5 Model Description ..............................5 Items Included with this Unit ..........................5 Setup ....................................5 Electrical Requirements ............................ -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 039_080614 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions
Designer Holding Cabinet Model Series: 5510, 5511, and 5512 INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). - Page 6 Designer Holding Cabinet Model Series: 5510, 5511, and 5512 4. Doorknobs are shipped facing the inside of machine. Re-adjust knobs to face the outside of machine. 5. Make sure air ducts are in place before installing racks, see Air Duct Installation instructions below.
-
Page 7: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 8: Operating Instructions
Designer Holding Cabinet Model Series: 5510, 5511, and 5512 OPERATING INSTRUCTIONS Controls and Their Functions LIGHTS SWITCH Two position, lighted rocker switch - provides power to the interior cabinet lighting and to the sign. The green light ON indicates there is power to the lights. -
Page 9: Adjusting The Set Temperature
Designer Holding Cabinet Model Series: 5510, 5511, and 5512 3. Allow unit to preheat to the set temperature while empty. 4. Load product as indicated below—do not over fill the unit or block the air ducts; allow air to circulate freely. -
Page 10: Care And Cleaning
SLIGHTLY dampened with soap and water, then wipe again to remove any remaining cleaner). 4. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage plastic doors/panels. Only use a non-ammonia cleaner, such as Gold Medal Watchdog Glass Cleaner (Item No. -
Page 11: Troubleshooting
Designer Holding Cabinet Model Series: 5510, 5511, and 5512 Troubleshooting Issue Possible Cause Solution Unit Does Not Heat A. No power to unit A. Check that the unit is plugged into the wall outlet. See Electrical Requirements section for electrical specifications. -
Page 12: The Following Sections Are For Qualified Service Personnel Only
Designer Holding Cabinet Model Series: 5510, 5511, and 5512 THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. -
Page 13: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 14: Replacing Broken Glass
Model Series: 5510, 5511, and 5512 Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) -
Page 15: Cabinet - Parts Breakdown
Designer Holding Cabinet Model Series: 5510, 5511, and 5512 Cabinet - Parts Breakdown Insulation 4, 5 Fasteners Hole Plug 6 Snap Bushing (on front corner post, not shown) See Dome / Sign section. Fastener for rack supports. For Glass, see... - Page 16 Designer Holding Cabinet Model Series: 5510, 5511, and 5512 Cabinet - Parts List Part Number Item Part Description 5510-00-100 5511-00-100 5512-00-100 DOME COVER 116450 116450 116618 SCREW #8-32X3/8 PAN HD PH 74141 74141 74141 INSULATION WRAP 116533 116533 116534 SCREW #8-32X1/2 PAN HD PH...
-
Page 17: Dome Interior - Parts Breakdown
Designer Holding Cabinet Model Series: 5510, 5511, and 5512 Dome Interior – Parts Breakdown 19, 20 8, 9 1, 9 gmpopcorn.com Page 17... - Page 18 Designer Holding Cabinet Model Series: 5510, 5511, and 5512 Dome Interior – Parts List Part Number Item Part Description 5510-00-100 5511-00-100 5512-00-100 8-32 X 1/2 PHIL PN M/S SS 42226 42226 42226 BLOWER BOX 116488 116488 116617 SCREW #8-32X3/8 PAN HD PH...
-
Page 19: Wiring Diagram
Designer Holding Cabinet Model Series: 5510, 5511, and 5512 Wiring Diagram gmpopcorn.com Page 19... -
Page 20: Warranty
© 2021 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
