Film-Tech
The information contained in this Adobe Acrobat pdf
file is provided at your own risk and good judgment.
These manuals are designed to facilitate the
exchange of information related to cinema
projection and film handling, with no warranties nor
obligations from the authors, for qualified field
service engineers.
If you are not a qualified technician, please make no
adjustments to anything you may read about in these
Adobe manual downloads.
www.film-tech.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gold Medal 2197NL
Summary of Contents for Gold Medal 2197NL
- Page 1 Film-Tech The information contained in this Adobe Acrobat pdf file is provided at your own risk and good judgment. These manuals are designed to facilitate the exchange of information related to cinema projection and film handling, with no warranties nor obligations from the authors, for qualified field service engineers.

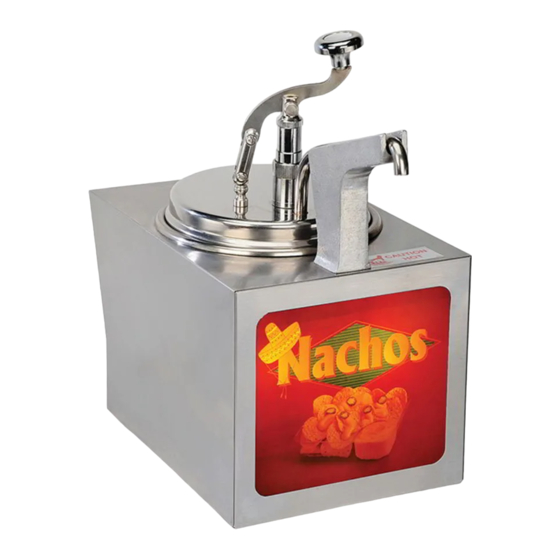

- Page 2 Lighted Nacho Part No. 38298 Revised June 1996 Cheese Warmer Pump with Instruction Manual Model #2197NL, #2197NR and #2197NS Cincinnati, OH 45214-2089 USA...
-
Page 3: Safety Precautions
Always unplug the equipment before cleaning or servicing. NOTE The information, specifications and illustrations contained in this manual represent the latest data available at time of publication. Right is reserved to make changes as required at the discretion of Gold Medal Products Company without notice. -
Page 4: Installation
6. Set control switch to "HI" setting. 7. Let cheese heat for 45 minutes (stirring every 15 minutes) before serving. Pump works best when cheese is hot. 8. Turn heat control switch to “OFF” position when unit is not in use. #2197NL, #2197NR #2197NS ODELS... -
Page 5: Care And Cleaning
15 to 20 strokes. 9. Disassemble plunger assembly from pump and remove retainer pin and check ball. Allow to air dry. Reassemble. 10. Remove plug and check ball from bottom of pump and wash by hand. #2197NL, #2197NR #2197NS ODELS... -
Page 6: Maintenance Instructions
3. Remove the four bumper feet that hold the bottom plate. 4. Unfasten the screw and two nuts to remove the heating element. 5. Disconnect wires from thermostat and or heat element 6. Replace worn or broken parts, re-wire per wiring diagram and reassemble. #2197NL, #2197NR #2197NS ODELS... -
Page 7: Ordering Spare Parts
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... -
Page 8: Pump Plunger Assembly
Lighted Nacho Cheese Warmer Pump with PUMP PLUNGER ASSEMBLY #2197NL, #2197NR #2197NS ODELS... -
Page 9: Cabinet Assembly
Lighted Nacho Cheese Warmer Pump with CABINET ASSEMBLY #2197NL, #2197NR #2197NS ODELS... -
Page 10: Parts List - Cabinet Assembly
38295 Insulation Bottom 1-18 40325 Switch, SPST 1-19 87194 Strain Relief 1-20 87247 Foot, Bumper 1-21 87500 Heated Spout Casting 1-22 38288 Socket, Z Bracket 1-23 75328 " Bushing 1-24 87049 Knob 1-25 38419 Control Panel #2197NL, #2197NR #2197NS ODELS... -
Page 11: Parts List - Pump Assembly
Check Ball 38262 Plunger Spring 38250 Check Ball 38262 Knob 2-10 38263 Spring Stop 2-11 38603 Plug Assembly 2-12 38265 Retainer Cup 2-13 38280 Knob Filler Washer 2-14 38287 Washer, SAE ¼" 2-15 82766 "O" Ring #2197NL, #2197NR #2197NS ODELS... -
Page 12: Electrical Schematic
Lighted Nacho Cheese Warmer Pump with ELECTRICAL SCHEMATIC #2197NL, #2197NR #2197NS ODELS... -
Page 13: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
