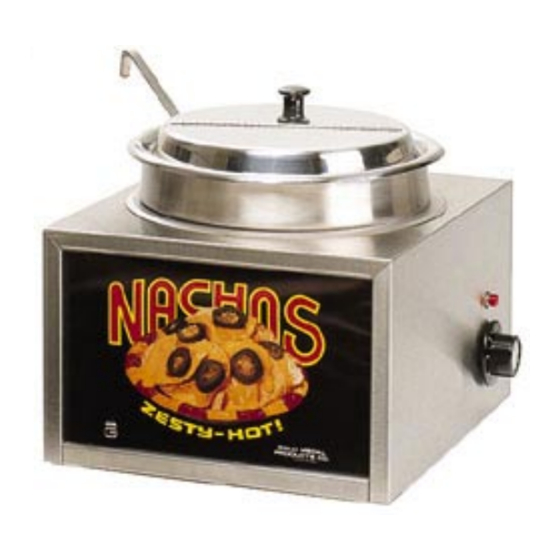

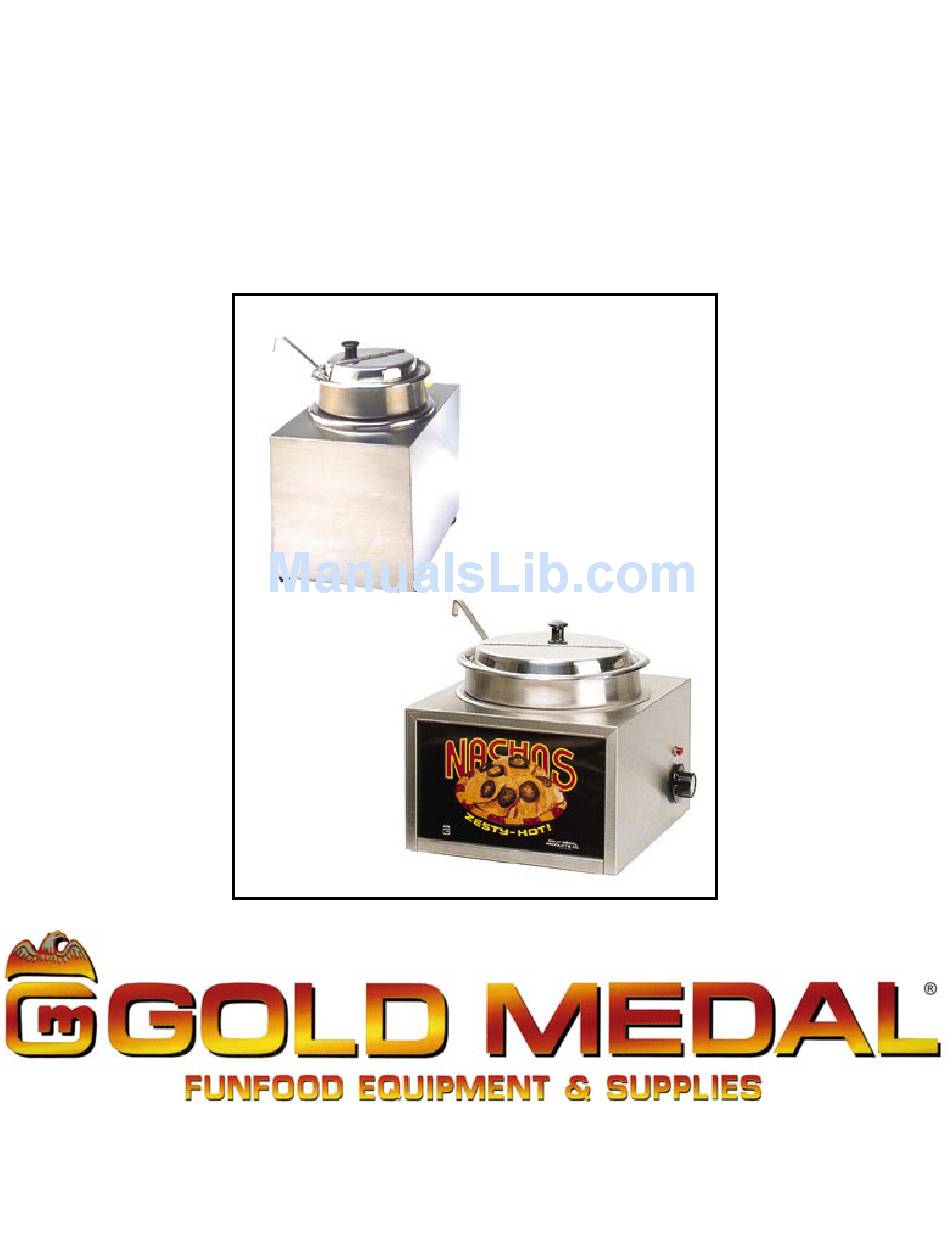

- Page 1 Condiment Warmer Part No. 38187 Revised June 1996 Instruction Manual Models #2252 & #2253 Model #2252 Model #2253 Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Always unplug the equipment before cleaning or servicing. NOTE The information, specifications and illustrations contained in this manual represent the latest data available at time of publication. Right is reserved to make changes as required at the discretion of Gold Medal Products Company without notice. -
Page 3: Installation
Your Condiment Warmer is 120 Volts, 1500 Watts, 60 Cycle and will draw a maximum of 12.5 Amps. A standard 15 Amp grounded wall receptacle would be sufficient. Machine must be properly grounded to prevent shock in case of electrical problems. #2252 #2253 ODELS... -
Page 4: Care And Cleaning
Clean your machine daily. A clean, well kept machine is one of the best ways of advertising your product. Use a mild soap and damp cloth to clean the exterior of the unit. All utensils and insert bowls should be cleaned with a chlorine or iodine type sanitizer to help prevent contamination of microorganisms. #2252 #2253 ODELS... -
Page 5: Maintenance Instructions
3. Remove the nine screws that hold the bottom plate. 4. Remove the two bolts holding the heat/thermostat cover. 5. Diconnect wires from thermostat and or heat element 6. Replace worn or broken parts, rewire per wiring diagram and reassemble. #2252 #2253 ODELS... -
Page 6: Ordering Spare Parts
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... - Page 7 Condiment Warmers 11 QUART WARMER ASSEMBLY #2252 #2253 ODELS...
- Page 8 Bottom Plate PARTS NOT SHOWN 38221 Blanket Insulation 38188 Bottom Insulation 38202 Front Panel S.S. (Model #2252 Only) ACCESSORY PARTS NOT INCLUDED WITH MACHINES 2255 11 Quart Warmer Accessory Kit Includes 38197 Hinged Cover, 11 Quart 38198 11 Quart Food Container 38015 2 Oz.
-
Page 9: Electrical Schematic
Condiment Warmers ELECTRICAL SCHEMATIC #2252 ODEL #2252 #2253 ODELS... - Page 10 Condiment Warmers ELECTRICAL SCHEMATIC #2253 L ODEL IGHTED #2252 #2253 ODELS...
-
Page 11: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
