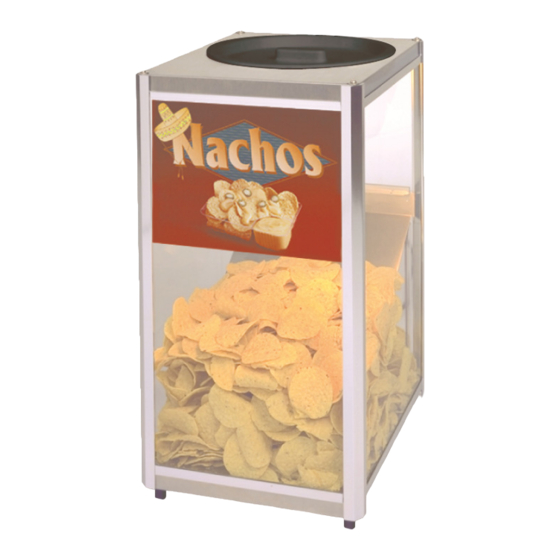

- Page 1 Instruction Manual Deluxe Serv-A-Lot Model No. 2186ST, 2188ST 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2013 Gold Medal Products Co. Part No. 110020...
-
Page 2: Safety Precautions
Deluxe Serv-A-Lot Model No. 2186ST, 2188ST SAFETY PRECAUTIONS gmpopcorn.com Page 2... -
Page 3: Installation Instructions
Deluxe Serv-A-Lot Model No. 2186ST, 2188ST INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control. -
Page 4: Electrical Requirements
Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 5: Controls And Their Functions
Deluxe Serv-A-Lot Model No. 2186ST, 2188ST OPERATING INSTRUCTIONS Controls and Their Functions ON/OFF SWITCH Turns the unit ON or OFF; supplies power to the light and to the heat element. The heat element on the underside of the warmer pan keeps the popcorn/nachos warm and fresh in the cabinet. -
Page 6: Care And Cleaning
3. Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. -
Page 7: Maintenance Instructions
Deluxe Serv-A-Lot Model No. 2186ST, 2188ST MAINTENANCE INSTRUCTIONS DANGER Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury or death. Read the installation, Operating, and Maintenance Instructions thoroughly before installing or servicing this equipment. DANGER Do Not immerse the equipment in water. Unplug your machine before servicing. -
Page 8: Ordering Spare Parts
Deluxe Serv-A-Lot Model No. 2186ST, 2188ST ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. 2. When ordering, please include part number, part name, and quantity needed. 3. Please include your model number, serial number, and date of manufacture (located on the machine nameplate) with your order. -
Page 9: Cabinet Exterior
Deluxe Serv-A-Lot Model No. 2186ST, 2188ST Cabinet Exterior 10, 11 Part Number Item Part Description Qty. 2186ST 2188ST BLACK LID 40361 40361 10 15/16” X 8 17/64” PLEXIGLAS PANEL 40016 40016 RETAINING EXTRUSION 40039 40039 MAGNETIC CATCH 47561 47561 BAFFLE... -
Page 10: Cabinet Interior
Deluxe Serv-A-Lot Model No. 2186ST, 2188ST Cabinet Interior View under Warmer Pan Part Number Item Part Description Qty. 2186ST 2188ST YELLOW LIGHT BULB (shatterproof bulb) 11035 11035 .312” SNAP BUSHING 75328 75328 LIGHT SUPPORT CHANEL 40011 40011 LAMP HOLDER GASKET... - Page 11 Deluxe Serv-A-Lot Model No. 2186ST, 2188ST Accessories Part Number Item Part Description Qty. 2186ST 2188ST STAMPED ALUMINUM SCOOP 2071 2071 DECAL (NACHOS) 40044 POPCORN BOWL DECAL 40053 gmpopcorn.com Page 11...
-
Page 12: Wiring Diagram
Deluxe Serv-A-Lot Model No. 2186ST, 2188ST WIRING DIAGRAM Model No. 2186ST, 2188ST gmpopcorn.com Page 12... - Page 13 © 2013 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
