Summary of Contents for Gold Medal 2197NS

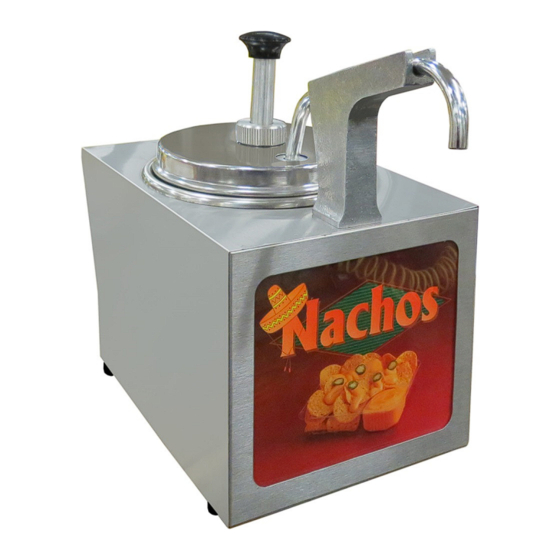

- Page 1 Instruction Manual Cheese Warmer with Pump Model No. 2197NS 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2018 Gold Medal Products Co. Part No. 38298...
-
Page 2: Table Of Contents
Cheese Warmer with Pump Model No. 2197NS Table of Contents SAFETY PRECAUTIONS ..........................3 INSTALLATION INSTRUCTIONS ......................5 Inspection of Shipment ..............................5 Manual ....................................5 Model Description ................................5 Items Included with this Unit..........................5 Setup ....................................5 Electrical Requirements ............................6 Before You Plug In Machine .............................6 OPERATING INSTRUCTIONS ........................ -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions
2. Place unit on a sturdy, level base for use. 3. The unit is designed to use a standard No. 10 tin that your product came in as the insert Bowl. An optional stainless steel insert bowl is available, Gold Medal Part No. 2238 (sold separately). -
Page 6: Electrical Requirements
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 gmpopcorn.com... -
Page 7: Operating Instructions
Cheese Warmer with Pump Model No. 2197NS OPERATING INSTRUCTIONS Controls and Their Functions POWER SWITCH Two position rocker switch - supplies power to the well and spout heat elements, and to the lighted sign. HEAT CONTROL KNOB The Heat Control adjusts the temperature of the well heat element. - Page 8 Cheese Warmer with Pump Model No. 2197NS 3. Fill water well with 5 cups (1,18 L) of water (starting with hot water helps shorten warming time). DO NOT operate the warmer without water in the well. 4. Turn the Power Switch ON.
-
Page 9: Cheese Pump Assembly
Cheese Warmer with Pump Model No. 2197NS Cheese Pump Assembly Cheese Pump Assembly Steps Knob Knob Filler Washer Step 1: Assemble plunger components in the order shown. See Guide Washer Retainer Cup note for installing in correct orientation. Retainer Step 2: Place check ball into pump... -
Page 10: Care And Cleaning
7. Rinse all parts with clean hot water. 8. Using a bucket, sanitize all parts with sanitizing solution, Gold Medal’s Chlor-Tech (Item No. 1109) is recommended. 9. Reassemble the pump and place the lower end into sanitizing solution. Pump sanitizing solution through the pump, and out of the container for a minimum of 15 to 20 strokes. -
Page 11: Cleaning The Unit
Model No. 2197NS 10. Disassemble pump components and allow them to air dry. 11. Once dry, reassemble the plunger components and apply Petro Gel (Gold Medal Item No. 1110) or a food safe lubricant, to the plunger assembly/o-rings before inserting into the pump body. -
Page 12: Maintenance Instructions
Cheese Warmer with Pump Model No. 2197NS MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 13: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 14: Cabinet Exterior - Front And Rear View
Cheese Warmer with Pump Model No. 2197NS Cabinet Exterior – Front and Rear View See Cheese Pump Assembly Section for itemized parts breakdown. 3, 4 10 11 Cabinet Exterior Rear View – Controls Part Number Item Part Description 2197NS CHEESE PUMP ASSEMBLY... -
Page 15: Cabinet Bottom View
Cheese Warmer with Pump Model No. 2197NS Cabinet Bottom View 1, 2 Part Number Item Part Description 2197NS RUBBER BUMPER/FOOT 87247 8-32 SERRATED FLANGE NUT 61151 BOTTOM COVER 38423 RETAINING ANGLE 38297 INSULATION BOTTOM 38295 #8-32 TINNERMAN FASTENER 47300 gmpopcorn.com... -
Page 16: Cabinet Interior
Cheese Warmer with Pump Model No. 2197NS Cabinet Interior General images shown for parts reference only. Part Number Item Part Description 2197NS THERMOSTAT, 210F 38227 WELL ASSEMBLY 38275 ELEMENT, 120V, 300W 38279 INSULATION WRAP 38294 LIGHT BAFFLE 38272 BUSHING, SNAP .312 IN... -
Page 17: Cheese Pump Assembly (Part No. 106039) - Parts Breakdown
Cheese Warmer with Pump Model No. 2197NS Cheese Pump Assembly (Part No. 106039) – Parts Breakdown Complete Pump Assembly does not include Cover Lid Install Guide Washer with tapered edge going DOWN. This washer does not work with previous pump models. -
Page 18: Accessories
Cheese Warmer with Pump Model No. 2197NS Cheese Pump Assembly (Part No. 106039) – Parts List Item Part Description Part Number TANK COVER (Lid not included with the pump 38269 assembly) CHEESE PUMP ASSEMBLY (Complete assembly 106039 includes itemized parts listed below.) -
Page 19: Wiring Diagram
Cheese Warmer with Pump Model No. 2197NS Wiring Diagram Model No. 2197NS gmpopcorn.com Page 19... -
Page 20: Warranty
© 2018 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
