OWNER'S MANUAL
CT126 Portable Dust Collector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT126 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Craftex CT126

Summary of Contents for Craftex CT126

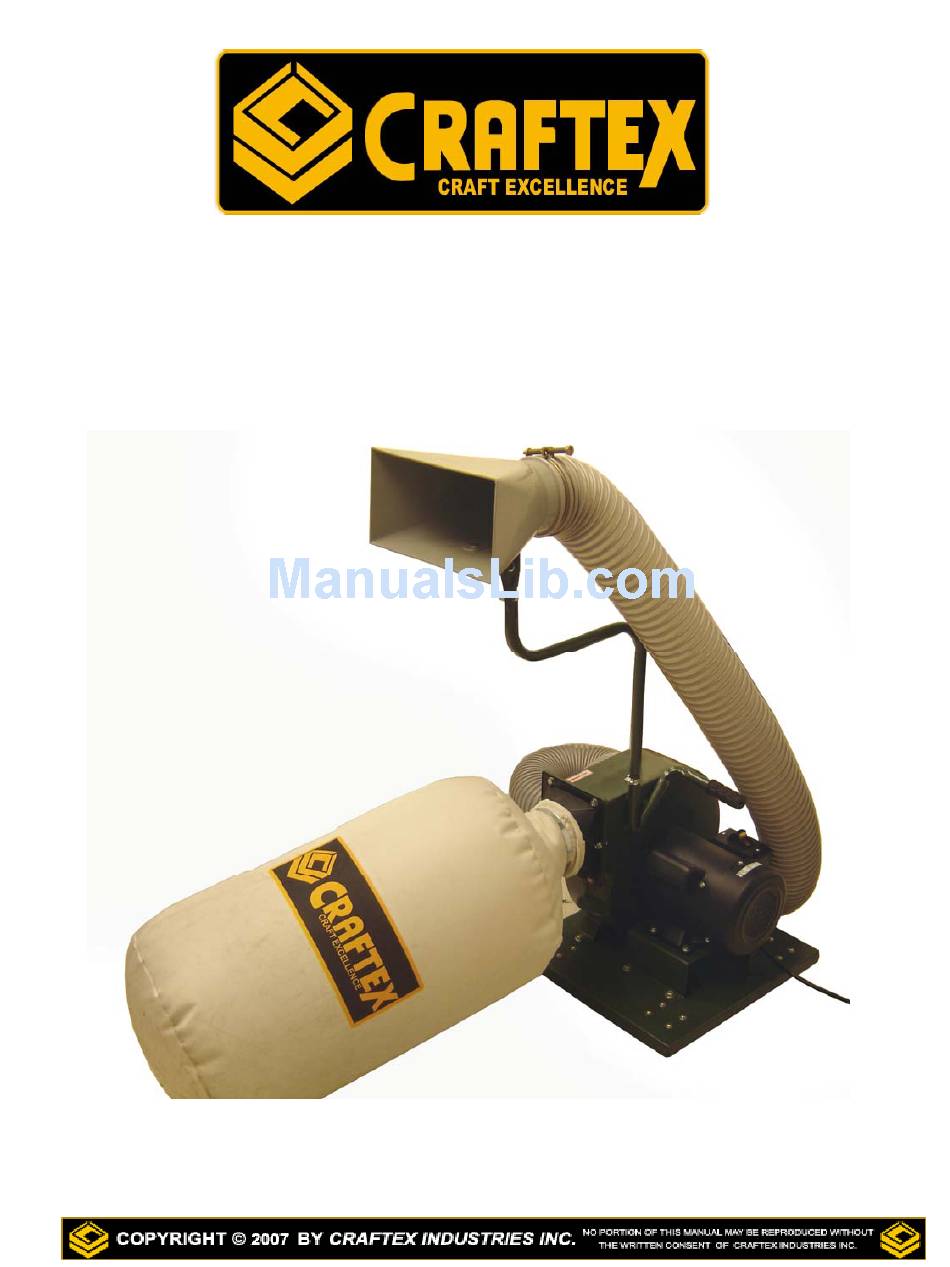

  • Page 1 OWNER’S MANUAL CT126 Portable Dust Collector...

  • Page 2: Table Of Contents

    CT126 PORTABLE DUST COLLECTOR INDEX General Safety Page 3 Safety Rules for Dust Collectors Page 4 Grounding Instructions Page 5 Features Page 6 Assembly Casters Page 7 Dust Collector Bag Page 7 Flexible Hose to Inlet Page 8 Dust Hood, Arm Assembly, & Flex Hose Page 8 On &...

  • Page 3: General Safety

    GENERAL SAFETY INSTRUCTIONS EXTREME CAUTION SHOULD BE USED IN OPERATING ALL POWER TOOLS. KNOW YOUR POWER TOOL, BE FAMILIAR WITH ITS OPERATION. READ THE OWNER’S MANUAL AND PRACTICE SAFE USAGE PROCEDURES AT ALL TIMES. CONNECT your machine ONLY to the matched and specified power source. ...

  • Page 4: Safety Rules For Dust Collectors

    IMPORTANT SAFETY RULES FOR DUST COLLECTORS WARNING: Basic precautions should always be followed when using your dust collector. To reduce the risk of injury, electrical shock or fire, comply with the safety rules listed below. 1. READ and understand the instruction manual before operating the dust collector.

  • Page 5: Grounding Instructions

    GROUNDING INSTRUCTIONS This appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having equipment- ground conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

  • Page 6: Features

    CT126 Portable Dust Collector Features As part of the growing line of Craftex woodworking equipment, we are proud to offer the CT126 Portable Dust Collector. The Craftex name guarantees Craft Excellence. By following the instructions and procedures laid out in this owner’s manual, you will receive years of excellent service and satisfaction.

  • Page 7: Assembly

    CT126 Portable Dust Collector Assembly Installing Wheel Casters To install the four wheel casters (1) to the underside of the base (2) follow these instructions. A. Line up the wheel caster mounting holes with the corresponding holes in the base.

  • Page 8: Flexible Hose To Inlet

    CT126 Portable Dust Collector Assembly Assemble The Flexible Hose to Inlet Place hose clamp (2) over hose (1) and slide hose over the inlet. Fix hose to inlet by tightening hose clamp screw (3). Fig. 3 Fig. 3 Dust Hood, Arm Assembly and Flex Hose A.

  • Page 9: On & Off Switch

    CT126 Portable Dust Collector Assembly Dust Collector On & Off A. To turn dust collector on or off flip the switch (1) to the desired position. B. There is a removable safety key (2) in the tip of the switch that can be removed when in the off position.

  • Page 10: Useful Notes

    Useful Notes Wood dust can be very dangerous is one is exposed to it very often. As dust collection had gained popularity over the years, so has consumer knowledge about this concern, but it is always good to know just how dangerous wood dust can be if overexposure and or unsafe woodworking practice takes place.

  • Page 11: Parts List

    CT126 Portable Dust Collector Parts List Part Order Description 6811050010 Caster Wheel 6811050020 Pan Head Screw 2 – 1 6811050021 Hex. Nut 6811050030 Spring Washer 6811050040 Base 6811050050 Pan Head Screw 6811050060 Inlet Cover 6811050070 Left Hand Cap Screw 6811050080...

  • Page 12: Parts List Con't

    CT126 Portable Dust Collector Parts List Con’t. Part Order # Description 6811050310 Lock Handle 31 - 1 6811050311 Washer 6811050320 Carriage Bolt 32 – 1 6811050321 Washer 6811050330 Dust Hood Bracket 6811050340 Hex. Nut 6811050350 Dust Hood 6811050360 Hose Wire Clamp 6811050370 4”...

  • Page 13: Schematic

    CT126 Portable Dust Collector Schematic...

  • Page 14: Warranty

    CRAFTEX 3 YEAR LIMITED WARRANTY Craftex warrants every product to be free from defects in materials and agrees to correct such defects where applicable. This warranty covers three years for parts and 90 days for labour (unless specified otherwise), to the original purchaser from the date of purchase but does not apply to malfunctions arising directly or indirectly from misuse, abuse, improper installation or assembly, negligence, accidents, repairs or alterations or lack of maintenance.
