Summary of Contents for Craftex CX405

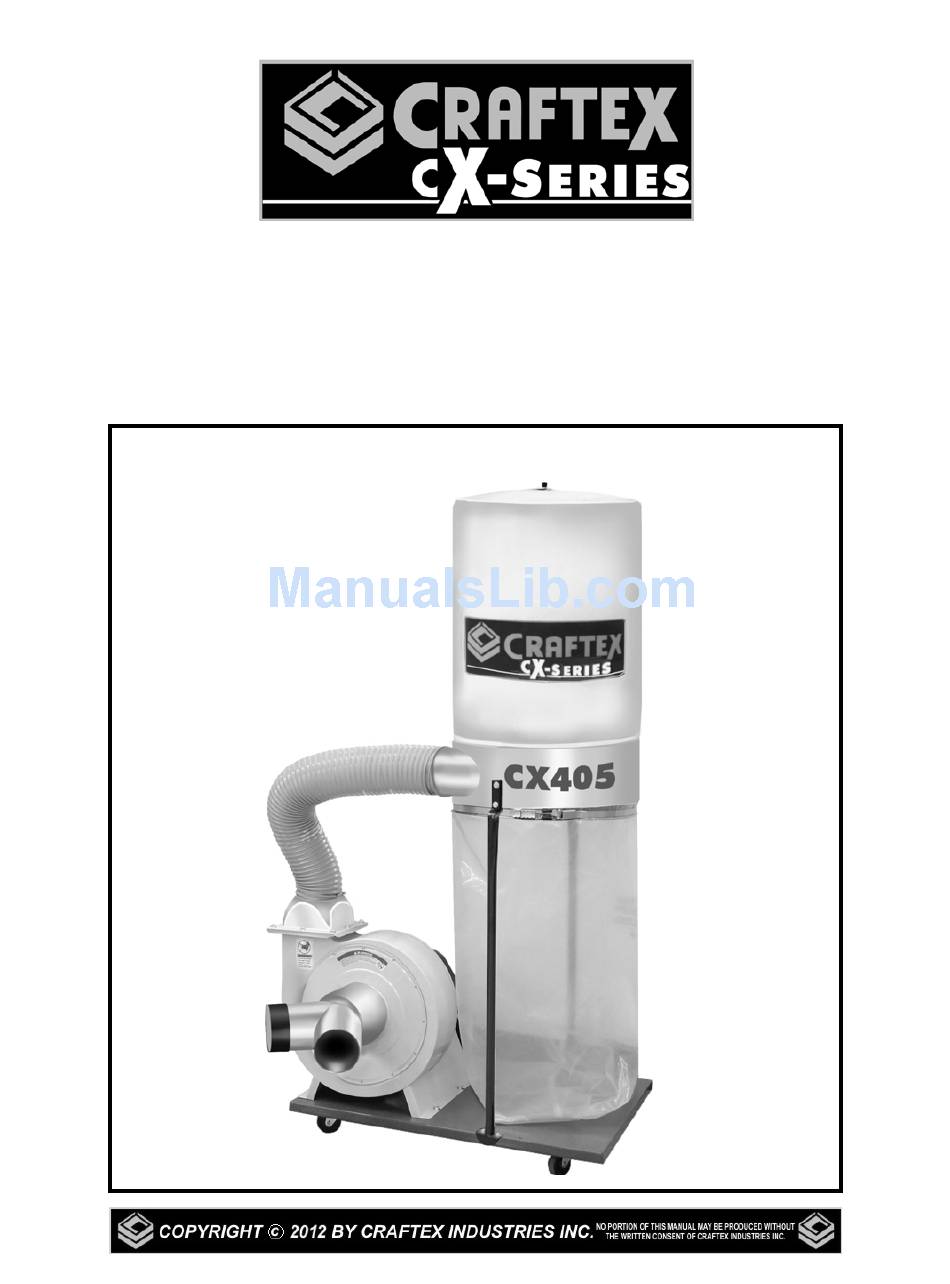

- Page 1 CX405 2-HP DUST COLLECTOR User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Safety Instructions.............3 CX405 Specific Safety Instructions ..........4 Features..................5 Physical Features ................6 Unpacking..................7 Setup ....................7 Proper Grounding ................8 Assembly ..................9 Test Run ..................11 Operation ..................12 Maintenance ...................12 Bag Cleaning ..................12 Cleaning the Canister ..............12 Lubrication ..................12 Parts Breakdown ................13 Parts List..................14... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Extreme caution should be used when operating all power tools. Know your power tool, be familiar with its operation, read through the owner’s manual and practice safe usage procedures at all times. CONNECT your machine only to the DISCONNECT the machine from the matched and specific power source. -
Page 4: Cx405 Specific Safety Instructions
CX405 – 2 HP DUST COLLECTOR SPECIFIC SAFETY INSTRUCTIONS Read and understand the instruction manual before operating the dust collector. Basic precautions listed below should always be followed when using your dust collector to reduce the risk of injury, electrical shock or fire. -
Page 5: Features
CX405 a 2-HP Dust Collector. By following the instructions and procedures laid out in this owner’s manual, you will receive years of excellent service and satisfaction. The CX405 is a professional tool and like all power tools, proper care and safety procedures should be adhered to. -
Page 6: Physical Features
CX405 - 2-HP DUST COLLECTOR PHYSICAL FEATURES Top Bag Support 1 Micron Filtration 2-HP 220-V Motor Collector Ring Collector Hose Collector Ring Support Dual Intake 4” Each Easy-On Collection Bag Casters Base... -
Page 7: Unpacking
The CX405 features four casters installed to its base unit for easy mobility. If you want to use the CX405 as a stationary tool, do not install the casters and find an ideal spot where your dust collector will most likely be positioned. -
Page 8: Proper Grounding
Improper connection of the equipment- grounding conductor can result in a risk CX405 is for use on a normal 220 volt of electric shock. Check with a qualified circuit. Make sure that the machine is electrician if you are in doubt as to connected to an outlet having the same whether the outlet is properly grounded. -
Page 9: Assembly
Place the gasket on the motor / impeller ASSEMBLY opening as shown in figure-5. Follow the instructions below to assemble your CX405. Gasket Place the base unit upside down and install the swivel casters to the base unit using screws, nuts and washers provided. See figure-3. - Page 10 Use the hose clamps provided to secure the hose on both ends. Figure-7 Installing the collector ring support Attach the collector ring to the collector ring supports and the upper bag support to the collector ring as shown in figure-8. Make sure that the hose opening of the collector ring is facing the motor / impeller.
-
Page 11: Test Run
Your dust collector should come with a TEST RUN regular bottom bag as well as a set of Easy- On bags. Once you have assembled your dust collector, it is then time for a test run to Insert the belt clamp through the Easy-On make sure that the machine works properly bottom bag and attach the bottom bag to and is ready to use. -
Page 12: Operation
The tiny dust particles in the air can be assembled and worked during the test run. inhaled easily and is very injurious to Move the CX405 close to the machine and health. use a proper sized hose connecting the... -
Page 13: Parts Breakdown
CX405 DUST COLLECTOR PARTS BREAKDOWN... -
Page 14: Parts List
CX405 DUST COLLECTOR PARTS LIST PART# DESCRIPTION SIZE Caster Hex Head Screw 5/16 x 1/2" Base Plate Pan Head Screw 10 – 24 x 3/8” Intake Cover Socket Head Hex Screw 1.0 x 19mm Hex Head Screw 3/8 x 1/2"... -
Page 15: Warranty
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches etceteras. Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or for incidental contingent, special or consequential damages arising from the use of our products.
