Summary of Contents for Craftex CX404

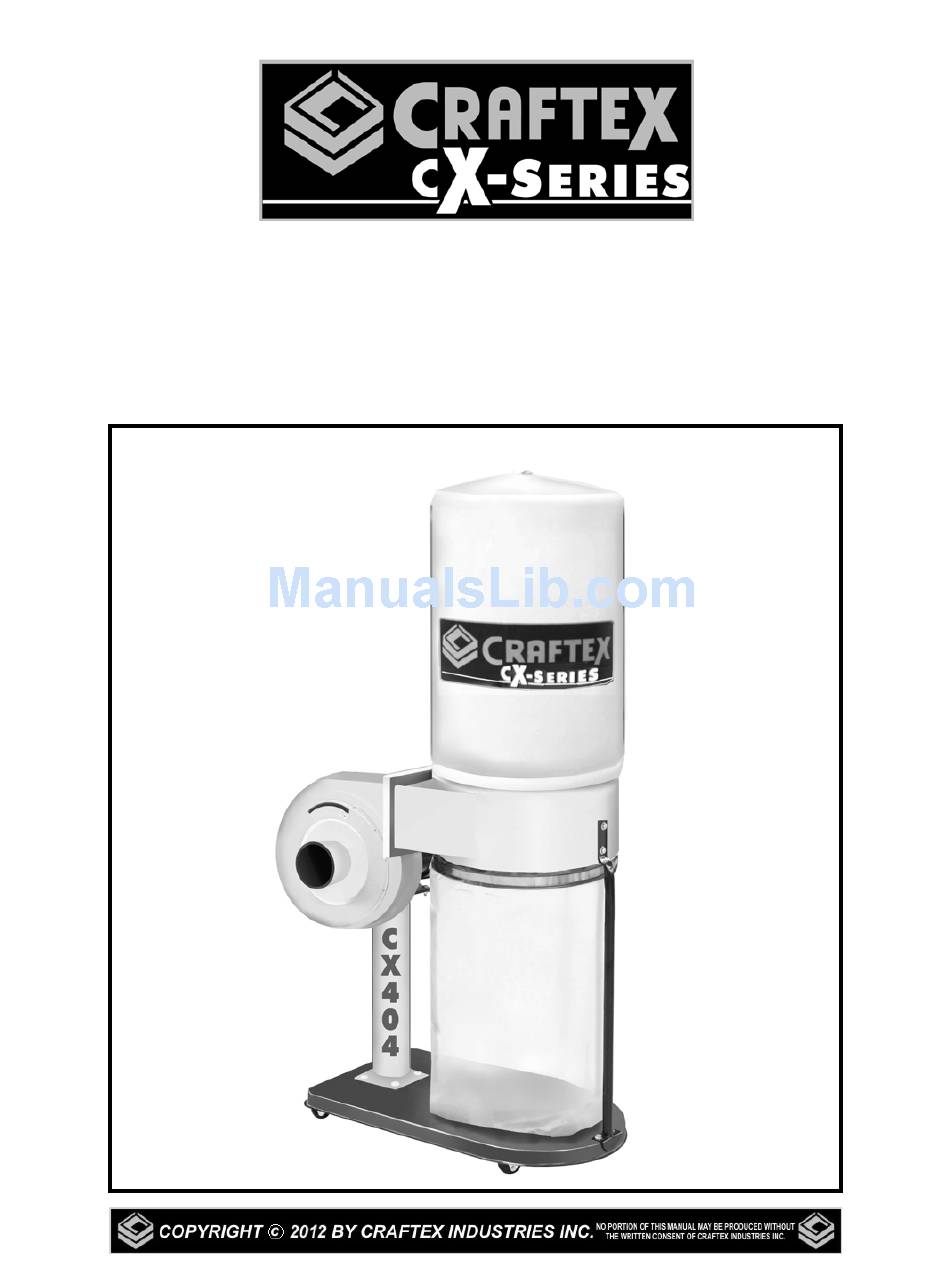

- Page 1 CX404 1-HP DUST COLLECTOR User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Safety Instructions.............3 CX404 Specific Safety Instructions ..........4 Features..................5 Physical Features ................6 Unpacking..................7 Setup ....................7 Proper Grounding ................8 Assembly ..................9 Test Run ..................11 Operation ..................11 Maintenance ...................12 Bag Cleaning ..................12 Cleaning the Canister ..............12 Lubrication ..................12 Parts Breakdown ................13 Parts List..................14... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Extreme caution should be used when operating all power tools. Know your power tool, be familiar with its operation, read through the owner’s manual and practice safe usage procedures at all times. CONNECT your machine only to the DISCONNECT the machine from the matched and specific power source. -
Page 4: Cx404 Specific Safety Instructions
CX404 – 1 HP DUST COLLECTOR SPECIFIC SAFETY INSTRUCTIONS Read and understand the instruction manual before operating the dust collector. Basic precautions listed below should always be followed when using your dust collector to reduce the risk of injury, electrical shock or fire. -
Page 5: Features
CX404 a 1-HP Dust Collector. By following the instructions and procedures laid out in this owner’s manual, you will receive years of excellent service and satisfaction. The CX404 is a professional tool and like all power tools, proper care and safety procedures should be adhered to. -
Page 6: Physical Features
CX404 - 1 HP DUST COLLECTOR PHYSICAL FEATURES Collector 1 Micron Body Filtration Outlet Connector Collector Ring Support Rod Impeller Assembly Easy-On Support Collection Bag Casters Base... -
Page 7: Unpacking
The CX404 features four casters installed to its base unit for easy mobility. If you want to use the CX404 as a stationary tool, do not install the casters and find an ideal spot where your dust collector will most likely be positioned. -
Page 8: Proper Grounding
Improper connection of the equipment- grounding conductor can result in a risk CX404 is for use on a normal 110 volt of electric shock. Check with a qualified circuit. Make sure that the machine is electrician if you are in doubt as to connected to an outlet having the same whether the outlet is properly grounded. -
Page 9: Assembly
Follow the instructions below to assemble rounded end of the base unit. Secure the your CX404. motor and impeller assembly using nuts, washers and bolts provided. See figure-5. Place the base unit upside down and install the swivel casters to the base unit using screws and washers provided. - Page 10 Figure-9 Installing the upper bag Figure-7 Installing the collector ring Your dust collector should come with a Install the collector ring support rod with regular bottom bag as well as a set of Easy- one end collector ring and the other end to On bags.
-
Page 11: Test Run
Remove all the tools used for assembling the machine components. Walk around the Move the CX404 close to the machine and machine, ensure all nuts, bolts, and screws use a proper sized hose connecting the... -
Page 12: Maintenance
The tiny dust particles in the air can be inhaled easily and is very injurious to health. Since the CX404 is comes with Easy-On collection bag, you do not have to remove the clamp from the collection bag. Simply Un-clamp the bag and empty it. -
Page 13: Parts Breakdown
CX404 DUST COLLECTOR PARTS BREAKDOWN... -
Page 14: Parts List
CX404 DUST COLLECTOR PARTS LIST REF# DESCRIPTION SIZE Caster Pan Head Screw 3/16” x 5/16” Base Plate Pan Head Screw 3/16” x 3/8” Inlet Cover Hex Screw M6 x 20 Set Screw 5/16” x 5/16” Washer Turbo Fan Collector Body Washer 5/16”... -
Page 15: Warranty
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches etceteras. Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or for incidental contingent, special or consequential damages arising from the use of our products.
