MODEL CX414
PORTABLE DUST COLLECTOR
USER MANUAL
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CX414 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Craftex CX414

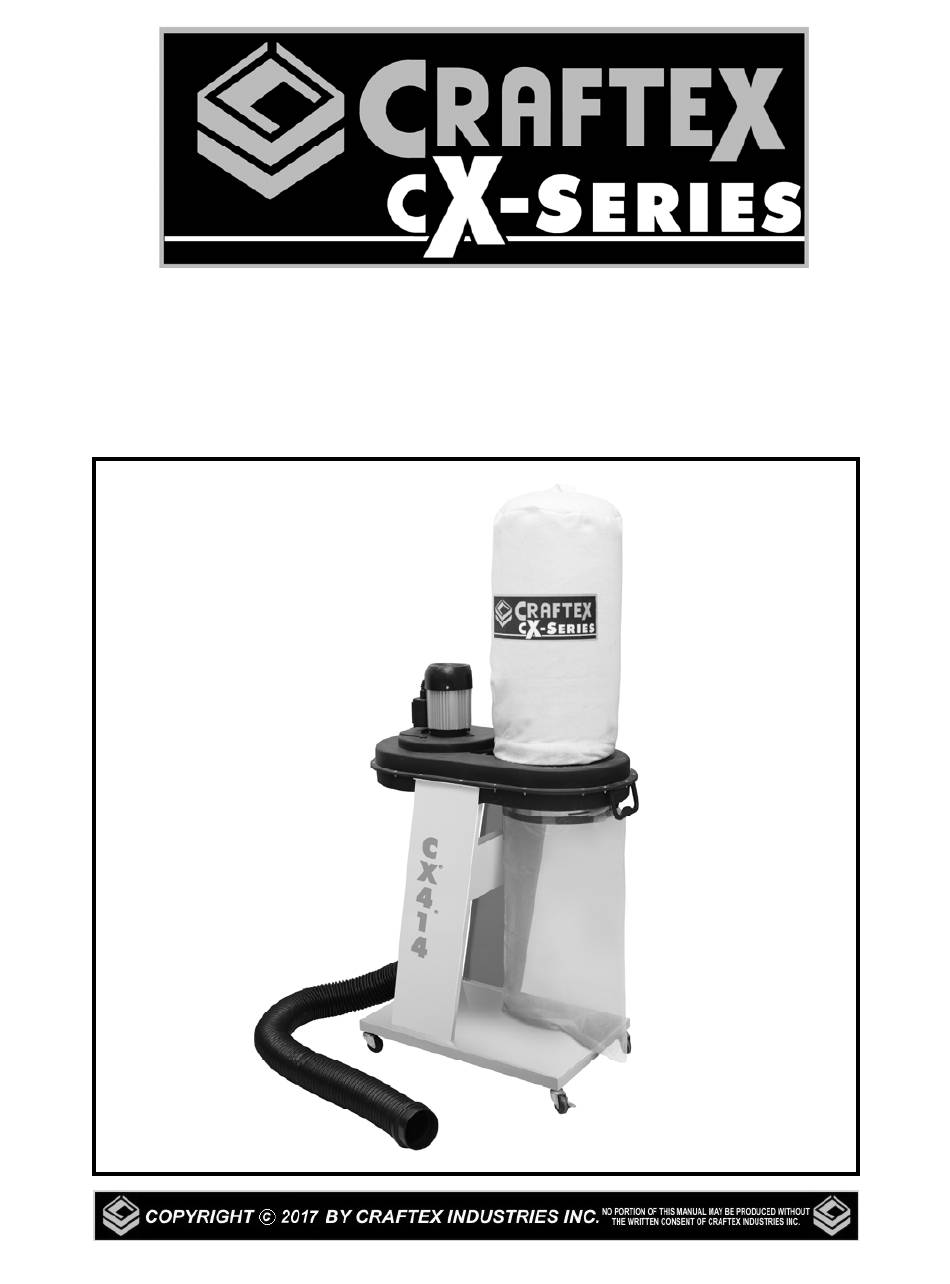

  • Page 1 MODEL CX414 PORTABLE DUST COLLECTOR USER MANUAL Version 1.0...
  • Page 2: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS Extreme caution should be used when operating all power tools. Know your power tool, be familiar with its operation, read through the owner’s manual and practice safe usage procedures at all times. CONNECT your machine only to the DISCONNECT the machine from the matched and specific power source.
  • Page 3 Read and understand the instruction manual before operating the dust collector. Basic precautions listed below should always be followed when using your dust collector to reduce the risk of injury, electrical shock or fire. The CX414 is designed to collect NEVER operate the dust collector with sawdust only.
  • Page 4 CX414 a Portable Dust Collector. By following the instructions and procedures laid out in this owner’s manual, you will receive years of excellent service and satisfaction. The CX414 is a professional tool and like all power tools, proper care and safety procedures should be adhered to.
  • Page 5: Physical Features

    PHYSICAL FEATURES 1 Micron Filtration 1.2 HP Motor Collector Body Collector Ring Collector Ring Support Panel Collection Bag Castors Hose Base...
  • Page 6 If you want to While doing the inventory if you can not find use the CX414 as a stationary tool, do not any part, check if the part is already install the casters and find an ideal spot installed on the machine.
  • Page 7: Proper Grounding

    CX414 is for use on a normal 110 volt circuit. Make sure that the machine is In case if you really find it necessary to use...
  • Page 8 Follow the instructions below to assemble nuts. your CX414. Place fan housing (7) with the motor facing down, on a workbench or similar stable support and set it level with a block of wood or similar.
  • Page 9 Place the bottom panel upside down on to collector onto the ring and secure it using the side panels and secure it using the the bottom bag clamp. See figure-8. carriage bolts and hex flange nuts provided. Make sure all the screws and nuts are tightened properly and position the machine upright with castors on the floor.
  • Page 10: Operation

    Remove all the tools used for assembling the machine components. Walk around the Move the CX414 close to the machine and machine, ensure all nuts, bolts, and screws use a proper sized hose connecting the...
  • Page 11: Maintenance

    The machine will run more efficiently if the collecting bag is emptied regularly. LUBRICATION REPLACING COLLECTION CX414 comes equipped with shielded bearings which are permanently lubricated. So, there is not need to lubricate them. Disconnect machine from power. WARNING!
  • Page 12: Parts Breakdown

    PARTS BREAKDOWN...
  • Page 13: Parts List

    PARTS LIST...
  • Page 14 This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches etceteras. Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or for incidental contingent, special or consequential damages arising from the use of our products.
