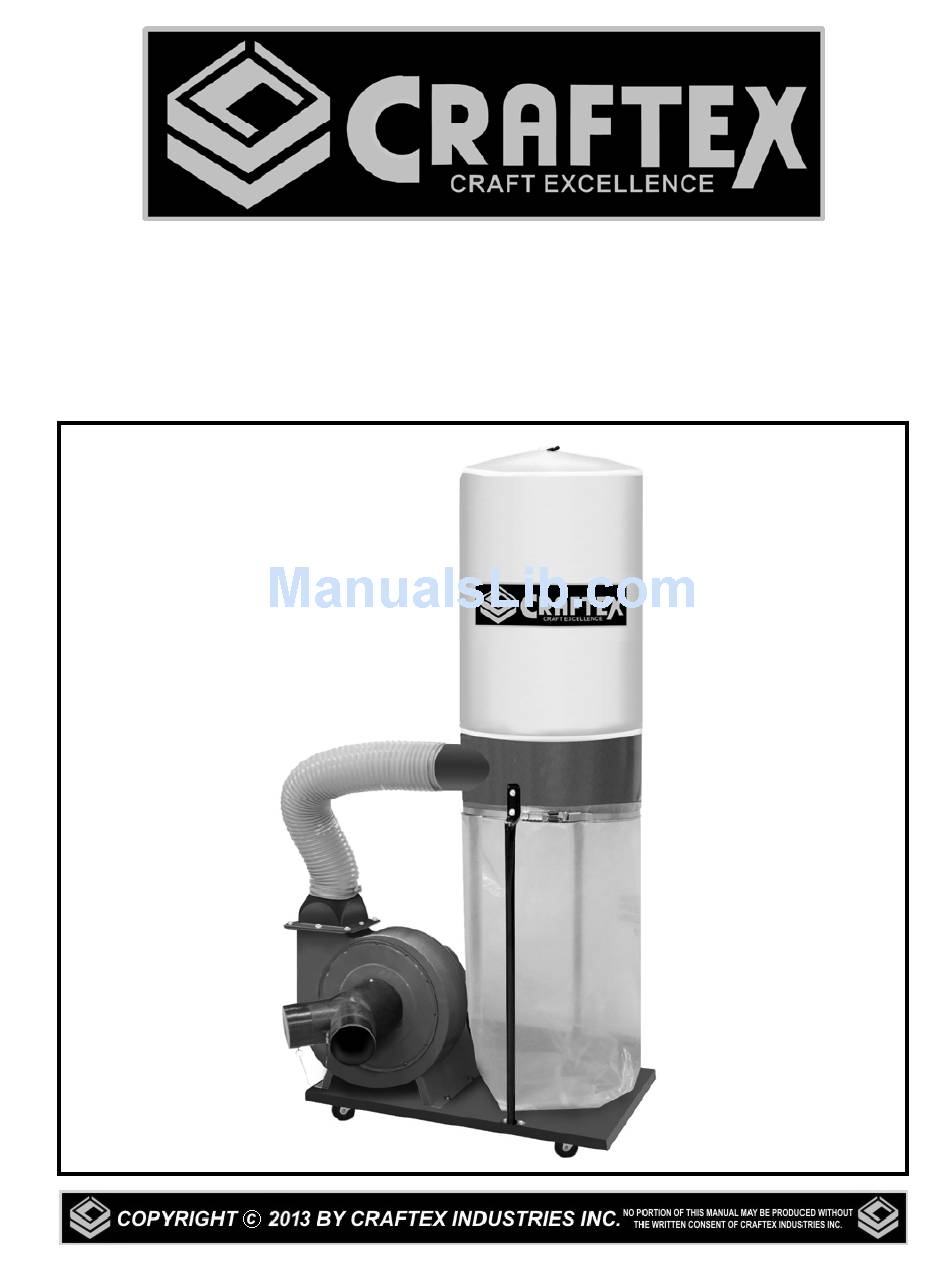

- Page 1 MODEL CT186 2HP DUST COLLECTOR...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Safety Instructions..............3 CT186 Specific Safety Instructions ............4 Features....................5 Physical Features ................... 6 Unpacking ....................7 Setup ...................... 7 Proper Grounding ................... 8 Assembly ....................9 Test Run ....................11 Operation ....................12 Maintenance ...................12 Bag Cleaning ..................12 Cleaning the Canister ................12... -
Page 5: Features
FEATURES MODEL CT186 – 2 HP DUST COLLECTOR As part of the growing line of Craftex woodworking equipment, we are proud to offer the CT186 a 2-HP Dust Collector. By following the instructions and procedures laid out in this owner’s manual, you will receive years of excellent service and satisfaction. -
Page 6: Physical Features
CT186 - 2-HP DUST COLLECTOR PHYSICAL FEATURES Top Bag Support 1 Micron Filtration Bag 2 HP Motor Collector Ring Bag Clamp Outlet Connector Hose Collection Bag 2-Port Inlet Collector Connector Support Rod Base Casters... -
Page 7: Unpacking
The CT186 features four casters installed to its base unit for easy mobility. If you want to use the CT186 as a stationary tool, do not install the casters and find an ideal spot where your dust collector will most likely be positioned. -
Page 9: Proper Grounding
Improper connection of the equipment- grounding conductor can result in a risk CT186 is for use on a normal 220 volt of electric shock. Check with a qualified circuit. Make sure that the machine is electrician if you are in doubt as to connected to an outlet having the same whether the outlet is properly grounded. -
Page 10: Assembly
Place the gasket on the motor / impeller ASSEMBLY opening as shown in figure-5. Follow the instructions below to assemble your CT186. Place the base unit upside down and install the swivel casters to the base unit using screws, nuts and washers provided. See figure-3. - Page 11 Figure-7 Installing the collector ring support Attach the collector ring to the collector ring supports and the upper bag support to the collector ring as shown in figure-8. Make sure that the hose opening of the collector ring is facing the motor / impeller. Figure-9 Connecting the hose from the Secure the collector ring from both sides outlet connector to the collector ring...
-
Page 12: Test Run
Install the collection bag to the bottom of TEST RUN the collector ring and secure it by tightening the collection bag clamp around it as shown Once you have assembled your dust in figure-11. collector, it is then time for a test run to make sure that the machine works properly and is ready to use. -
Page 13: Operation
The tiny dust particles in the air can be assembled and worked during the test run. inhaled easily and is very injurious to Move the CT186 close to the machine and health. use a proper sized hose connecting the... -
Page 17: Warranty
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches etceteras. Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or for incidental contingent, special or consequential damages arising from the use of our products.
