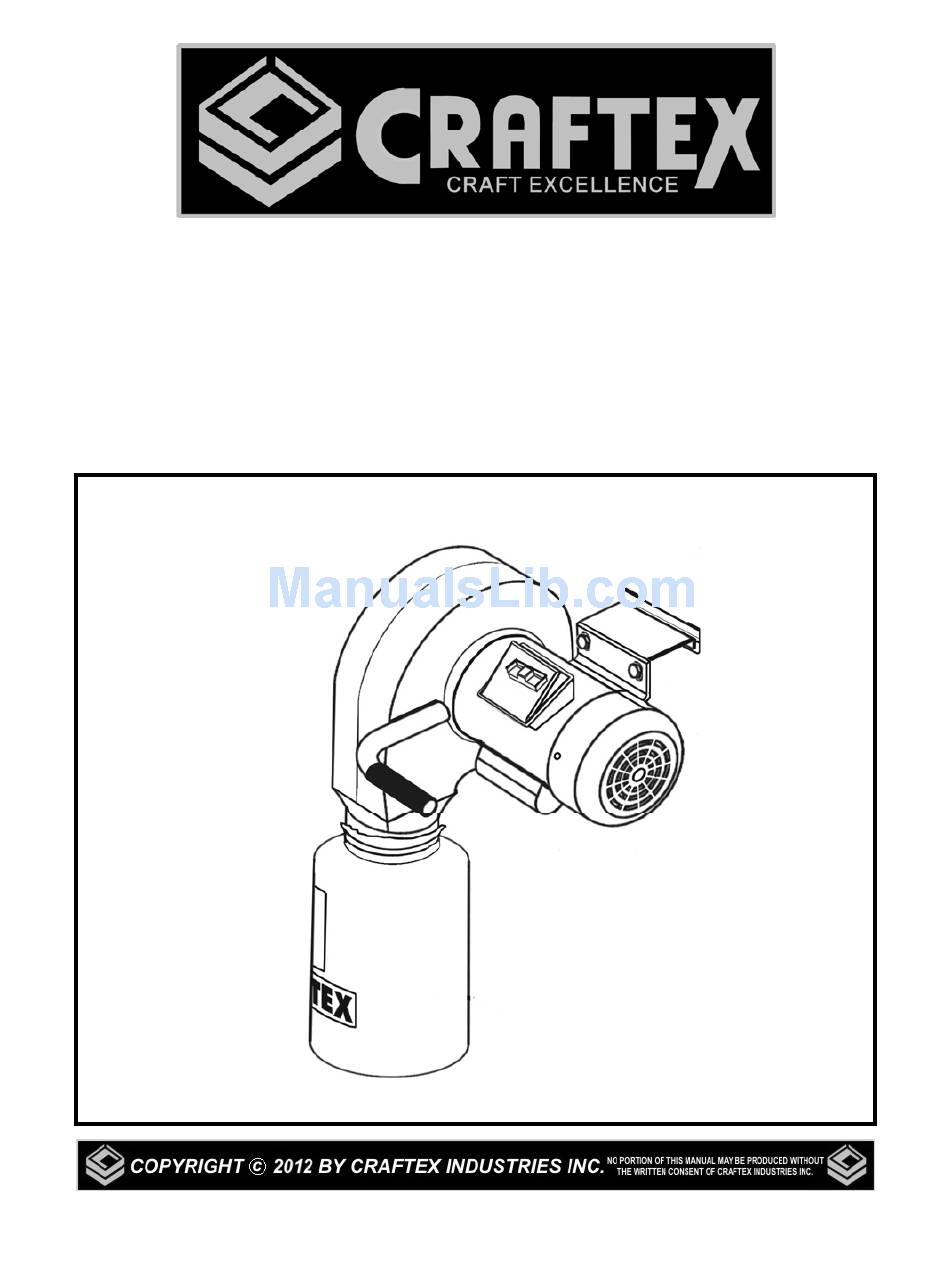

- Page 1 CT167 1-HP WALL MOUNT DUST COLLECTOR User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Safety Instructions............. 3 CT167 Specific Safety Instructions ..........4 Features..................5 Physical Features ................6 Proper Grounding ................7 Unpacking & Inventory..............8 Assembly ..................8 Test Run ..................10 Operation ..................10 Maintenance ...................10 Lubrication ..................10 Impeller ...................11 Machine Storage................11... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Extreme caution should be used when operating all power tools. Know your power tool, be familiar with its operation, read through the owner’s manual and practice safe usage procedures at all times. CONNECT your machine only to the DISCONNECT the power source when matched and specific power source. -
Page 4: Ct167 Specific Safety Instructions
Read and understand the instruction manual before operating the dust collector. Basic precautions listed below should always be followed when using your dust collector to reduce the risk of injury, electrical shock or fire. The CT167 is designed to collect Never operate the dust collector with all sawdust only. -
Page 5: Features
FEATURES MODEL CT167 1-HP WALL MOUNT DUST COLLECTOR As part of the growing line of Craftex woodworking equipment, we are proud to offer the CT167. The Craftex name guarantees Craft Excellence. By following the instructions and procedures laid out in this owner’s manual, you will receive years of excellent service and satisfaction. -
Page 6: Physical Features
CT167- WALL MOUNT DUST COLLECTOR PHYSICAL FEATURES ON/OFF Wall Mounting Switch Bracket Handle Clear Window Motor Bracket 1-HP Motor Collection... -
Page 7: Proper Grounding
50-feet in length and the cord is 14- gauge to prevent motor damage. Check for heat build up periodically. Your CT167 should be wired with a 3- prongs plug fitting a 3 prong grounded receptacles as shown in figure-1. Do not remove the grounding prong to fit it into a 2- pronged outlet. -
Page 8: Unpacking & Inventory
While doing inventory, if you can not find any part, check if the part has already been installed on the machine. Some parts come pre-assembled for shipping purposes. ASSEMBLY To assemble your CT167 Wall Mount Dust Collector, follow the instructions given below. Figure-2 Installing... - Page 9 If you are mounting the mounting bracket to Installing the dust collection bag and secure a framed wall, the bracket must be attached it using bag clamp (provided). See figure-5. to a support board that is wide enough to be mounted on two wall studs and having the capacity of holding the dust collector with collection bag full of dust.
-
Page 10: Test Run
TEST RUN OPERATION that have assembled your CT167 wall mount dust collector machine completely, it is time for a test run designed to be used with one machine at a to make sure that the machine works time. properly and is ready for operation. -
Page 11: Impeller
The machine operates at a much higher level of efficiency when the collection bag is empty. The CT167 features a collection bag with a clear window and a bottom zip. The clear window allows operator to see the amount of dust in the bag and the bottom zip makes... -
Page 13: Warranty
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches etceteras. Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or for incidental contingent, special or consequential damages arising from the use of our products.
