- Page 1 Manual 1.1 en...
- Page 2 General information M6 Manual Version: 1.1 en, 09/2017, D2605.EN .01 Copyright © 2017 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. We recommend you to regularly check the d&b website for the latest version of this manual.
-
Page 3: Table Of Contents
2.3. Operation................... 6 2.3.1. Controller settings..............7 2.3.2. Operation with E-PAC............7 2.4. Dispersion characteristics............8 2.5. Technical specifications............. 9 Manufacturer's declarations........10 3.1. EU conformity of loudspeakers (CE symbol)......10 3.1.1. WEEE Declaration (Disposal)..........10 d&b M6 Manual 1.1 en... -
Page 4: Safety Precautions
Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b M6 Manual 1.1 en... -
Page 5: M6 Loudspeaker

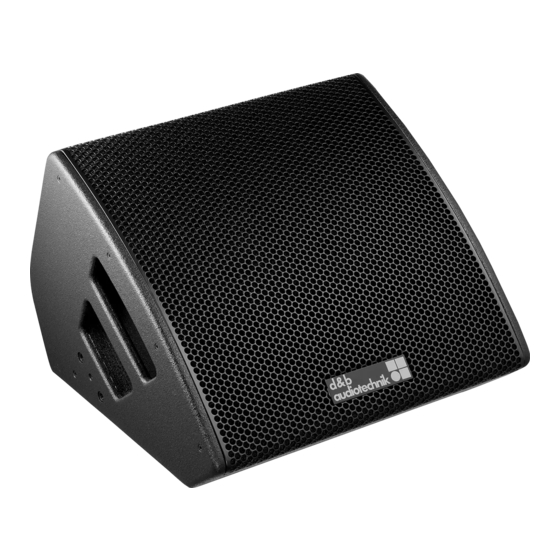

Its dispersion of 50° x 80° (hor. x vert.) provides an accurately defined coverage area on stage. Used upright the M6 serves as a powerful front PA speaker (80° x 50°) for various applications. -
Page 6: Operation
Input/Output routing "Dual channel"* * Schematic diagram Passive operation ("Mix TOP/SUB" mode) With its standard connector wiring the M6 requires 4 wires to be driven and therefore cannot be used in "Mix TOP/SUB" mode. However, for permanent passive use with dedicated 2-wire cabling the M6 setup is also available in "Mix TOP/SUB"... -
Page 7: Controller Settings
Selecting M6 mode enables the E-PAC to drive one M6 loudspeaker. LO IMP mode configures the E-PAC to drive a maximum of two M6 loudspeakers with a 6 dB reduction in input level to the loudspeakers. For acoustic adjustment the CUT and HFA modes are available. -
Page 8: Dispersion Characteristics
2.4. Dispersion characteristics The graphs below show dispersion angle over frequency of a single M6 cabinet plotted using lines of equal sound pressure (isobars) at –6 dB and –12 dB. The characteristics refer to monitor operation. When used as a front-of-house system, the horizontal dispersion corresponds to the vertical plot and vice versa. -
Page 9: Technical Specifications
135 dB with D80/D20/D12/30D active mode 138 dB (SPLmax peak, pink noise test signal with crest factor of 4) M6 frequency response, standard and CUT modes M6 loudspeaker Nominal impedance 8 ohms Power handling capacity (RMS / peak 10 ms) 400/1600 W Nominal dispersion angle (hor. -
Page 10: Manufacturer's Declarations
Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b M6 Manual 1.1 en... - Page 12 www.dbaudio.com...
