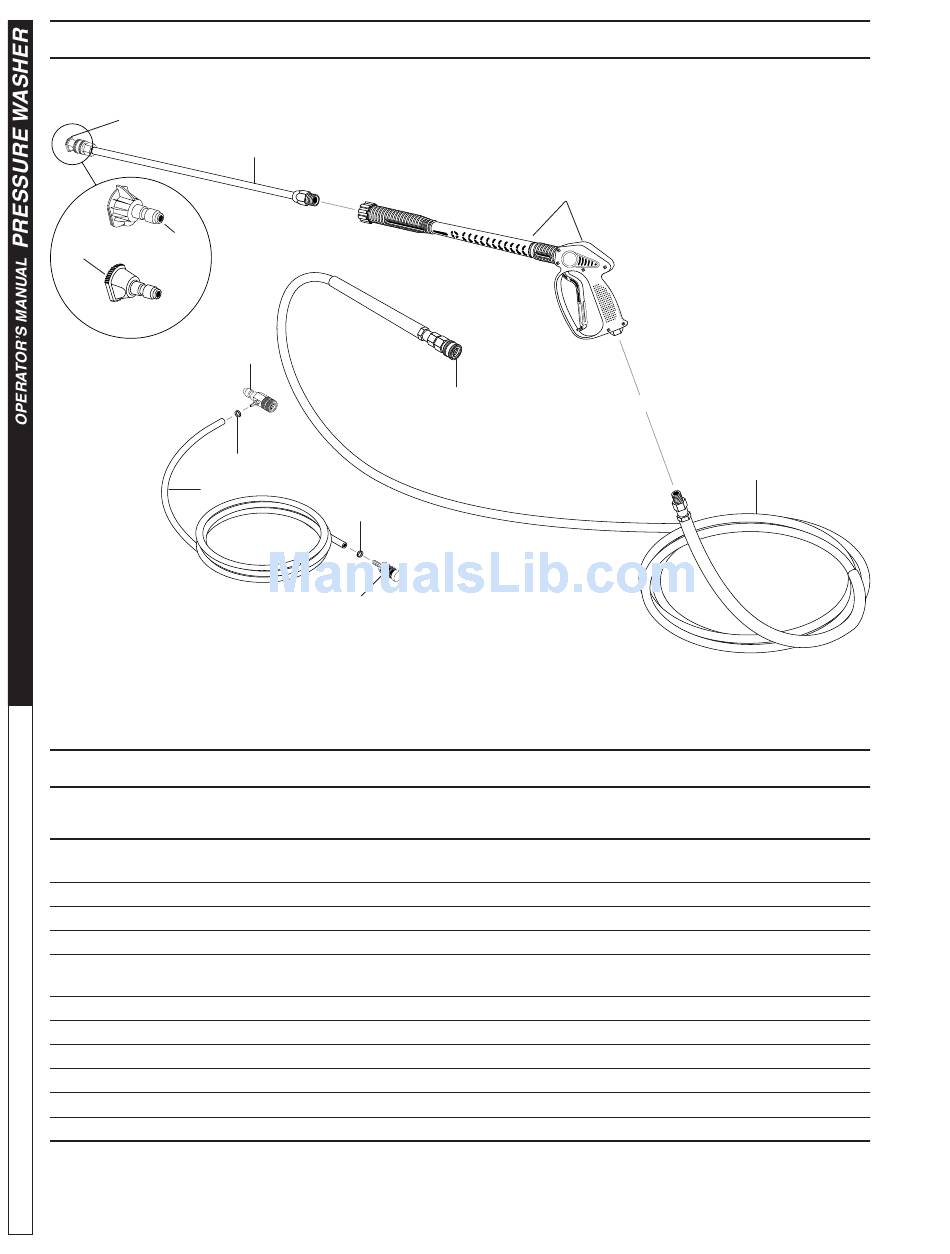

HOSE AND SPRAy gUN ASSEMbLy PARTS LIST
ITEM
PART NO.
1
9.80-166.0
9.80-100.0

8.739-15.0
3
9.80-3.0
4
9.80-0.0
5
9.80-164.0
9.80-096.0
6
Nozzle, See Page 13 For Size
7
9.80-311.0
8
9.80-16.0
9
9.80-10.0
10
9.80-51.0
11
9.80-160.0
16

HOSE AND SPRAy gUN ASSEMbLy

4
8
9
10
9
11
DESCRIPTION
Coupler, 3/8" Female
Quick Coupler O-Ring
Hose, 3/8" x 50', 1 Wire, Tuff-Flex
Spray Gun, Shut-Off
Wand, Straight
Coupler, 1/4" Female
Quick Coupler O-Ring
Nozzle, Brass Soap
Injector, Chemical, Non-Adjust, 3-5GPM, .083
Clamp, Hose, .46 - .54 ST
Tube, 1/" x 1/" Clear Vinyl
Strainer, 1/4" Hose Barb, Plastic
▲ Not Shown
