Summary of Contents for KOBE Brillia CHX7930SQB-WM-1

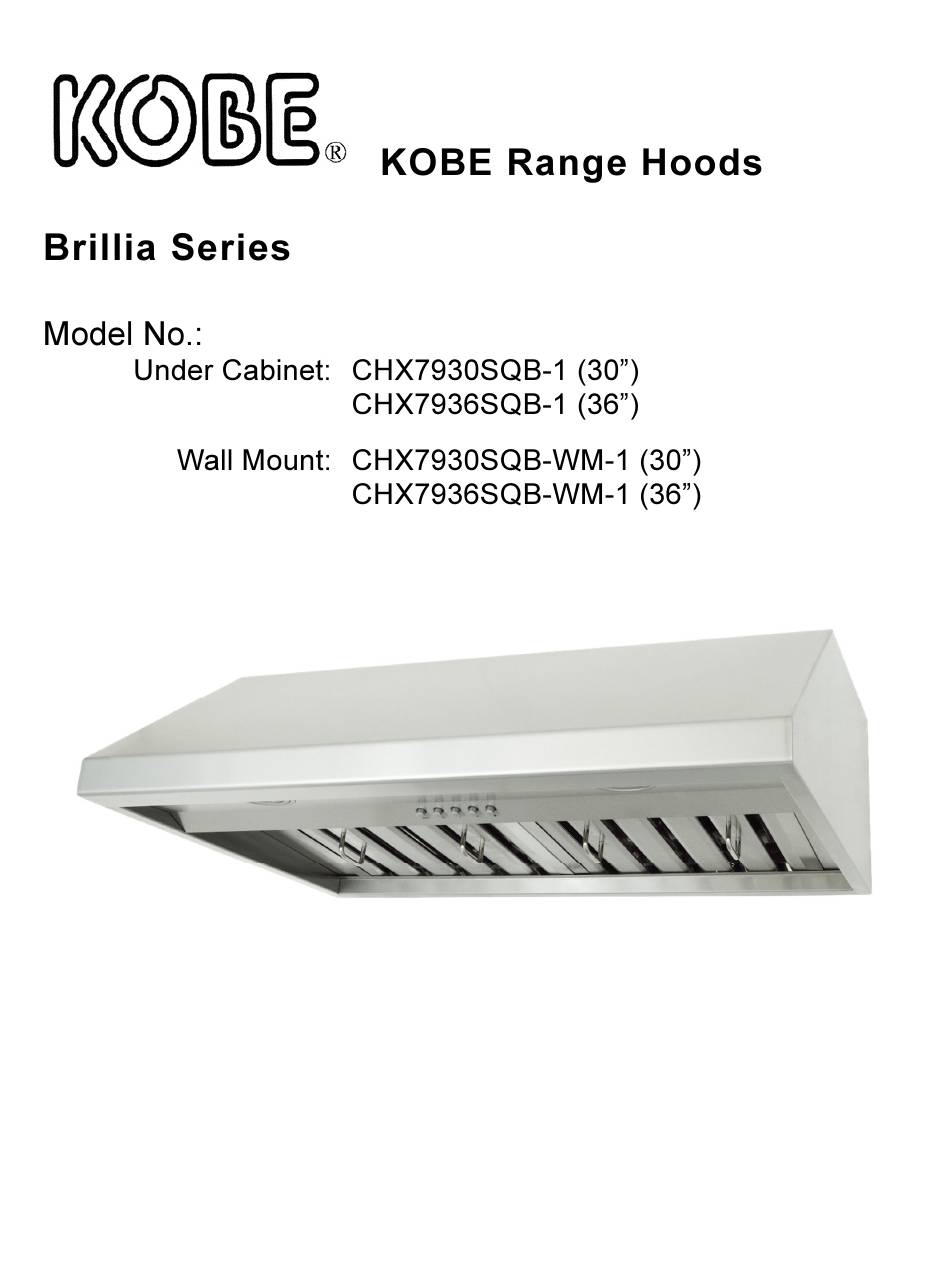

- Page 1 INSTALLATION INSTRUCTIONS AND OPERATIONAL MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: PRODUCT HAS BEEN INSTALLED...
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION .......................... 4 OPERATING INSTRUCTIONS....................13 MAINTENANCE ........................14 SPECIFICATIONS ........................15 MEASUREMENTS & DIAGRAMS .....................16 PARTS LIST ..........................18 CIRCUIT DIAGRAM ........................20 TROUBLE SHOOTING ......................21 WARRANTY ..........................22 WARRANTY INFORMATION FORM ..................24 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -... -
Page 4: Important Safety Instructions
Any repair carried out without the supervision of KOBE authorized agents will automatically void the warranty. KOBE will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
Handle is included with 4 x 6mm (4PCS) M4 x 3/4" (4) M4 x 1-1/2” (5) Wire Caps (3) M4 x 1-1/4” (4) FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1 and TABLE 2. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Preferred Height of Counter Top to... - Page 8 SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. Installation Contents UNDER THE CABINET WALL MOUNT...
- Page 9 UNDER CABINET INSTALLATION Figure 1 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. A straight, short vent run will allow the hood to perform more efficiently.
- Page 10 Figure 5 Align and secure Top Vent Cover {D} and 3-1/4” x 10” Vent Cover (removed from rear exhaust) using 14 screws (13 screws taken from 6” exhaust. (Figure 5) Attach the 3-1/4” x 10” Exhaust {E} to rear exhaust (located inside hood) using 10 screws taken from rear vent cover.
- Page 11 Figure 7 Ductwork Installation 10. Use steel pipe to connect the exhaust on the hood to the ductwork. Use duct tape to make all joints secure and air tight. Install Accessories 11. Install the Oil Tunnel {I} into recess support near rear of hood.
- Page 12 WALL MOUNT INSTALLATION *** This installation required to have Duct Cover Model. CH1120DC-1 Preparation before Installation Figure 9 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside.
- Page 13 4. For Rear 3-1/4” x 10” vent installation only: Figure 13 Remove attached 6” exhaust and discard. (Figure 11) Keep 13 screws to install vent cover. Remove duct knockout from back of the hood and discard. (Figure 13) Unscrew 3-1/4” x 10” Vent keep screws to install 3-1/4”...
- Page 14 Figure 17 Wiring to Power Supply CAUTION : If moving the cooking range is necessary to install the hood, turn off the power in an electrical range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING RANGE. RISK ELECTRICAL SHOCK.
- Page 15 Figure 19 Install Accessories 15. Install the Oil Tunnel {I} into recess support near rear of hood. Refer to Figure 19. 16. Install Baffle Filters {F} and Stainless Steel Spaces {G}. ① Angle baffle filter toward back of the hood. ②...
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function • Press button to choose from speed. o Q = QuietMode™ speed o L = Low speed o H = High speed •... -
Page 17: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 18: Specifications
SPECIFICATIONS MODEL / SIZE Under Cabinet Application Wall Mount Application CHX7930SQB-1 (30”) CHX7930SQB-WM-1 (30”) CHX7936SQB-1 (36”) CHX7936SQB-WM-1 (36”) COLOR 18-Gauge Commercial Grade Stainless Steel CONSUMPTION / AMPERE 180W / 1.5A NUMBER OF BLOWER DESIGN Seamless / Satin Finish BLOWER TYPE Twin Vertical Turbine Impeller EXHAUST Top:... -
Page 19: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. -FOR UNDER THE CABINET- MODEL NO.: CHX7930SQB-1 (30”) CHX7936SQB-1 (36”) 30" = Knockout Holes "A" 36” = Knockout Holes "A" & "B" - FOR WALL MOUNT (DUCT COVER IS INCLUDED–... - Page 20 ***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket ***Duct Cover Support...
-
Page 21: Parts List
PARTS LIST MODEL NO.: CHX7930SQB-1 (30”) and CHX7930SQB-WM-1 (30”) CHX7936SQB-1 (36”) and CHX7936SQB-WM-1 (36”) DESCRIPTION MODEL /SIZE PART NO. L1-0241-0001A 6” Exhaust Plate Vent Cover (Top) L1-0241-0001B L1-0241-0002BH 2-3/4” x9-3/4” Exhaust Plate L1-0241-0002A 3-3/4” x11-1/4” Vent Cover L1-0505-0003 6” Round Plastic Exhaust LED Light (3W) L1-0403-0301 CHX7930SQB-1... - Page 22 MODEL NO.: CHX7930SQB-1 and CHX7930SQB-WM-1 (30”) CHX7936SQB-1 and CHX7936SQB-WM-1 (36”)
-
Page 23: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: CHX7930SQB-1 and CHX7930SQB-WM-1 (30”) CHX7936SQB-1 and CHX7936SQB-WM-1 (36”) -
Page 24: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the Installation, unit’s power is ON. Use a voltage meter both motors to check the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 25: Warranty
ONE-YEAR LIMITED LABOR WARRANTY ON KOBE BRILLIA SERIES: For one year from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 26 TO REQUEST WARRANTY SERVICE, PLEASE CONTACT KOBE RANGE HOODS SERVICE CENTER: From the 48 contiguous states:...
-
Page 27: Warranty Information Form
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-877-BUY-KOBE (289-5623) Email: customer.service@koberangehoods.com For service in Canada and to report a problem, please contact:... - Page 28 KOBE Range Hoods 11775 Clark Street Arcadia, CA 91006 USA www.koberangehoods.com This range hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country.
