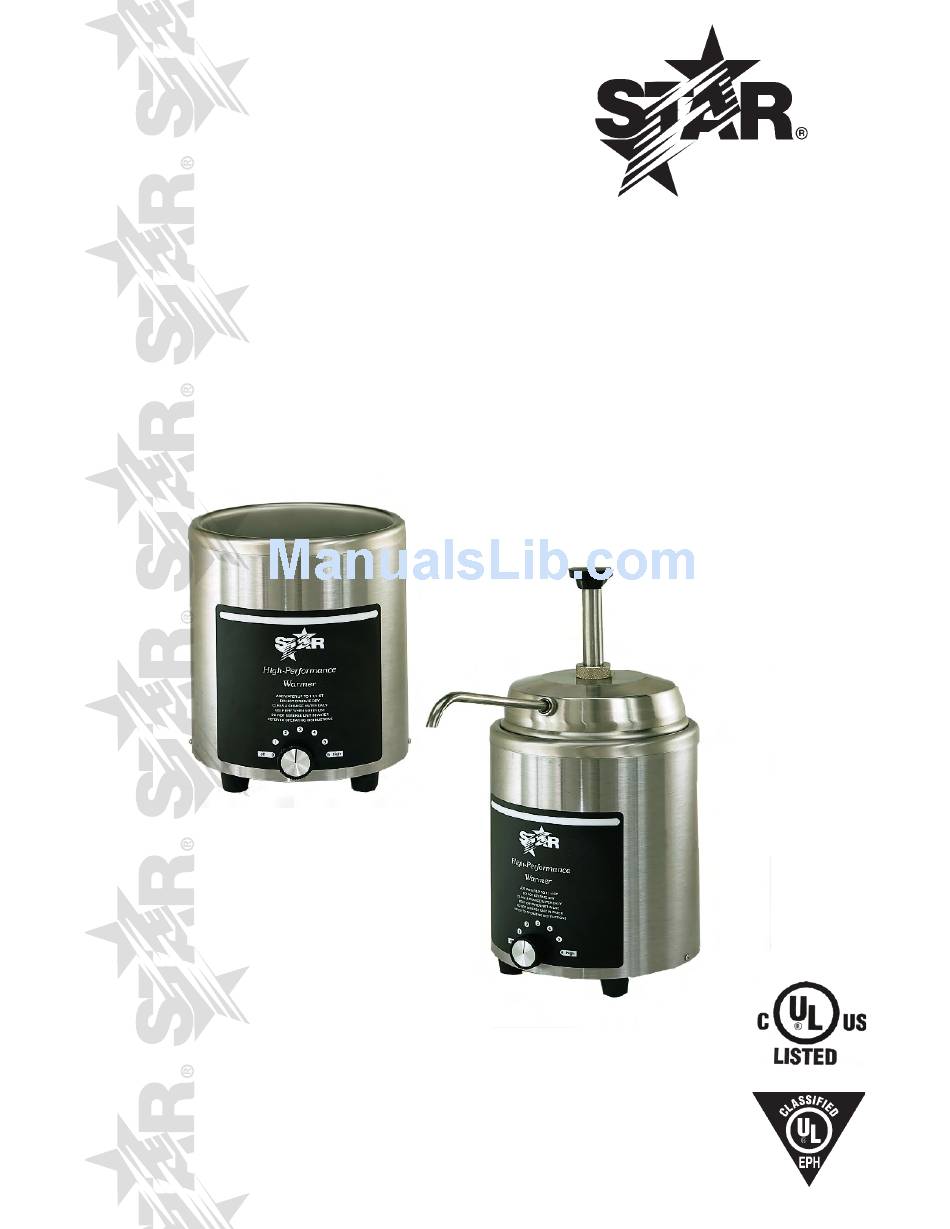

- Page 1 ROUND WARMERS MODEL 4 QUART 7 QUART 11 QUART Installation and Operation Instructions 2M-Y9795 Rev. H 7/18/11 4RW-P...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Installation
Specifications Electrical Deminsions Model Capacity Wieght Voltage Phase Watts Amps Depth Width Hieght 4RW-P 120V 5 Amp 14.625” 3.5 qt 8.75” 16.375” 7.5 lbs 4RW-P 240VE 50/60 2.5 Amp 19.625” 4RW-L 120V 5 Amp 13.625” 7 lbs 600W 4RW-L 240VE 50/60 2.5 Amp 4 qt... -
Page 4: Priming Pump
Set the dial setting to the number required to maintain the desired temperature. Because the consistency of different foods varies, and because liquids and solids absorb heat at different rates, it is impractical to specify an exact dial setting. However, at position "", the temperature is approximately 50°... - Page 5 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 8 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. 4 QT., 7QT. & 11QT. 120V STAR MANUFACTURING INTERNATIONAL, INC.
- Page 9 Model: 4RW, 7RW, 11RW, 4RW-P, 11RW-P Round Warmers Fig No. Part No. Description Application O1-30323 CORD ASSY 120V O1-30324 CORD ASSY 120V O1-30325 CORD ASSY 120V 11RW O1-30326 CORD ASSY 120V CSA 11RW O1-30332 CORD ASSY 240V 2C-2560 NUT 10-24 2C-Y5059 POP RIVET 2I-Z0057...
- Page 10 Model: 4RW, 7RW, 11RW, 4RW-P, 11RW-P Round Warmers Fig No. Part No. Description Application N2-Y4146 WASHER 4RW, 11RW 2I-Y9636 ROD-PLUNGER 4RW, 11RW 2I-Y4143 O-RING 4RW, 11RW 2P-Y6196 BALL-VALVE 4RW, 11RW 2A-Y7658 4RW, 11RW 2I-Z0730 PUMP-CHAMBER 4RW, 11RW 2A-Y9685 PIN “U” 4RW, 11RW 2V-62008 4RW-P...
- Page 12 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
