Connecting To An Ethernet Network - 3Com 6000 User Manual

8 C 2: I
HAPTER NSTALLING THE
Connecting to an
Ethernet Network
A P
CCESS OINT

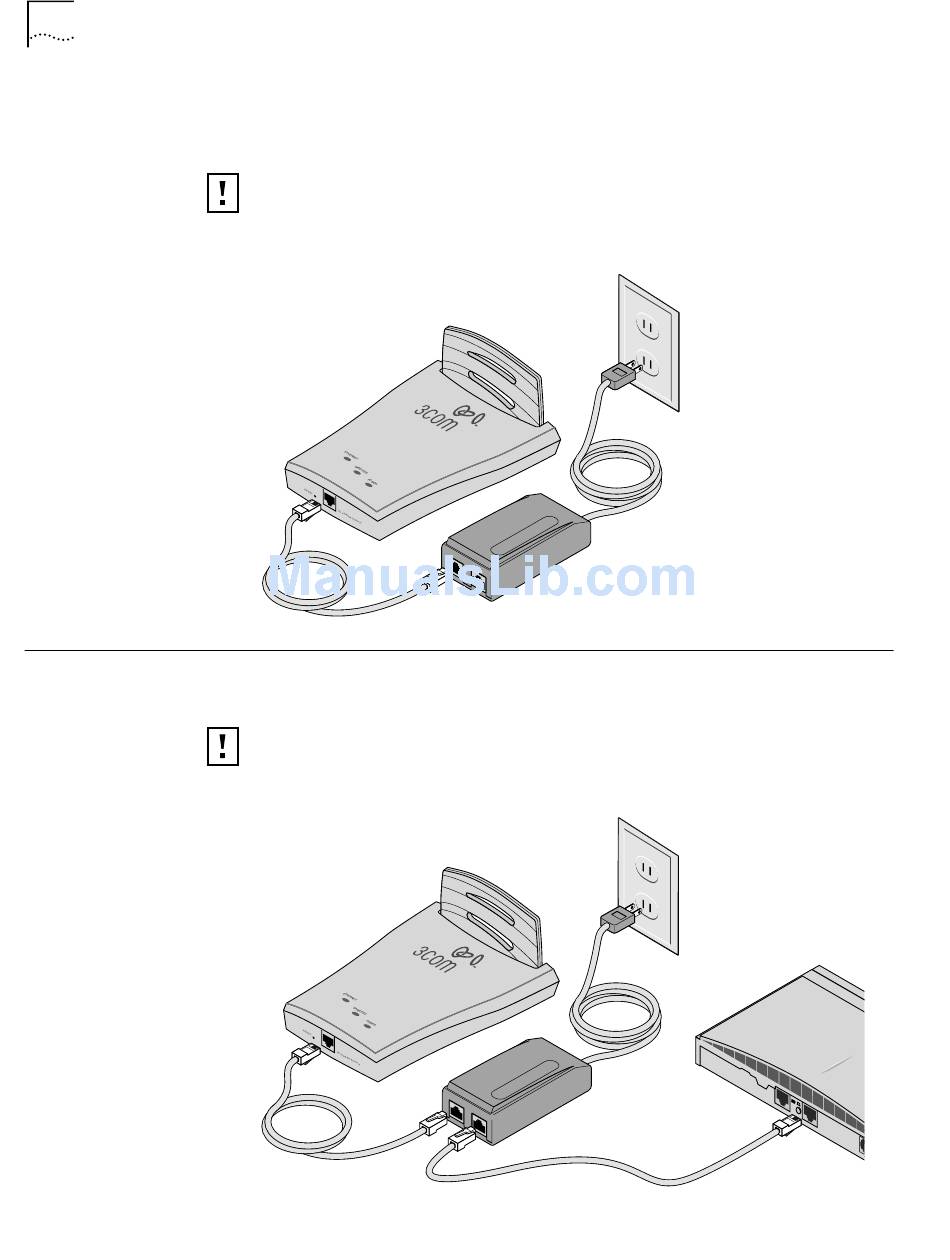

outlet exists. To connect the power, see the following illustration. Make sure you
connect the cable to the port labeled To Access Point on the power brick. When
the access point receives power, the LEDs light.
CAUTION: If you supply your own Ethernet cable for connecting power, be sure
that it is standard cable that has not been altered in any way. Use of
nonstandard cable could damage the access point.
Use a standard Ethernet cable (not supplied) to connect the access point to an
Ethernet network, as shown below.
CAUTION: To avoid damaging other components connected to the network,
make sure that the Ethernet cable connected to the LAN port is plugged into the
To Hub/Switch port on the power brick (not the To Access Point port).
