Summary of Contents for Avigilon 1.0MP-HD-H264-DC1

  • Page 1: Installation Guide

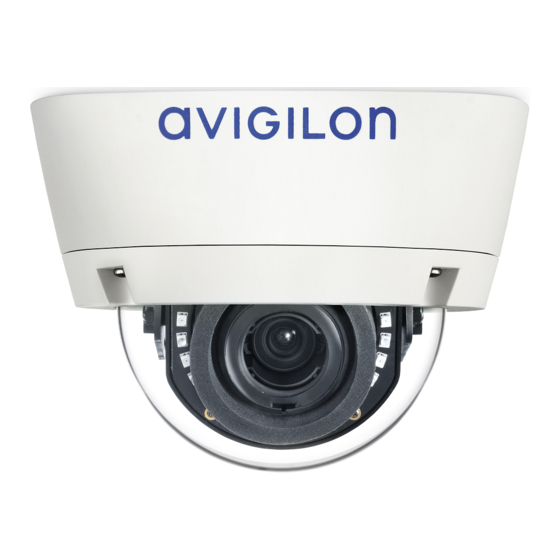

    Installation Guide Avigilon High Definition H.264 IP Dome Camera Models: 1.0MP-HD-H264-DC1 and 2.0MP-HD-H264-DC1 Install-H264DC1-A-Rev3...
  • Page 2: Important Safety Information

    5 W min. • Any external power supply connected to the dome camera may only be connected to another Avigilon dome camera of the same model series. External power connections must be properly insulated. • Do not connect the dome camera directly to mains power for any reason.
  • Page 3 Do not use strong or abrasive detergents when cleaning the dome camera body. • Use only accessories recommended by Avigilon. Use of controls or adjustments or performance of procedures other than those specified in this document may result in hazardous radiation exposure.
  • Page 4 Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment.
  • Page 5: Other Notices

    The contents of this manual and the specifications of this product are subject to change without notice. Avigilon reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible...
  • Page 6: Table Of Contents

    Table of Contents Overview ........1 Cover View .
  • Page 7: Overview

    Overview Cover View Feature Description Dome Cover Vandal proof dome cover constructed out of plastic with a polycarbonate bubble. Tamper Proof Screws TORX tamper-resistant captive screws to fix the dome cover to the base.
  • Page 8: Bottom View

    Bottom View Feature Description Cable Entry Hole An entry hole for network, power and I/O cables. Ceiling Panel Clamps Clamps for securing the dome camera to the ceiling panel. Serial Number Tag Serial and part numbers for the dome camera.
  • Page 9: Front View

    Front View Feature Description Tilt Lock Thumb Screws Provides a locking mechanism for the image tilt adjustment. Pan Lock Thumb Screws Provides a locking mechanism for the image pan adjustment. Azimuth Control Provides adjustment of the image angle. Ethernet Port Accepts an Ethernet connection to a network.
  • Page 10: Installation

    Small slotted screwdriver with 5/64” or 2 mm blade width — for connecting power when not using Power over Ethernet. Camera Package Contents Ensure the package contains the following: • Avigilon High Definition IP Dome Camera • Terminal block • T20 TORX tamper resistant key •...
  • Page 11: Mounting The Dome Camera

    Mounting the Dome Camera Perform the following steps to mount the dome camera to the ceiling: 1. Use the hole template to cut a 144 mm (5.5”) hole in a ceiling panel. 2. Insert the dome camera into the hole, and pull the cables through the dome camera’s cable entry hole.
  • Page 12: Connecting Cables

    Connecting Cables Refer to the camera diagrams in the Overview section for the location of the different connectors. To connect the cables required for proper camera operation, complete the following: 1. If there are external input or output devices that need to be connected to the camera (for example: door contacts, relays, etc), connect the devices to the camera I/O Terminals.
  • Page 13: Accessing The Live Video Stream

    4. Rotate the azimuth control ring to set the image to the correct angle. 5. In the Avigilon Camera Installation Tool, adjust the camera’s Image and Display settings to achieve the desired zoom position. Removing the Dome Cover Remove the dome cover by loosening the 2 tamper-proof screws that fix the cover to the base.
  • Page 14: Focusing The Dome Camera

    NOTE: Ensure this procedure is performed after the dome cover is installed, so the focus shift caused by the dome bubble’s refraction can be accomodated. • In the Avigilon Camera Installation Tool, use the camera’s Image and Display settings to focus the camera lens. Click the Auto Focus button to focus the lens.
  • Page 15: Cable Connections

    Cable Connections Connecting Power NOTE: Do not perform this procedure if the dome camera is powered through Power over Ethernet (POE). If PoE is not available, the dome camera needs to be powered through the removable power connector block on the dome camera. Refer to the dome camera diagrams for the location of the power connector block.
  • Page 16: Connecting To Input/Output Devices

    Connecting to Input/Output Devices External devices are connected to the dome camera through the I/O terminal. The pinout for the I/O terminal is shown in the following table and diagram. Table 1: External I/O Terminals Function Description Input (-)/Output A Shared pin for Input and Output. Input (+) The input uses a photocoupler and is electrically isolated from the internal circuitry.
  • Page 17 50 Hz, the video output signal is PAL. Use the Avigilon Camera Installation Tool to configure the camera’s flicker control in the Image and Display setup. NOTE: Video output is disabled when the camera is encoding multiple H264 or JPEG streams.
  • Page 18: Led Indicators

    LED Indicators Once the dome camera is connected to the network, the camera’s connection status LEDs will display the camera’s progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Table 2: LED Indicators Connection Connection Description...
  • Page 19: Reset To Factory Default Settings

    Reset to Factory Default Settings If the dome camera no longer functions as expected, you can choose to restore the dome camera to its factory default settings. Use the firmware revert button to reset the dome camera. Figure C: The firmware revert microswitch on the side of the dome camera. 1.
  • Page 20: Setting The Ip Address Through The Arp/Ping Method

    Setting the IP Address through the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: 1. Locate and copy down the MAC Address (MAC) listed on the camera’s Serial Number Tag for reference. 2.
  • Page 21: Specifications

    Specifications Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 www.onvif.org ONVIF compliant ( Security Password protection, HTTPS encryption, digest authentication, WS authentication, user access log Protocols IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, Zeroconf, ARP Streaming Protocols RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/ TCP, RTP/RTSP/HTTPS/TCP, HTTP...
  • Page 22: Limited Warranty & Technical Support

    Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
  • Page 23 © 2/1/11 Avigilon Corporation...
