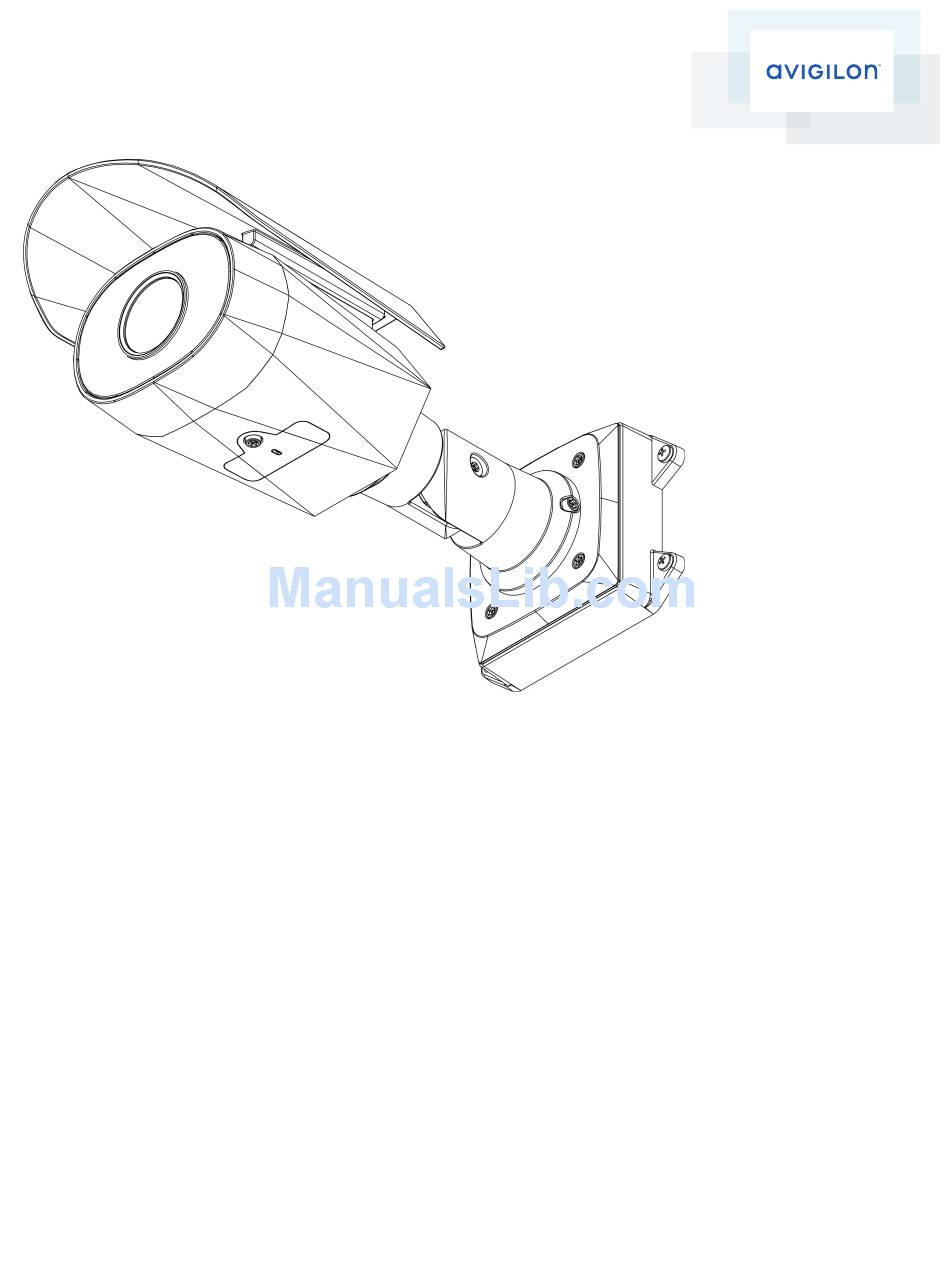

      Installation Guide Avigilon™ H4 HD Bullet Camera Models: H4A-BO1-IR, H4A-BO2-IR...
  • Page 2: Important Safety Information

    Power Source” with output rated 12 VDC or 24 VAC, 13 W min. or Power over Ethernet (PoE), rated 48 VDC, 13 W min.   Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated.  ...
  • Page 3: Regulatory Notices

      Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment. Disposal and Recycling Information When this product has reached the end of its useful life, please dispose of it according to your local environmental laws and guidelines.
  • Page 4 The absence of the symbols ™ and ® in proximity to each trademark in this document is not a disclaimer of ownership of the related trademark. Avigilon Corporation protects its innovations with patents issued in the United States of America and other jurisdictions worldwide: http://www.avigilon.com/patents...
  • Page 5: Table Of Contents

    Table of Contents Overview Mounting Bracket View Rear View Front View Configuration Panel View Side View Installation Camera Package Contents Precautions for Installing Near Salt Water Installation Steps Mounting and Aiming Video Analytics Cameras Preparing the Camera for Mounting (Optional) Removing the Sun Shroud Reinstalling the Sun Shroud Connecting Cables Mounting the Camera...
  • Page 6: Overview

    Overview Mounting Bracket View  1. Camera Mounts Points for installing the camera to the mounting bracket.  2. Mounting Hook Slots Points to hold the camera to the mounting bracket while connecting the required cables.  3. Mounting Holes Holes for securing the mounting bracket to the mounting surface. Overview...
  • Page 7: Rear View

    Rear View  1. Ethernet Port Accepts an Ethernet connection to a network. Server communication and image data transmission occurs over this connection. Also receives power when it is connected to a network that provides Power over Ethernet.  2. Camera Mounting Screws Screws for mounting the camera to the mounting bracket.
  • Page 8: Front View

    Front View  1. IR Illuminators Provides scene illumination in the IR spectrum.  2. Configuration Panel Cover Covers the configuration panel. For more information on the configuration panel, see the Configuration Panel View on the next page . Front View...
  • Page 9: Configuration Panel View

     3. Connection Status LED Provides information about camera operation. For more information, see LED Indicators on page 16  4. Micro USB Port Accepts a micro USB to USB adapter. Only required when using the Avigilon USB Wifi Adapter. Configuration Panel View...
  • Page 10: Side View

    Side View  1. Sun Shroud An adjustable cover to help protect the lens against glare from the sun.  2. Mount Arms Adjustable mount arms for positioning the camera.  3. Adjustment Screws Provides a locking mechanism for the mount arm. Side View...
  • Page 11: Installation

    Follow these precautions to avoid camera issues when installing in a salt heavy environment:   Use mounting accessories offered by Avigilon. All Avigilon accessories are tested to work with Avigilon cameras in the rated environments.  ...
  • Page 12: Mounting And Aiming Video Analytics Cameras

    Configuring the Camera   Mounting and Aiming Video Analytics Cameras When installing an Avigilon video analytics camera, follow the listed mounting and aiming recommendations to maximize the camera's analytics capabilities:   The camera should be installed above 274 cm (9').
  • Page 13: (Optional) Removing The Sun Shroud

     3. Fasten the mounting bracket to the mounting surface. NOTE: It is recommended that silicone sealant be applied around the edge of the mounting bracket to prevent moisture from entering the mounting surface.  4. Insert the mounting hooks on the rear of the camera into the mounting hook slots on the mounting bracket, and let the camera hang.
  • Page 14: Connecting Cables

    Connecting Cables Before connecting any cables, ensure that the cable connections are properly protected from moisture and corrosion. Enclose the cables in a watertight junction box such as the HD Bullet junction box (H4A-BO-JBOX1) to prevent moisture from corroding the cable connections.  1.
  • Page 15: Removing The Configuration Panel Cover

     1. Tuck the extra lengths of cables into the cable entry hole.  2. Secure the camera to the mounting bracket:  a. Raise the camera until it covers the mounting bracket.  b. Use the camera mounting screws to fasten the camera to the bracket. Removing the Configuration Panel Cover  1.
  • Page 16: (Optional) Using The Usb Wifi Adapter

    For more information about configuring the camera from the mobile web interface see Avigilon USB Wifi Adapter System User Guide. NOTE: The camera will reserve the 10.11.22.32/28 subnet for internal use while the USB Wifi Adapter is plugged Assigning an IP Address The camera automatically obtains an IP address when it is connected to a network.
  • Page 17: (Optional) Configuring Onboard Sd Card Storage

     4. Tighten the adjustment screws on the mount arm to secure the camera’s position.  5. In the camera web browser interface or the Avigilon Control Center software adjust the camera’s Image and Display settings. You can set the zoom position, focus and change the image rotation.
  • Page 18: For More Information

    For more information, see the Avigilon Camera Configuration Tool User Guide.   If the camera is connected to the Avigilon Control Center, you can use the client software to configure the camera. For more information see the Avigilon Control Center Client User Guide.
  • Page 19: Connecting To Power And External Devices

    Connecting to Power and External Devices Important: Be careful not to connect power to the audio input cable, doing so will permanently damage the camera. Both the audio input cable and auxiliary power cable are brown. To distinguish the auxiliary power cable, it is labeled AUX PWR and has a thicker gauge.
  • Page 20  8. White — Reserved cable, do not connect.  9. * — Relay  10. ** — Switch  11. M — Microphone  12. S — Speaker  13. AUX1 — Brown Auxiliary Power Cable  14. AUX2 — Blue Auxiliary Power Cable Connecting to Power and External Devices...
  • Page 21: Led Indicators

    LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address.
  • Page 22: Resetting To Factory Default Settings

    Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. Figure 1: The firmware revert button in the Configuration Panel.  1.
  • Page 23: Setting The Ip Address Using The Arp/Ping Method

    NOTE: The ARP/Ping Method will not work if the Disable setting static IP address through ARP/Ping method check box is selected in the camera's web browser interface. For more information, see the Avigilon™ High Definition H.264 Web Interface User Guide.
  • Page 24: Specifications

    Specifications Camera Audio Input/Output Line level input and output H4A-BO1-IR:   (1 – 3 MP models) 3-9 mm, F1.3, P-iris   (5 – 8 MP models) 4.3-8 mm, F1.8, P-iris Lens H4A-BO2-IR:   (1 – 5 MP models) 9-22 mm, F1.6, P-iris Onboard Storage SD/SDHC/SDXC slot –...
  • Page 25 VAC: 24 V +/- 10%, 19 VA min PoE: IEEE802.3af Class 3 RTC Backup Battery 3V manganese lithium Environmental -40 °C to +55 °C (-40 °F to 131 °F) Operating 8.0 MP model —  -35 °C to 50 °C (-31 °F to 122 °F) Temperature NOTE: IR illuminators will not turn on if the temperature is 45 °C (113 °F) or higher.
  • Page 26: Limited Warranty & Technical Support

    Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
