PHOTO EYE HOOK UP DIAGRAM
IRB 4X Photo Eye
The IRB 4X photo-eye has two parts: the TRANSMITTER and the RECEIVER. The
TRANSMITTER has 2 screw terminals labeled plus and minus. The RECEIVER has 5
terminals, DO NOT use terminal #4. To connect the units to the gate operator circuit

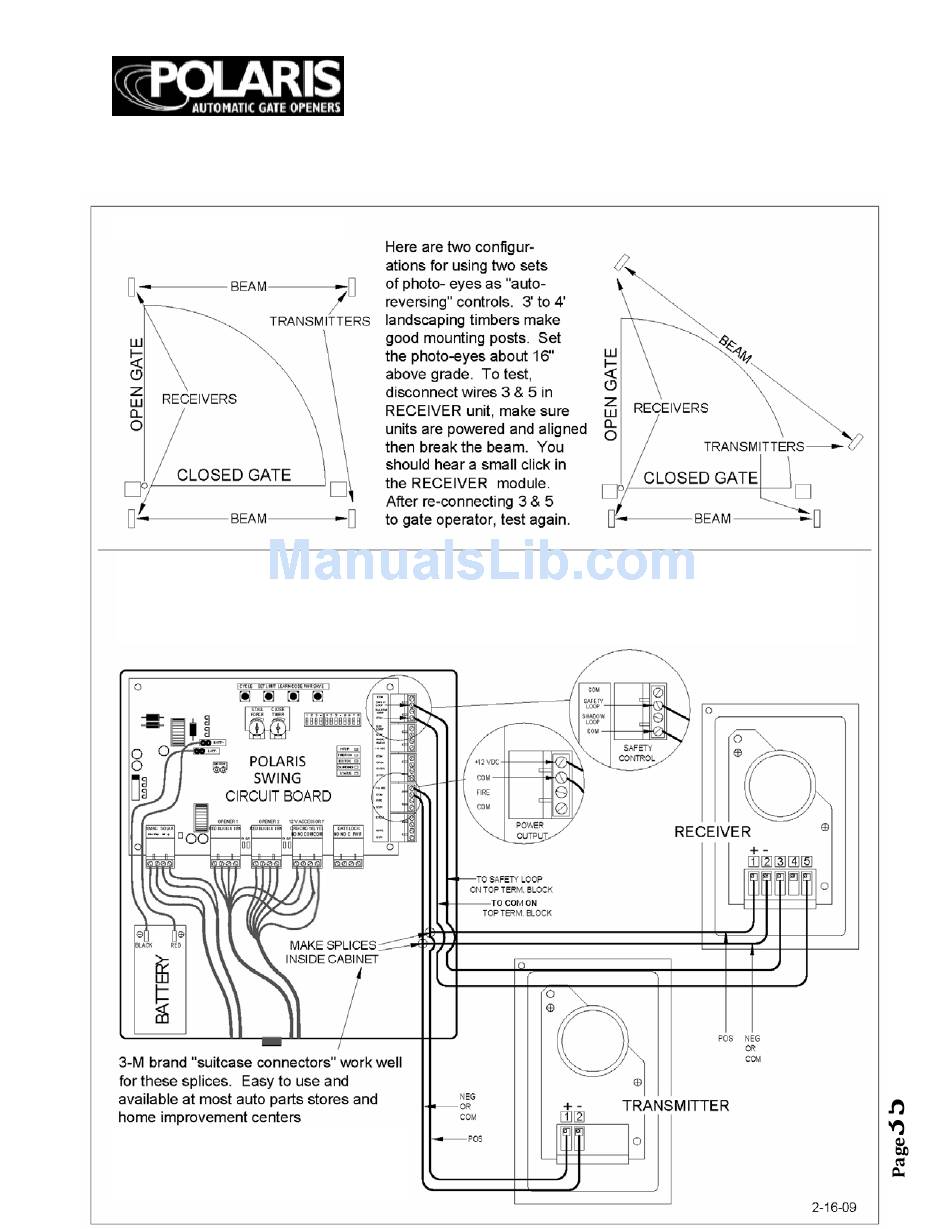

board, see the drawing below. Use a direct-burial type of control wire like "sprinkler
*Use these instructions in
combination with the IRB 4X
instructions that come with the
