Dual Gate Installations

Step 1
Make sure both gates are in the fully closed
position.
Verify Block 2, DIP Switch #1,2 & 3 are in the
ON position,
Step 2
Ensure power switch is in the ON position. Press
the cycle button on the circuit board and the gates
will begin to open. Stop the gates using the cycle
button when the desired limit for the primary gate
has been reached.
Step 3
Press and hold the "SET LIMIT" button until you
hear one beep to acquire the open limit setting
(fig. 29). The STATUS light will turn on
immediately upon pressing the SET LIMIT
button. The STATUS light will turn off and an
audible beep will verify the open limit is now set.
Step 4
Press cycle button on circuit board to return the
gates to the fully closed position.
Step 5
Again, press the cycle button on circuit board.
The gates will begin to open. The primary gate
should stop at the open limit position that was
programmed in the previous steps. The secondary
gate will continue to open until you press the
cycle button.
Step 6 (setting secondary gate)
Set Block 2, DIP switch #6 to the ON position.
Press and hold the "SET LIMIT" button until you
hear one beep to acquire the open limit setting
(fig. 29). The STATUS light will turn on
immediately upon pressing the SET LIMIT
button. The STATUS light will turn off and an
audible beep will verify the open limit is now set.
Step 7
Press the cycle button on circuit board to close
both gates. Then once again press the button to
open the gates and verify the open limits are set
properly. If the gates did not reach the desired
open limits, proceed to step 8.
Step 8
CLEARING THE OPEN LIMIT SETTINGS:
a) Return the gates to the fully closed position.
b) Set Block 2, DIP switch #6 to the OFF
position.

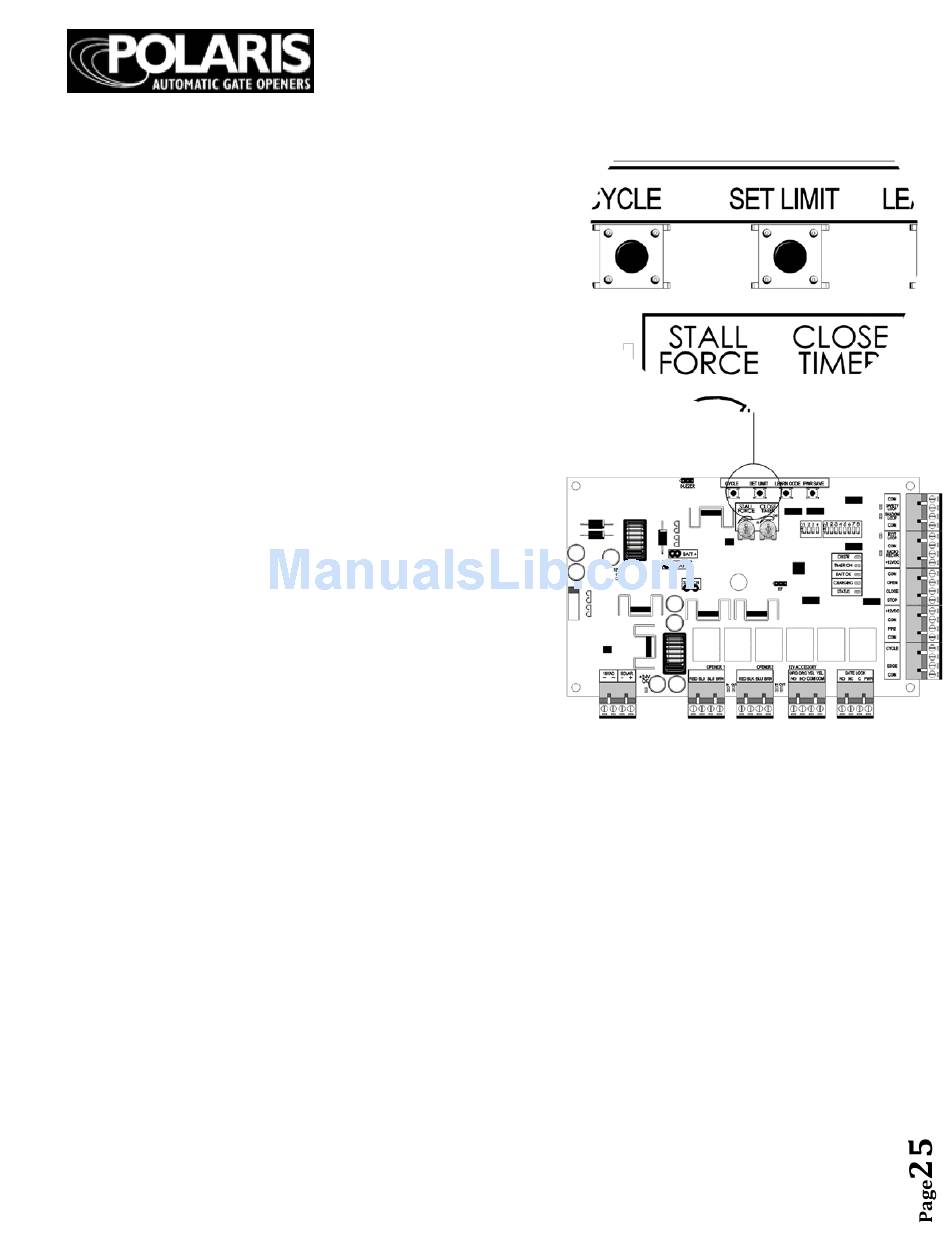

Fig.29
c) Press and hold the SET LIMIT button
until two audible beeps are heard. Two
audible beeps will verify the open limit
setting is now cleared.
d) Set Block 2, DIP switch #6 to the ON
position.
e) Press and hold the SET LIMIT
button for until two audible beeps are
heard. Two audible beeps will verify the
open limit setting is now cleared.
Repeat steps 1 – 7 to program the gates
"open limit setting".
