Circuit Board
Batte
Step 5
Connect the battery terminal
wires to the battery.
Step 6
Plug in transformer. Turn control
box power switch to the ON position.
WARNING: Please make sure
the batteries are fully charged
before connecting and powering
up the new circuit board.
Undercharged batteries may
damage the circuit board and
void your warranty.
Step 3
The transformer provided is for dry
location use only. If used in an outside
outlet, the transformer must be enclosed
or covered for weather protection. Attach
AC power wire to the transformer.
NOTE: DO NOT PLUG TRANSFORMER
INTO AC POWER UNTIL ALL WIRING IS
COMPLETED.
Step 4
Install the battery by placing the battery
into the control box. The control box can
accommodate one or two batteries.
Warning:
wires for the purpose of extending your wiring
Second Battery connections. Doing so can void your warranty.
(not included) Contact technical support for recommended
procedure. 1-877-313-8902.
Black (-)
Red (+) terminal
Do not attempt to splice operator

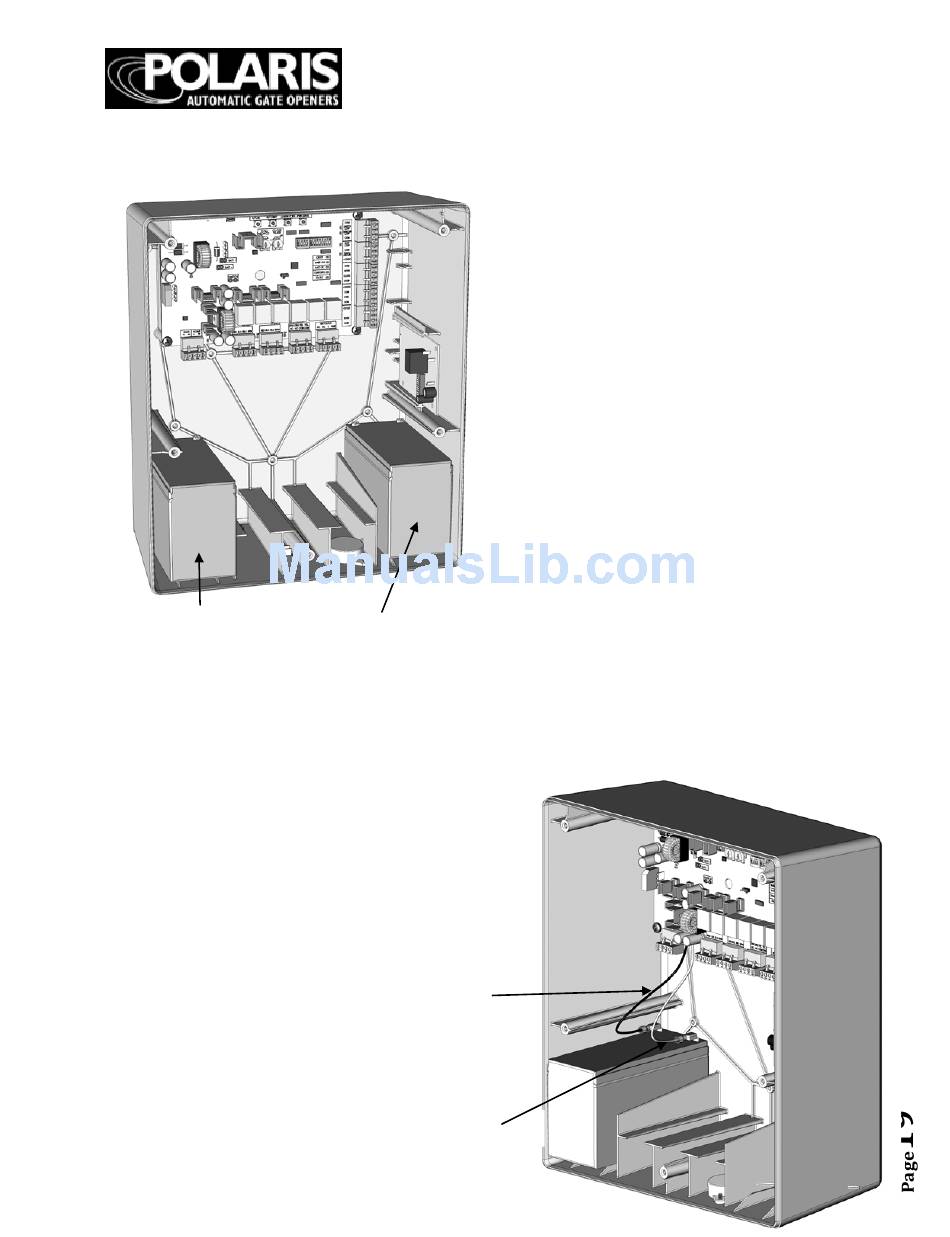

Figure 22
