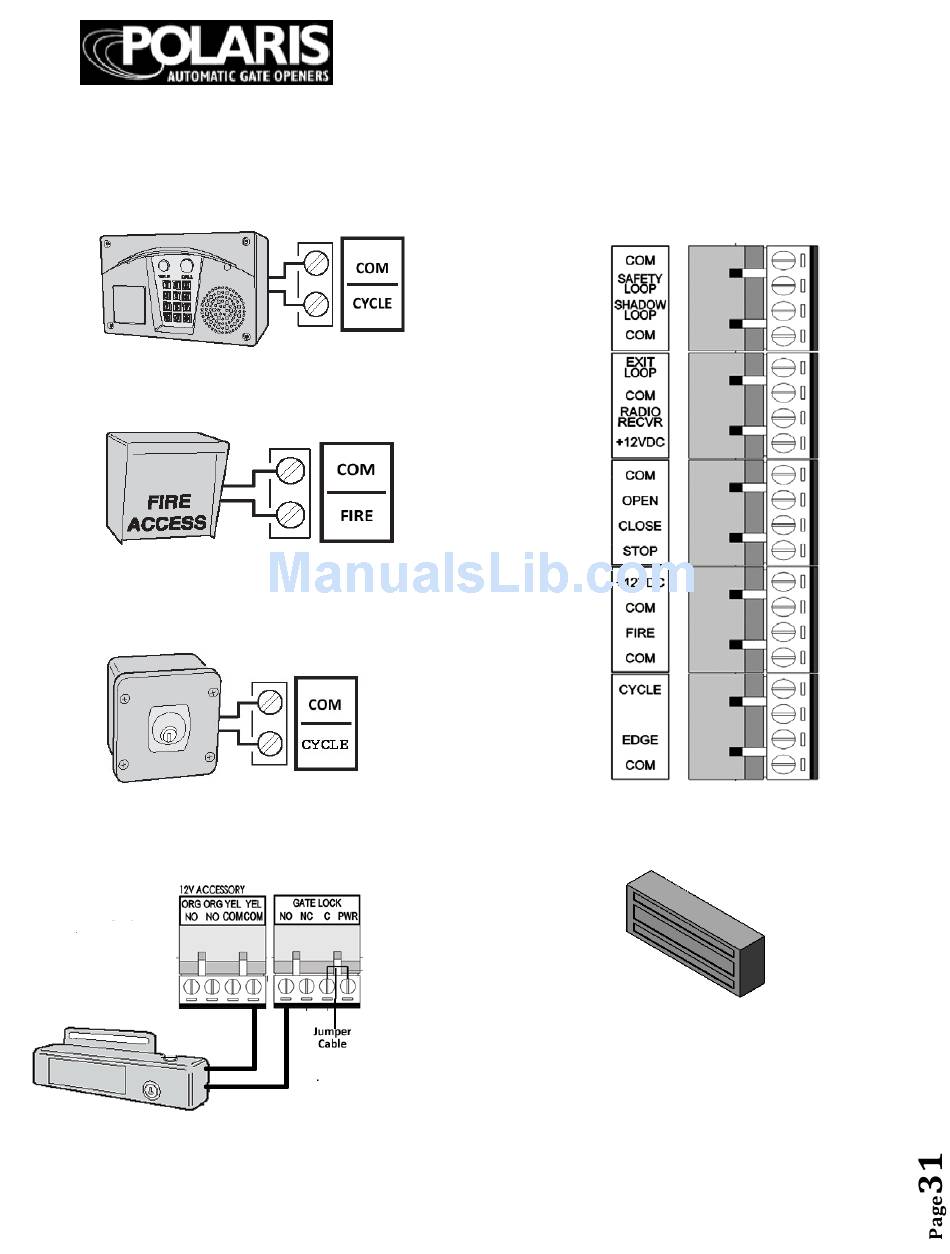

ACCESSORY HOOK UP DIAGRAM

Telephone Entry System

Fire Access Control

Keyswitch Control

Solenoid Lock- #1 see page 30.

Accessory Connections Strip

Magnetic Lock- #2 see page 30

Please refer to Magnetic

Lock instruction manual for

connection instructions.

Connections differ for 12v or

24v connection.
