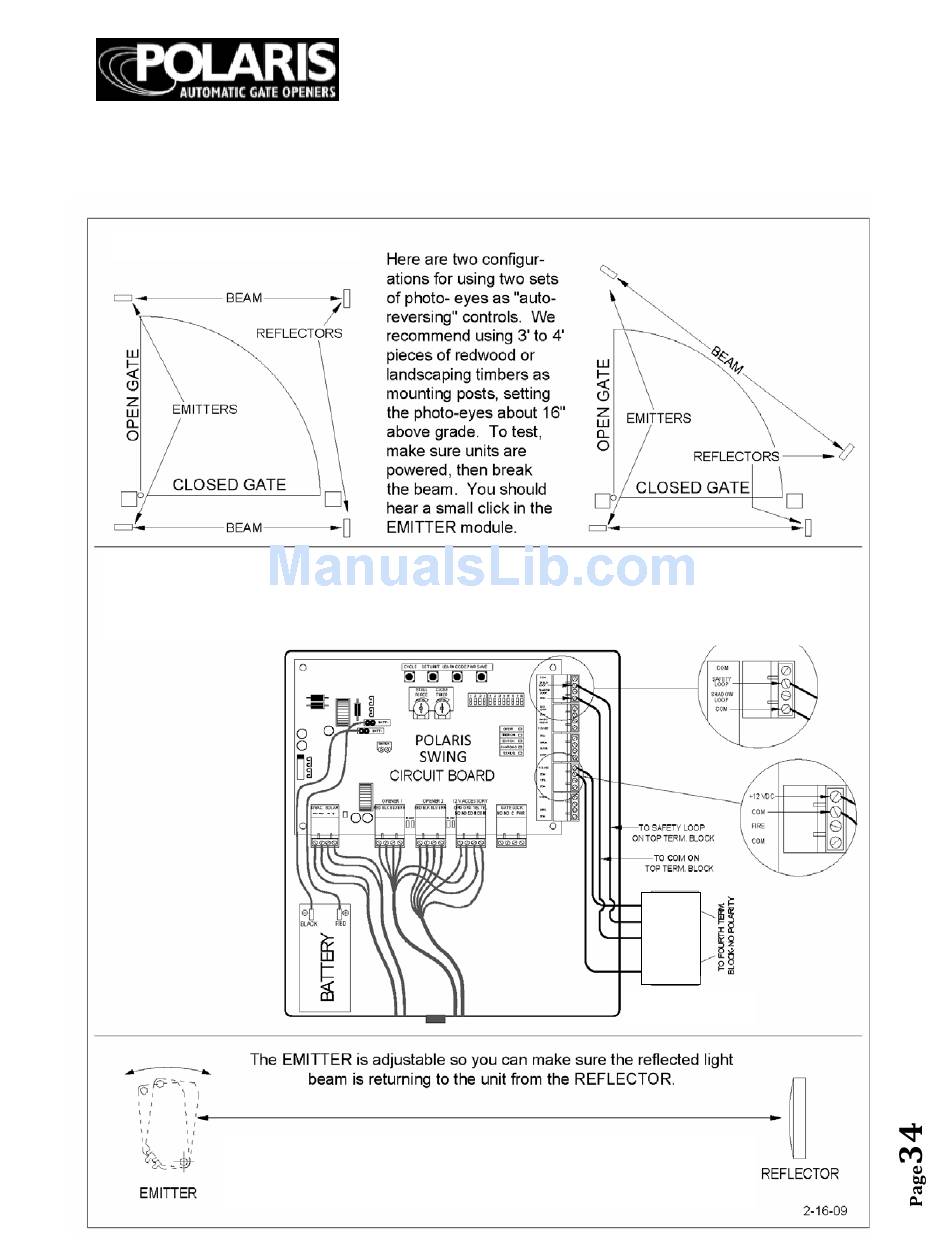

PHOTO EYE HOOK UP DIAGRAM
NIR Photo Eye
The NIR photo-eye has two parts: the EMITTER and the REFLECTOR. The
EMITTER has 5 screw terminals labeled by color. Attach the terminals in the emitter
to those on the gate operator circuit board as shown below. Use a direct-burial type of
control wire like "sprinkler wire" and position the emitter on the hinge-side of the
*Use these instructions in combination with the NIR
instructions that come with the photo eyes.*
Brown
Gray
White
Black
Blue
*Black wire not used*
NIR Photo
