Page 1: Table Of Contents
PERATION -5 P USION ACKAGES -5 B USION OOSTER ARDWARE INSTALLATION ELECTION NSTALLATION NSTRUCTIONS UTOMATIC HUTDOWN TROUBLESHOOTING FREQUENTLY ASKED QUESTIONS 14 OBTAINING TECHNICAL SUPPORT 14 WARRANTY Fusion-5™ Booster, Fusion-5 SPECIFICATIONS Omni Kit, Fusion-5 Panel Kit SAFETY INFORMATION (FUSION-5) User Guide... -
Page 2: Introduction
This guide contains all the information you need to get your SureCall Fusion-5 booster system up and running. Theory of Operation... -
Page 3: Surecall Fusion-5 Packages
3 dBi 6 dBi 6 dBi\6 dBi * All equivalent antennas and cables are suitable for use with the Fusion-5 booster. Note: For the signal booster to work, the following items are required: x Outside antenna x Cable for connecting the outside antenna to the booster... -
Page 4: Fusion-5 Booster Hardware

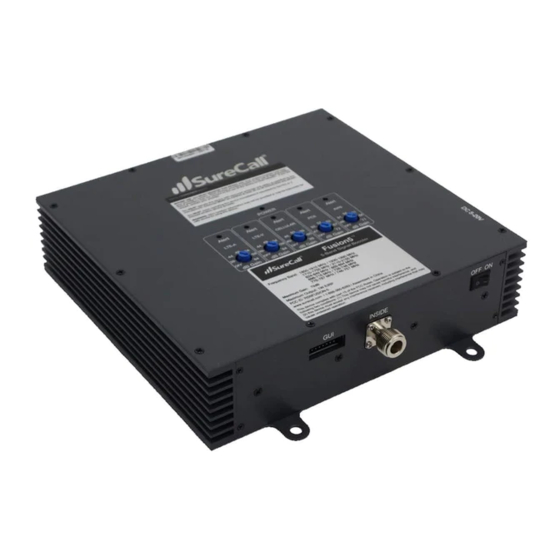

INTRODUCTION Fusion-5 Booster Hardware The following figure shows the key hardware components on the SureCall Fusion-5 cellular signal booster. Refer to this figure as you install your SureCall Fusion-5 components. Outside Antenna Connector Power LED (not shown) Five Gain Dials (left to right): •... -
Page 5: Installation
Although cell phone providers try to place towers for maximum coverage, local ordinances and terrain features can restrict tower locations, which can limit signal strength at your location. SureCall Fusion-5 Cellphone-Mate, Inc. Page 5 All rights reserved. -
Page 6: Installation Instructions
Using the CM240 or CM400 cable, connect the outside antenna to the booster connector marked OUTSIDE (see page 4). Hand tighten the connection. SureCall Fusion-5 Cellphone-Mate, Inc. Page 6 All rights reserved. - Page 7 Using the CM240 or CM400 cable, connect the inside antenna to the booster connector marked INSIDE (see page 4). Hand tighten the connection. SureCall Fusion-5 Cellphone-Mate, Inc. Page 7 All rights reserved.
- Page 8 (see page 4). The booster is rated for 5-20V input voltage. DO NOT use the booster with a higher voltage power supply. This can damage the booster and/or cause personal injury. SureCall Fusion-5 Cellphone-Mate, Inc. Page 8 All rights reserved.
- Page 9 45 or below Note: As you can see from the table above, acquiring the recommended indoor and outdoor antenna separation optimizes coverage significantly. Any reduced antenna separation reduces the booster’s cellular signal capabilities. SureCall Fusion-5 Cellphone-Mate, Inc. Page 9 All rights reserved.
-
Page 10: Leds
Green ON or blink = booster is receiving power. OFF = booster is not receiving power. Red ON = oscillation has occurred for longer than 15 minutes and the booster is shutting down (see Automatic Shutdown on page 11). SureCall Fusion-5 Cellphone-Mate, Inc. Page 10 All rights reserved. -
Page 11: Automatic Shutdown
INSTALLATION Automatic Shutdown SureCall boosters that have automatic shutdown work in the following way: The cellular LEDs are usually the first side to experience oscillation. When oscillation is detected in the uplink and/or downlink, the appropriate red Warning LEDs flash and Power turns red. -
Page 12: Troubleshooting
Check the green POWER LED on the booster. If it is OFF, return the power supply to Cellphone-Mate. Contact tech support at 1-888-365-6283, email support@surecall.com, or go to surecall.com and log on via online support to receive a Return Merchandise Authorization (RMA). - Page 13 TROUBLESHOOTING Problem Resolution Your booster restarted Each SureCall booster is equipped with Auto Shutdown and shut down for 15 to prevent cell tower interference. The outside antenna minutes, and is now shut may be close to a cell tower. Move the outside antenna to down permanently.
-
Page 14: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Frequently Asked Questions For a list of Frequently Asked Questions and a comprehensive, up-to-date Troubleshooting Guide, please visit our website at: www.surecall.com or call us at 1-800-365-6283. Obtaining Technical Support You can also consult a Cellphone-Mate technical specialist directly by emailing us at support@surecall.com... -
Page 15: Warranty
Cellphone-Mate. This warranty shall not apply to any products or parts thereof which have been subject to accident, negligence, alteration, abuse, or misuse. Cellphone-Mate makes no warranty whatsoever in respect to accessories or parts not supplied by it. SureCall Fusion-5 Cellphone-Mate, Inc. Page 15... - Page 16 If one or more provisions provided herein are held to be invalid or unenforceable under applicable law, then such provision shall be ineffective and excluded to the extent of such invalidity or unenforceability without affecting in any way the remaining provisions hereof. SureCall Fusion-5 Cellphone-Mate, Inc. Page 16...
-
Page 17: Specifications
RF Connectors: N Female, both ends Power Consumption: <50W Dimensions: 10.4 x 9 x 2.25 in. (26.41 x 22.86 x 5.71 cm.） Weight: 8.05 lbs. (3.65 kgs.) FCC ID (USA): RSNFUSION–5 SureCall Fusion-5 Cellphone-Mate, Inc. Page 17 All rights reserved. -
Page 18: Safety Information
Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. SureCall Fusion-5 Cellphone-Mate, Inc. Page 18 All rights reserved. - Page 19 Copyright © 2014. All Rights Reserved. All trademarks and registered trademarks are the property of their respective owners. Five-Band Wireless Adjustable Signal Booster / Kit User Guide January 29, 2014 (20130228) V1.3?? SureCall Fusion-5 Cellphone-Mate, Inc. Page 19 All rights reserved.
