Maintenance Practices
Page 208
30 Oct 09
Roller Bearing
Strike Plate
Strike Assembly
Pivot Pin
Strike Block

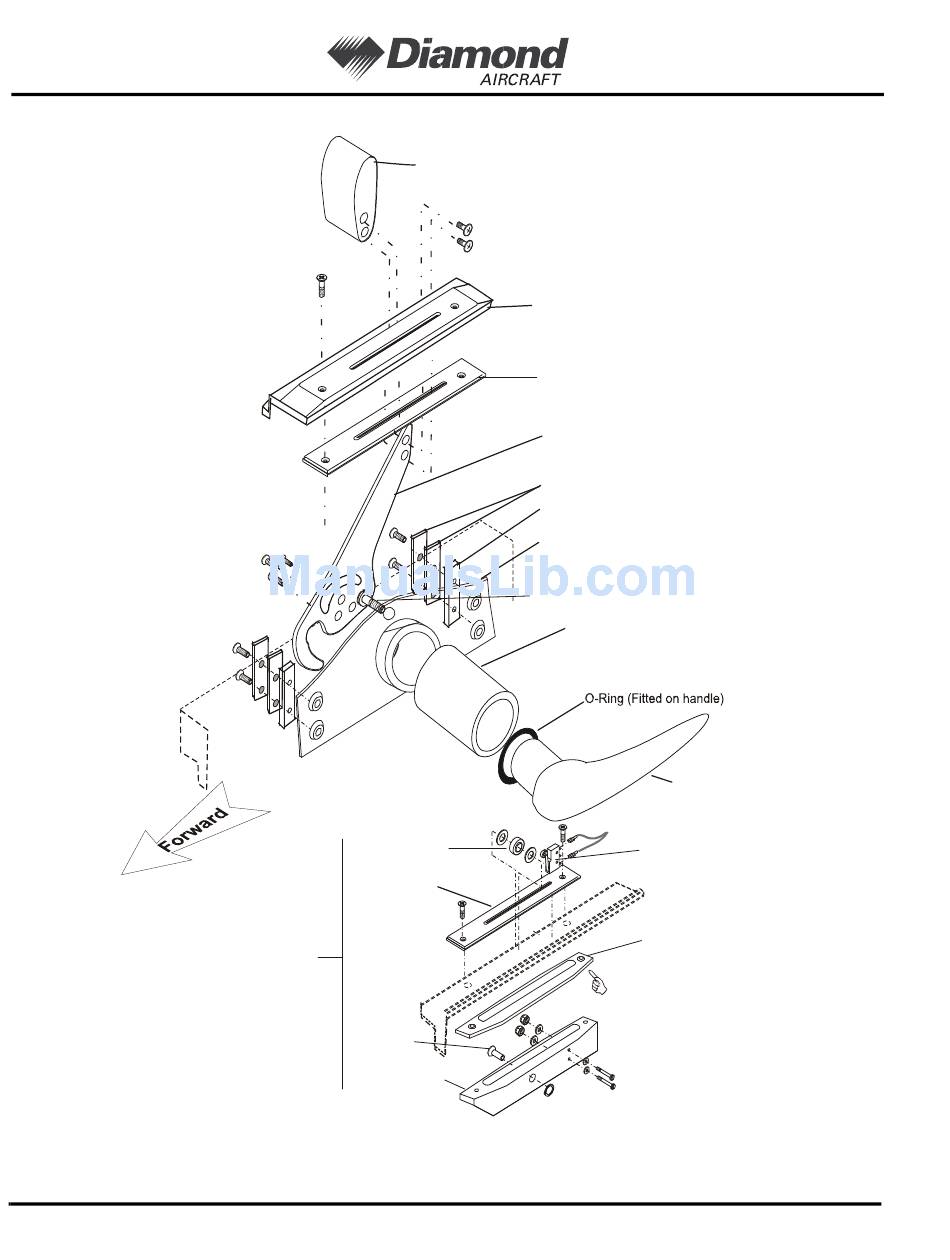

Figure 202 - Canopy Latch Installation with Outside Handles
52-10-00
Grip
Cover Plate
Guide Plate
Hook Assembly
Shim (s)
Spacing Block
Inner Side Plate
Travel Limiting Screw
Bronze Bushing
(non-removable)
DA20-C1 AMM
Outside Handle
Micro
Switch
Shim
DA201-C1
Rev 16
