DA20-C1 AMM
Maintenance Practices
Hook Assembly
Grip
Stop
Spacer
Outer Side Plate
Conical Washers
Spring Pin Housing
Inner Side Plate
Adjusting Screw
Roller Bearing
Micro
Switch
Strike Assembly
Shim
Strike Block
Pivot Pin

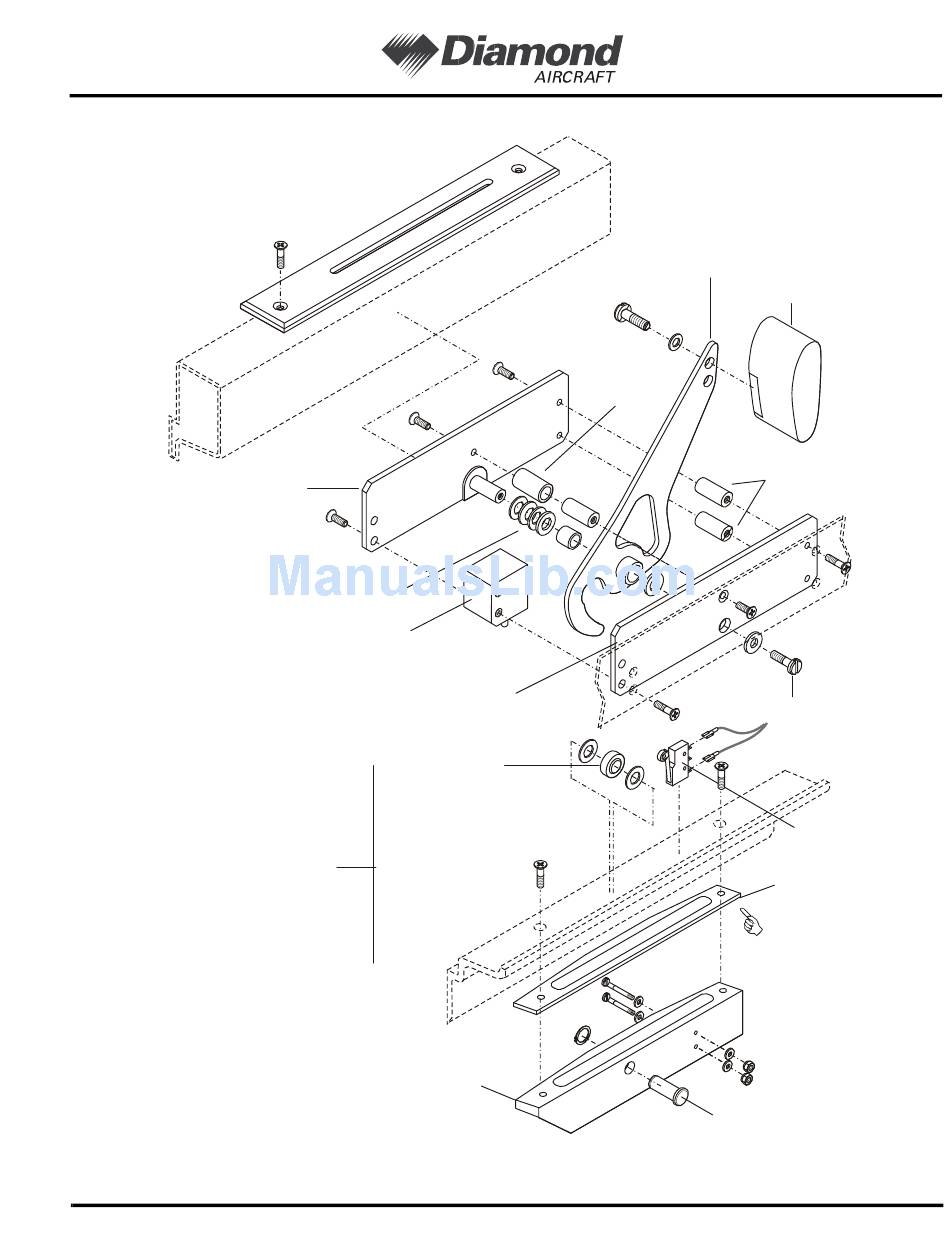

Figure 201 - Canopy Latch Installation without Outside Handles
Page 207
DA201-C1
52-10-00
30 Oct 09
Rev 16
