Standard Practices - Structures

LIMITED AREA 1

Repairs allowed on external

skin damage up to 250mm

(10 in) diameter

LIMITED AREA 2

Repairs allowed on external

skin damage up to 50mm

(2 in) diameter

PROHIBITED REPAIR AREA

Repairs to be carried out only by

the manufacturer or an approved

repair facility

NOTE: All dimensions are mm

VIEW LOOKING DOWN ON

BOTTOM SKIN OF FUSELAGE

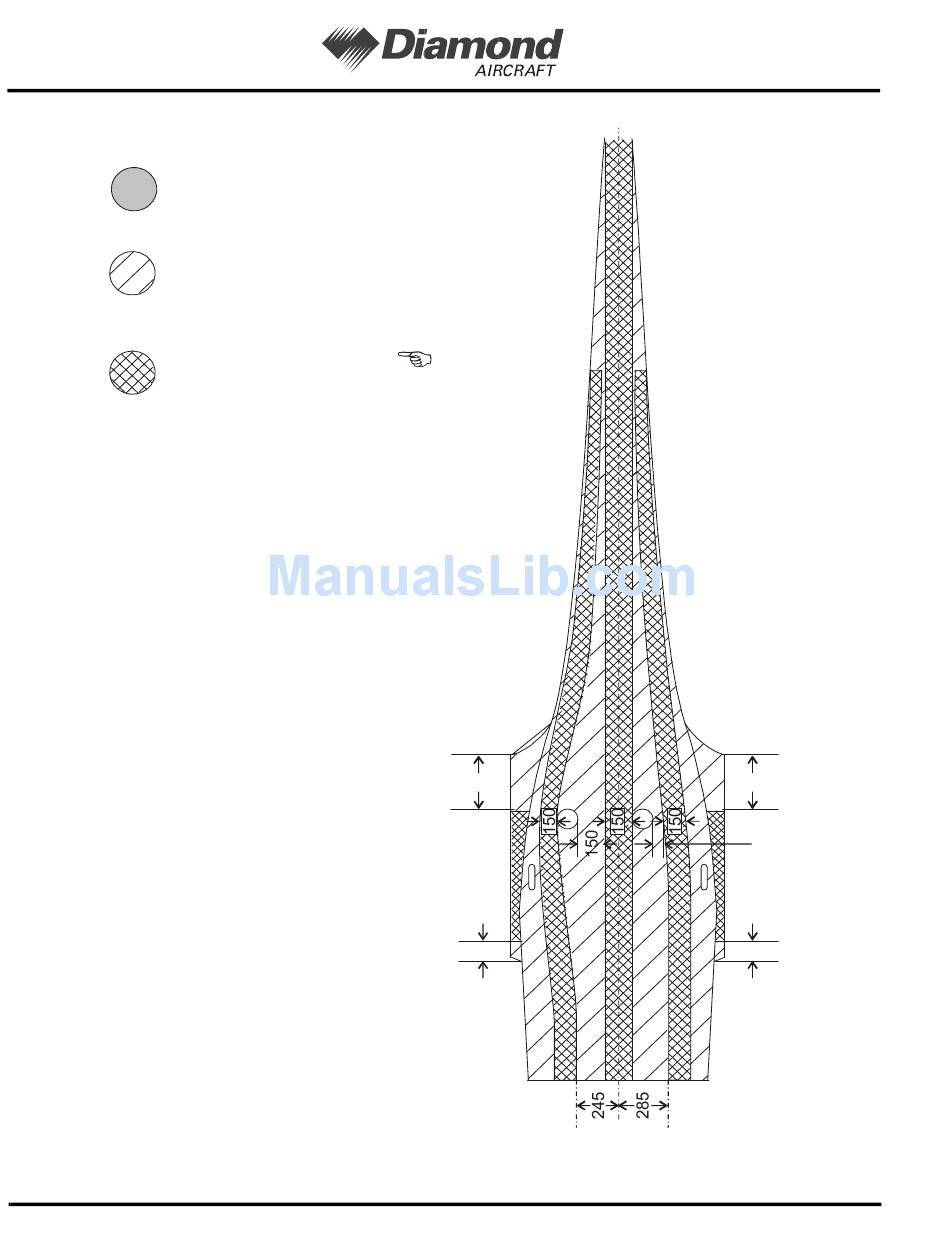

Figure 2 - Diagram Fuselage Bottom Skin Restricted Area Diagram
