p r o d u c t d a t a s h e e t
actuator
La32
Features and options:
• 24V DC permanent magnet motor
• Thrust up to 6000 N (with ball screw)
• Stainless steel piston rod
• High-strength plastic housing protects motor
and gears
• Elegant and compact design with small
installation dimensions
• Protection class: IPX1
• Colour: black
• 2250 mm straight cable with 6.3 mm jack plug
• Low noise level: 46 dB (A); measuring method
DS/EN ISO 3746, actuator not loaded
• LA32K with ball screw and double-acting brake
(i.e. push and pull/both directions)
• Protection class: IPX5 or IPX6
• Reed-switch for exact positioning (8 pulses per
spindle revolution)
• LA32 with 5mm. pitch F: Manual quick release
• LA32 with 5mm. pitch FH: Manual quick release
with dampened movement
• Mechanical splines function (push only)
• Electrical splines function, built-in micro-switch in
back fixture, the actuator can therefore only be
used for push. (Only on 01 and 02 back fixture)
• LA32K with ball screw and double-acting brake
(i.e. push and pull/both directions)
• LA32KAS with ball screw and safety nut
• LA32KSM with ball screw, safety nut and
mechanical splines
• Available with 0.2 m or 0.4 m coiled cable
• LA32JKSM available with 2-speed facility for the
LINAK JUMBO SYSTEM
• CS32; electronic limit switch (built-in)
Usage:
• Duty cycle: Max. 10% or 2 minutes continuous
use followed by 18 min. not in use
• Ambient temperature +5° to +40° C
• For use with LINAK control boxes CB8, CB12,
CB14 and CS16 PCB or internal CS32 PCB
• Should LA32 be used with a non LINAK control
unit, please ask the nearest LINAK
representative for further details
Accessories::
• CS16; electronic limit switch
• Optical encoder
• SLS: safety limit switch

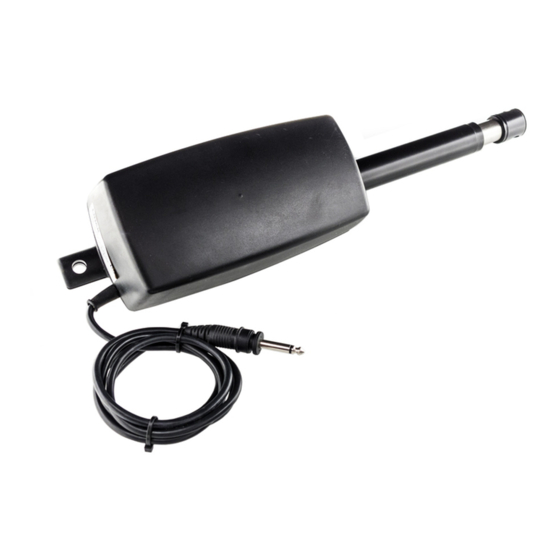

the La32 is a powerful actuator that can be
supplied with a ball screw spindle to give
outstanding performance. the ideal choice for a
wide range of applications including adjustment of
hospital beds.
the La32 has many special options including a
safety nut, splines, quick release (F) and an optional
protection class up to IpX6 standard.
