Summary of Contents for Numatic TTB 4055

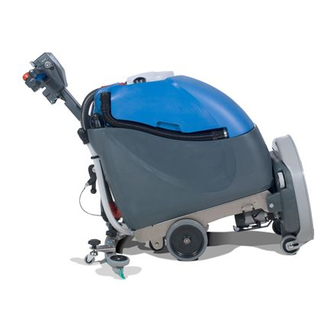

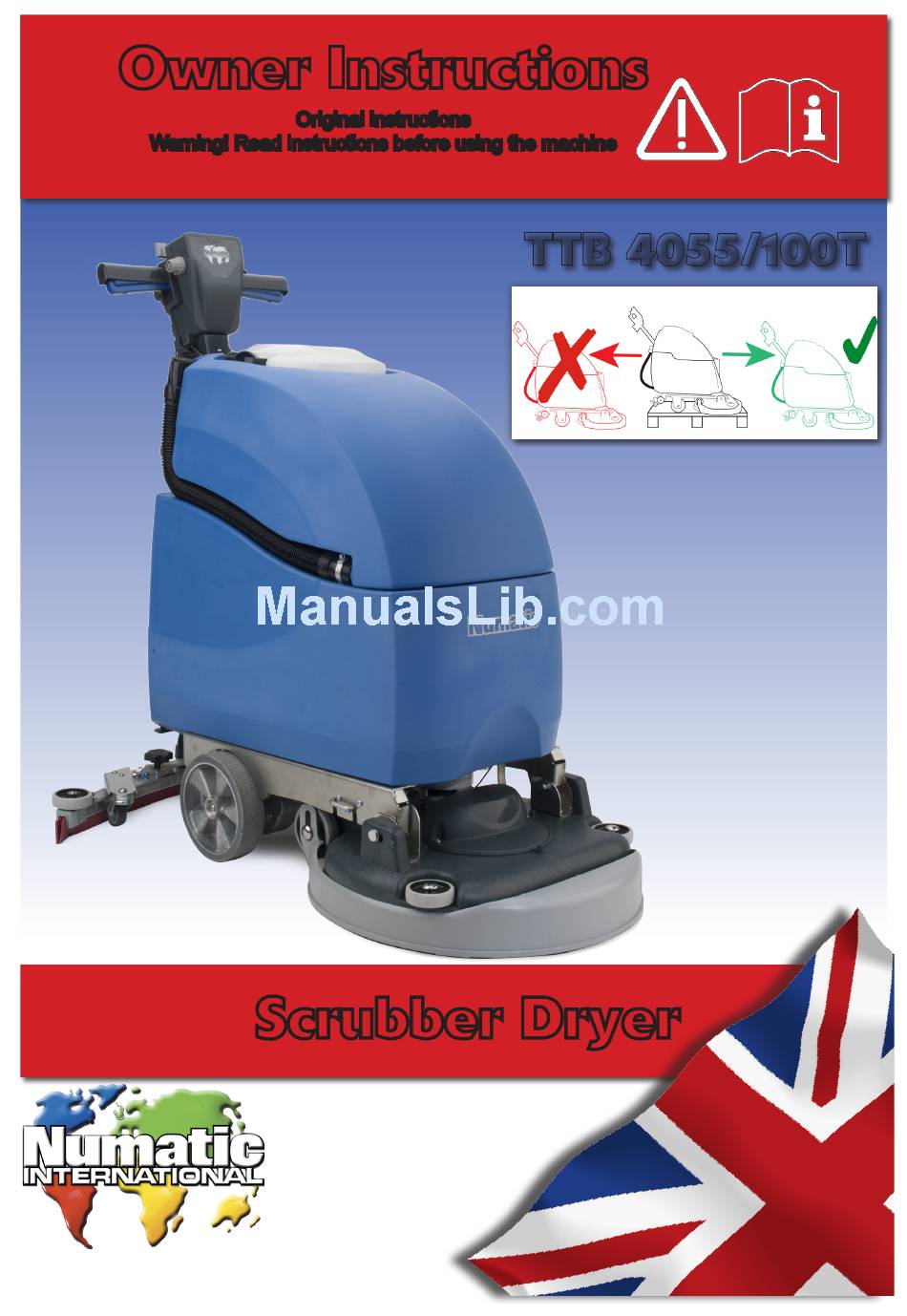

- Page 1 Owner Instructions Original instructions Warning! Read instructions before using the machine TTB 4055/100T Scrubber Dryer www.numatic.com...
-
Page 2: Table Of Contents
Before continuing, please refer to Quick Set Up Guide on Page 8 Index Page 2 Machine overview Page 3 Control panel overview Page 4 Rating label / Personal Protective Equipment / Recycling Page 5 Safety Precautions Page 6 / 7 Quick set-up guide Page 8 Machine set-up... -
Page 3: Machine Overview
Machine Overview 1. Fuse 2. Operator control panel ( see page 4 ) 3. Emergency Stop 4. Separator 5. Waste-water tank 6. Clean-water tank 7. Brush deck 8. Clean-water filter 18. Hour Meter 9. Free wheel lever 19. Isolator Key 10. -
Page 4: Control Panel Overview
Control Panel Overview Battery Charge Level Indicator Water Flow On / Off Button Handle Position Lever Hi / Lo Indicator On / Off Switch Brush Operation / Load Indicator On / Off Trigger Vacuum Indicator Charging Point Water Flow Indicator Emergency Stop Hi / Lo Button Cycle sequence button... - Page 5 Charging Lead: H05VV-F x 1.0 mm x 3 core Battery Charger: 220 - 240 Volt (50/60 Hz) Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical help line +44 (0)1460 269268...
- Page 6 Regularly examine the power cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use. • Only replace the power cord with the correct Numatic approved replacement parts. • Ensure that the work area is clear of obstructions and / or people.
- Page 7 8. The batteries are to be disposed of safely and in accordance with the battery directive. 9. Only use genuine Numatic replacement batteries. 10. Do not allow the batteries to become fully discharged; it may not be possible to recharge them.
-
Page 8: Quick Set-Up Guide
Fill the bottom tank (Clean Water) from a tap or hose pipe using the Flexi-Fill pipe fitted to the filler cap (Fig.8). Add non-foaming cleaning fluid as required (See page 11). The TTB 4055/100T has a water capacity of 40 Litres. Note: Great care must be taken to ensure that contaminants (leaves, hair, dirt, etc.) are not allowed to enter the... - Page 9 Fill the clean-water to a Max of 40 litres (see page 10) For operation and cleaning controls (see page 14) Fit the Brush / Pad (Fig.9). Push in the deck locking pin (Fig.10) and rotate the brush deck into the operating position (Fig.11).
-
Page 10: Fitting The Brushes
Featuring the Nulock brush system. The brush is simply pushed and twisted to lock, making fitting and removal a simple process. The Pad is retained using Numatic’s own PadLoc system (ask your supplier for details). Only use manufacturer supplied brushes. -
Page 11: Fitting And Lowering The Floor-Tool
It is easier to fit the floor-tool if the weight of the machine is resting on the brush. Ensure the brush is fitted first. Filling the clean-water tank The TTB 4055/100T is equipped with a 40 litre clean-water tank allowing large areas to be cleaning in a single fill. To fill the clean-water tank, use the 1 meter FLEXI - FILL pipe from either a tap or hose pipe (Fig.26). -
Page 12: Pre-Scrub Mode
(available if required) Pre-scrub mode The TTB 4055/100T has been designed to cope with a variety of floor types and different levels of soiling. On heavily soiled floors use a ‘double scrub’ technique. First pre-scrub the floor with the floor-tool in the raised position, allow the chemical time to work, then scrub the area a second time with the floor-tool lowered. -
Page 13: Setting The Cleaning Controls
Setting the cleaning controls To activate the machine from SLEEP MODE press either trigger once. The TTB 4055T has been fitted with a Hi - Lo mode, this reduces the noise produced by the vacuum motor by 3dB. To operate the Hi - Lo mode start the machine in the normal way. When the machine is running normally the Hi - Lo light will NOT be illuminated, this means the Vacuum motor is running at 100%. -
Page 14: Moving The Machine
Moving the machine Free Wheel / Transit Mode The TTB 4055/100T has a free wheel mode enabling the machine to be moved even when the battery has reached a low level. Move the Free Wheel Lever fitted to the left hand side of the... - Page 15 Regular Maintenance ALWAYS ENSURE THAT THE BATTERY IS DISCONNECTED PRIOR TO ANY MAINTENANCE OPERATION Emptying waste tank The TTB 4055T has been designed with ease of use in mind, this included easy stripping-down and cleaning. After use, empty waste-water tank using emptying hose and flush-out with clean water (Fig.37).
-
Page 16: Changing The Floor-Tool Blades
Changing the Floor Tool Blades ALWAYS ENSURE THAT THE BATTERY IS DISCONNECTED PRIOR TO ANY MAINTENANCE The floor-tool The TTB range is provided with the aluminium floor-tool shown. Fig.46 To clean the floor-tool, remove securing-pin and pull-free from the holder, disconnect the lifting strap (see Page 11). -
Page 17: Battery Care
If the battery-charge level is allowed to discharge to the point that only one red light remains illuminated, the operator should either replace or charge the battery. The battery supplied with the TTB 4055/100T allows for a run time of 145 mins approx (Hi Mode), when fully charged. -
Page 18: Hour Meter
Under abnormal use; i.e. leaving the machine without charging for a period of time - we advise that you follow these steps: Replace with Numatic approved part (221107) 50 amp fuse. If the machine will be standing unused for a period of 30 days or more, then batteries must be fully charged and battery fuse be removed using the Maxi fuse-puller provided, prior to this period. -
Page 19: Specifications
Specifications TTB 4055/100T Brush Motor Vac Motor Brush Sizes Weight Protection Class Power sizes 400W 400W 550mm 500mm 142Kg IPX4 2 x 12V (24V) 100Ah Cleaning Hand Arm Fluid Flow Speed Recharge time Drive Motor Noise Size Speed Vibration Width - 560mm... -
Page 20: Wiring Diagrams
Wiring Diagram TTB- 4055/100T DRW-11389 (A06) 06:11:2012... -
Page 21: Trouble Shooting
Trouble Shooting PROBLEM CAUSE SOLUTION Machine will not operate Missing or blown fuses Fit or replace fuse (page 18) Battery not connected Connect battery (page 8) Low battery charge Charge batteries (page 17) Traction drive will not operate Free Wheel mode engaged. Change mode to drive (page 14) Vacuum will not operate Vacuum not turned on... - Page 22 Machinery Directive 2006/42/EC EMC Directive 2004/108/EC RoHS Directive 2011/65/EU Machine Description: Scrubber Dryer Type: TTB, ETB series Manufactured by: Numatic International Limited Relevant standards upon which conformity is declared include: IEC 60335-1:2010 IEC 60335-2-72:2002 +A1 EN 55014-1:2006 EN 55014-2:1997/A2:2007 IEC 62233:2005 A technical construction fi le for this equipment is retained at the manufacturer’s address under the authorisation of the...
-
Page 23: Warranty
Warranty... - Page 24 Floor Tool Fuses Isolator Pin Hose Hook 38mm / 32mm Adaptor Signed Distributed by Numatic International Limited, Chard, Somerset, TA20 2GB, ENGLAND. Telephone 01460 68600 Fax: 01460 68458 www. numatic.co.uk Subject to change without prior notice. 244065 / 06/13 (A07)
