Owner Instructions
Original instructions
Warning! Read instructions before using the machine
TTB 1840
www.numatic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTB 1840 and is the answer not in the manual?

Questions and answers

Related Manuals for Numatic TTB 1840

Summary of Contents for Numatic TTB 1840

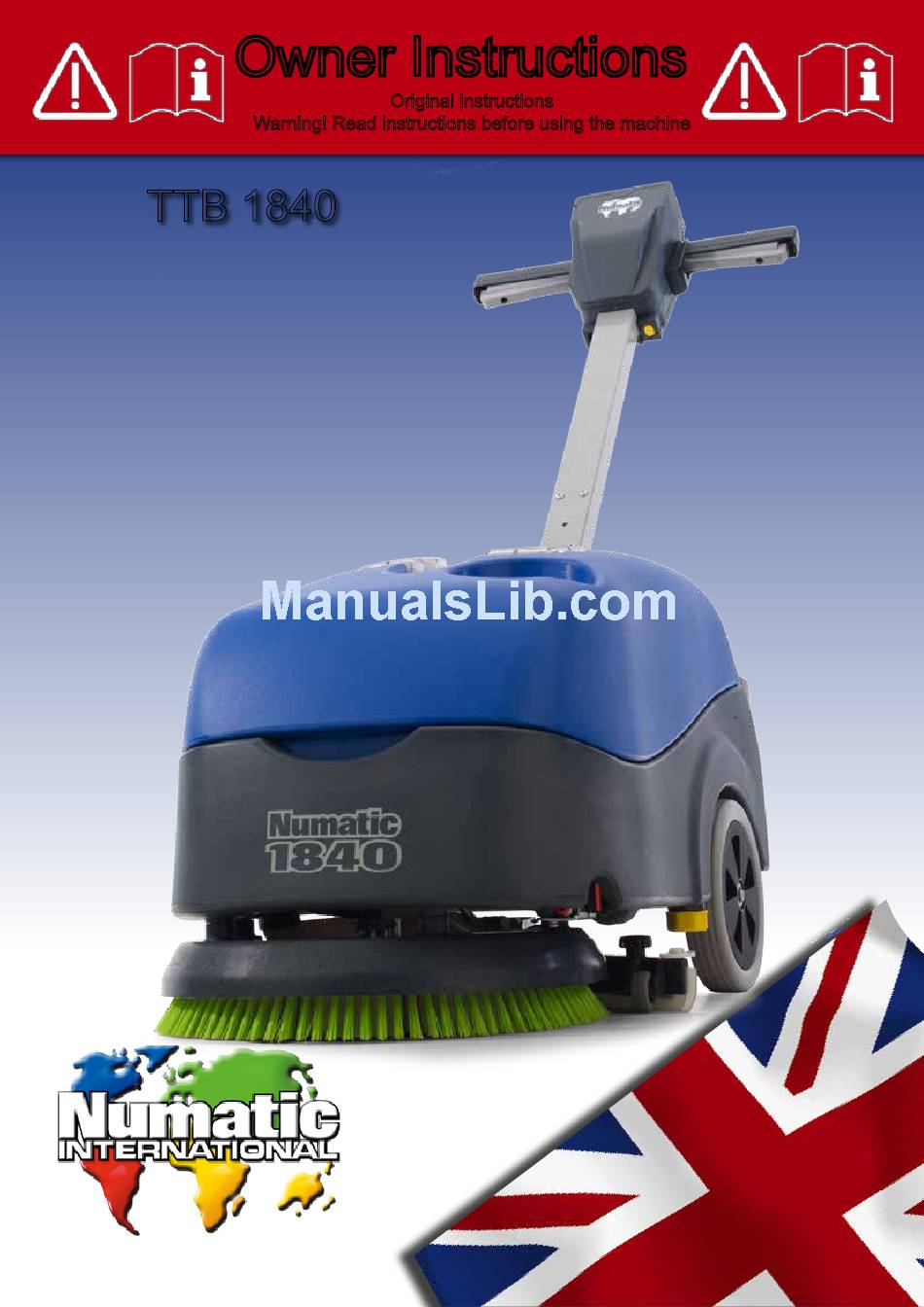

  • Page 1 Owner Instructions Original instructions Warning! Read instructions before using the machine TTB 1840 www.numatic.com...

  • Page 2: Table Of Contents

    Before continuing, please refer to Quick Set Up Guide on Page 8 Index Page 2 Machine overview Page 3 Control panel overview Page 4 Rating label / Personal Protective Equipment / Recycling Page 5 Safety Precautions Page 6 / 7 Quick set-up guide Page 8 Machine set-up...

  • Page 3: Machine Overview

    Machine Overview Operator control panel ( see page 4 ) Vacuum hose Triggers Separator Waste-water tank Clean-water filler cap Clean-water tank Clean-water level indicator Brush deck Clean-water tank fill point Squeegee blades On / Off switch Floor-tool retaining knobs Battery connector Clean-water On / Off tap Top tank (waste water) drainage hose Clean-water emptying cap...

  • Page 4: Control Panel Overview

    Control Panel Overview Battery Charge Level Meter Mode Select Button Hi / Lo Indicator Water Flow On / Off Button Brush Operation / Load Indicator Handle Position Lever Vacuum Indicator On / Off Switch Water Flow Indicator Triggers Hi / Lo Button For full instructions on control panel set up and use, see machine operation set-up page 14.
  • Page 5 A risk assessment should be conducted to determine which PPE should be worn. Safety Critical Component: Charging Lead: H05VV-F x 1.0 mm x 3 core Battery Charger: 220 - 240 Volt (50/60 Hz) In the event of a breakdown contact your Numatic dealer or the Numatic Technical help line +44 (0)1460 269268...
  • Page 6 Children should be supervised to ensure that they do not play with the appliance. If this product does not have a factory installed Numatic battery charger and batteries then it is the responsibility of the owner and user of the product to ensure that the charging system and battery combination are compatible, fit for purpose and safe to use.
  • Page 7 8. The batteries are to be disposed of safely and in accordance with the battery directive. 9. Only use genuine Numatic replacement batteries. 10. Do not allow the batteries to become fully discharged; it may not be possible to recharge them.

  • Page 8: Quick Set-Up Guide

    Quick Set-Up Guide PLEASE READ BEFORE COMMENCING ANY OPERATION AFTER THE REMOVAL OF ALL THE PACKAGING, CAREFULLY OPEN AND CHECK THE CONTENTS. ENSURE THE BATTERIES ARE CHARGED BEFORE USE. Using the handle position lever, move the handle into the upright position (Fig.1).

  • Page 9: Fitting The Floor-Tool

    Machine Set-Up ALWAYS ENSURE THAT THE BATTERY IS DISCONNECTED BEFORE MAKING ANY ADJUSTMENTS Fitting the brushes Featuring the Nulock brush system. The brush is simply pushed and twisted to lock, making fitting and removal a simple process. Only use manufacturer supplied brushes. This machine requires a 400mm brush or a 360mm pad.

  • Page 10: Filling The Clean-Water Tank

    Machine Set-Up Filling the clean-water tank The TTB 1840 is equipped with a large 18 litre clean-water tank allowing large areas to be cleaned in a single fill. To fill the clean-water tank, remove the filler cap (Fig.10). Fill using a hose, bucket or a suitable container (Fig.11).

  • Page 11: Control Of Substances Hazardous To Health (Coshh)

    Do not operate machine unless the Operator Manual has been read and fully understood. Pre-cleaning advice Before performing the cleaning operation, place out appropriate warning signs and sweep or dust-mop the floor (Fig.16). Numatic part (629044) Wet Floor sign (available if required)

  • Page 12: Moving The Machine

    Machine Set-Up Moving the machine CAUTION When moving or lifting the TTB 1840, follow the national safety guidelines on lifting. When the bottom tank (clean water) is full the machine can be tilted to a maximum of 45 (Fig.17). When the top tank (waste water) is full the machine can be tilted to a maximum of 10 for transporting to dumping area (Fig.18).

  • Page 13: Floor-Tool In Use

    Machine Operation Pre-scrub mode The TTB 1840 has been designed to cope with a variety of floor types and different levels of soiling. On heavily soiled floors use a ‘double scrub’ technique. First pre-scrub the floor with the floor-tool in the raised position (Fig.21), allow the chemical time to work, then scrub the area a second time with the floor-tool lowered.

  • Page 14: Setting The Cleaning Controls

    Setting the cleaning controls To activate the control panel: press the Mode select button or press a trigger (Fig.26). To start: hold down either Trigger and press the On / Off Switch once (Fig.26). Whilst the brush motor is running press the water flow On / Off Button for fluid control (Fig.27a), the clean water On / Off tap must be open.

  • Page 15: Clean-Water Tank

    ALWAYS ENSURE THAT THE BATTERY IS DISCONNECTED PRIOR TO ANY MAINTENANCE OPERATION The TTB 1840 has been designed with ease of use in mind, this included easy stripping-down and cleaning. After use, empty waste-water tank using emptying hose and flush-out with clean water.

  • Page 16: Replacing The Waste-Water Tank

    Regular Maintenance Removing the Clean Water Tank Once the clean-water tank has been emptied, the tank can be removed. Firstly detach the water feed pipe from the tap, this can be done by pushing the red tap clip in whilst pulling off the pipe. (Fig.35). The black suction hose from the floor-tool simply pulls off the floor-tool (Fig.36).

  • Page 17: Changing The Floor-Tool Blades

    Refit the floor-tool using the two central knobs to the floor-tool. Refer to Page 9 for fitting instructions. 1. Floor-tool main body 2. Blade carrier 3. Rear blade 4. Front blade (slotted) 5. Retaining Knobs x 4 Use Genuine NUMATIC spare parts. use Replacement Blade Set (606261)

  • Page 18: Battery Care

    Removing the battery pack fuse The battery pack comes fitted with a 40 amp safety fuse (Fig.50). Replace the fuse using (208526) Numatic approved part (Fig.51). Recharge the machine fully after its last use. Do not leave the machine in a discharged state.

  • Page 19: Machine Charging

    Spare replacement batteries are available from your supplier. See TTB 1840 Spares list for part numbers. The TTB 1840 come with its own stand-alone charger. Insert the charging lead required for your country into the charger. Connect the charger to a suitable power supply.
  • Page 20 CHARGER PACK (CSA) 208526 REPLACEMENT 40AMP FUSE 606276 CHARGER PACK (SOUTH AFRICA) 208455 M5 KNOB (BLACK) 606277 CHARGER PACK (AUS) 208537 CONSTANT TENSION CLIP (VAC HOSE) Specifications TTB 1840 Brush Brush Net Weight Gross Protection Run Time Power Motor Motor Sizes sizes (inc.
  • Page 21 To much load on the brush system Reset the machine and decrease the brush load operating to best suit the floor type (page 14) Blown fuse in Battery pack Replace 40 Amp fuse (page 18) TTB 1840 - Schematic Diagram...
  • Page 22 EU Directives: Machinery Directive 2006/42/EC EMC Directive 2004/108/EC RoHS Directive 2011/65/EU Machine Description: Scrubber Dryer Type: TTB 1840 series Manufactured by: Numatic International Limited Relevant standards upon which conformity is declared include: IEC 60335-1:2010 IEC 60335-2-72:2002 +A1:2005 +A2:2006...

  • Page 23: Warranty

    Warranty...
  • Page 24 TTB 1840 This machine has been packed with the following: Charging Lead + Charger Brush / Pad Floor Tool Battery Pack Signed Distributed by Numatic International Limited Chard, Somerset TA20 2GB ENGLAND. Telephone 01460 68600 Fax: 01460 68458 www.numatic.co.uk Subject to change without prior notice.
