Numatic floorcare tt 1840 Troubleshooting Manual

Hide thumbs Also See for floorcare tt 1840:
Table of Contents

Advertisement

Quick Links

FloorCare

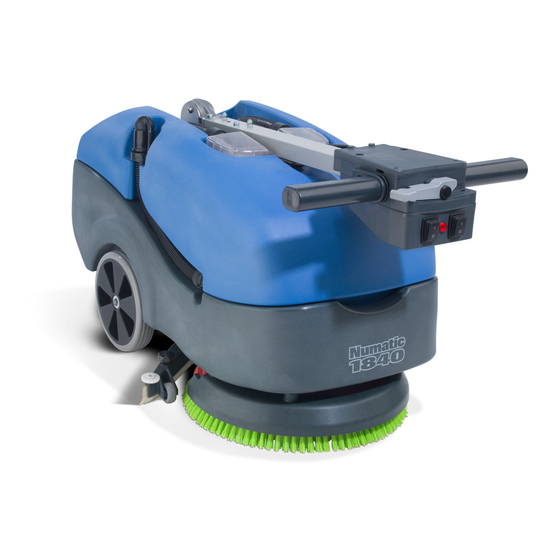

The 1840 has been designed to scrub and dry a variety of hard floors.
This machine has not been designed to pick up large objects, make sure you pre-sweep the floor before use.
For optimum performance make sure you keep the filters, hoses and floor tool blades clean and free from debris.
Disconnect from the power supply or remove the battery BEFORE commencing cleaning or maintenance.
PROBLEM
CAUSE
Machine will not operate.
Missing or blown fuses.
Battery not connected.
Low battery charge.
Vacuum will not operate.
Vacuum not turned on.
Poor water pick-up.
Waste-water tank full.
Blocked vacuum hose.
Loose hose.
Basket filter blocked.
Separator filter blocked.
Poor separator seal.
Damaged separator seal.
Damaged vacuum hose.
Damaged floor-tool blades.
Low battery charge.
No brush / Scrub function.
No brushes fitted.
Brush overloaded.
Little or no water flow.
Clean-water tank empty.
Clean-water tank filter blocked.
Incorrect water flow setting.
Machine just 'stops' while
To much load on the brush system.
operating.
Blown fuse in battery pack.
It is recommended you strip and
thoroughly clean the machine and its
components regularly.
At least weekly to avoid operating
troubles and machine breakdowns.
Fitting Brush, Filling Machine, Water Tap, Raising the Floor Tool
Draining Top Tank, Draining Bottom Tank, Clean Water Filter
Trouble Shooting and Help Guide
TT / TTB 1840
SOLUTION
Replace
fuse.
Connect Battery.
Charge.
Turn on.
Empty.
Clean.
Tighten.
Clean.
Clean.
Clean and refit.
Renew.
Renew.
Renew.
Recharge.
Check and fit.
Reset.
Fill.
Clean.
Adjust tap as desired
Reset, decrease the brush load.
Replace 40 Amp fuse.
Using Machine, Brush Overload, Battery Fuse
Clean Separator, Removing Top Tank
After every time the machine is used.
The machine should be left in a clean and tidy state, drain
all fluids, clean all filters, pipes and place the
Storage, Cleaning Floor tool and Inlet tube
Remove Bottom Tank, Re-assembling Machine
Make sure you read and fully
understand your 1840 manual
before using the machine.
battery on charge.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the floorcare tt 1840 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Numatic floorcare tt 1840

Summary of Contents for Numatic floorcare tt 1840

  • Page 1 Trouble Shooting and Help Guide Make sure you read and fully FloorCare understand your 1840 manual TT / TTB 1840 before using the machine. The 1840 has been designed to scrub and dry a variety of hard floors. This machine has not been designed to pick up large objects, make sure you pre-sweep the floor before use. For optimum performance make sure you keep the filters, hoses and floor tool blades clean and free from debris.
  • Page 2 Fitting brush, Filling machine, Clean water tap and Raising floor tool... Index page... Fitting the brush... Filling tank... Fill gauge... Moving when full... The machine uses a 400mm brush or a Remove the filler cap and fill using a hose, Fitted to the clean water inlet When the clean water tank is full the machine 360mm pad drive.
  • Page 3 Heavy brush load decreases the available battery run time. Battery Pack Fuse... The battery pack comes fitted with a 40 amp fuse, replace the fuse using Numatic approved part (208526) if required. Fitting Brush, Filling Machine, Water Tap, Raising the Floor Tool...
  • Page 4 Brushes, Floor tool and Inlet tube... Index page... Storage ... Numatic recommend you leave your 1840 resting on the brush if leaving for machine for short periods of time. This saves distorting the squeeze blades. Remove the brush and floor tool if you are leaving the machine for extended periods of time.
  • Page 5 Regular Maintenance... If you require further training or Index page... assistance contact your supervisor Drain Bottom (Clean Water) Tank Drain Top (Waste) Tank Located on the left of the machine is the yellow bottom tank drain cap. Drain the clean water tank if leaving your machine for a extended period. Note...
  • Page 6 Regular Maintenance... If you require further training or Index page... assistance contact your supervisor Remove and clean the separator... The separator has a sealing rubber which should be cleaned and inspected at every cleaning of the machine (fig 1). Also remove the two filters clipped into the separator and flush with clean water. Replace by fitting the rear of the filter first then clipping the front to lock in place (fig 2).
  • Page 7 Regular Maintenance... If you require further training or Index page... assistance contact your supervisor Removing the bottom (clean water) tank... Once the Bottom (clean water)Tank has been emptied the tank can be removed, this involves firstly disconnecting the water feed pipe from the clean water tap.

  • Page 8: Battery Care

    Leave the machine empty and clean... Manufactured by Open the separator and let the machine air dry... Numatic International Only leave the machine resting on the brush and floor tool for short periods of time... Chard, Somerset. TA20 2GB 01460 68600...

This manual is also suitable for:

Floorcare ttb 1840
