The user interface I/O is for processing of binary input signal and to control (settings) of
binary output signal. Binary output is not switched to ground in the default configuration.
Maximum load binary output is 30 V / 100 mA. The constant current supplied by the binary
input is 3 mA.
Connector I/O cable connect into the I/O connector on the router head and tighten locking
screws (see figure below).
Circuit example of a binary input or output equipment with router:
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de

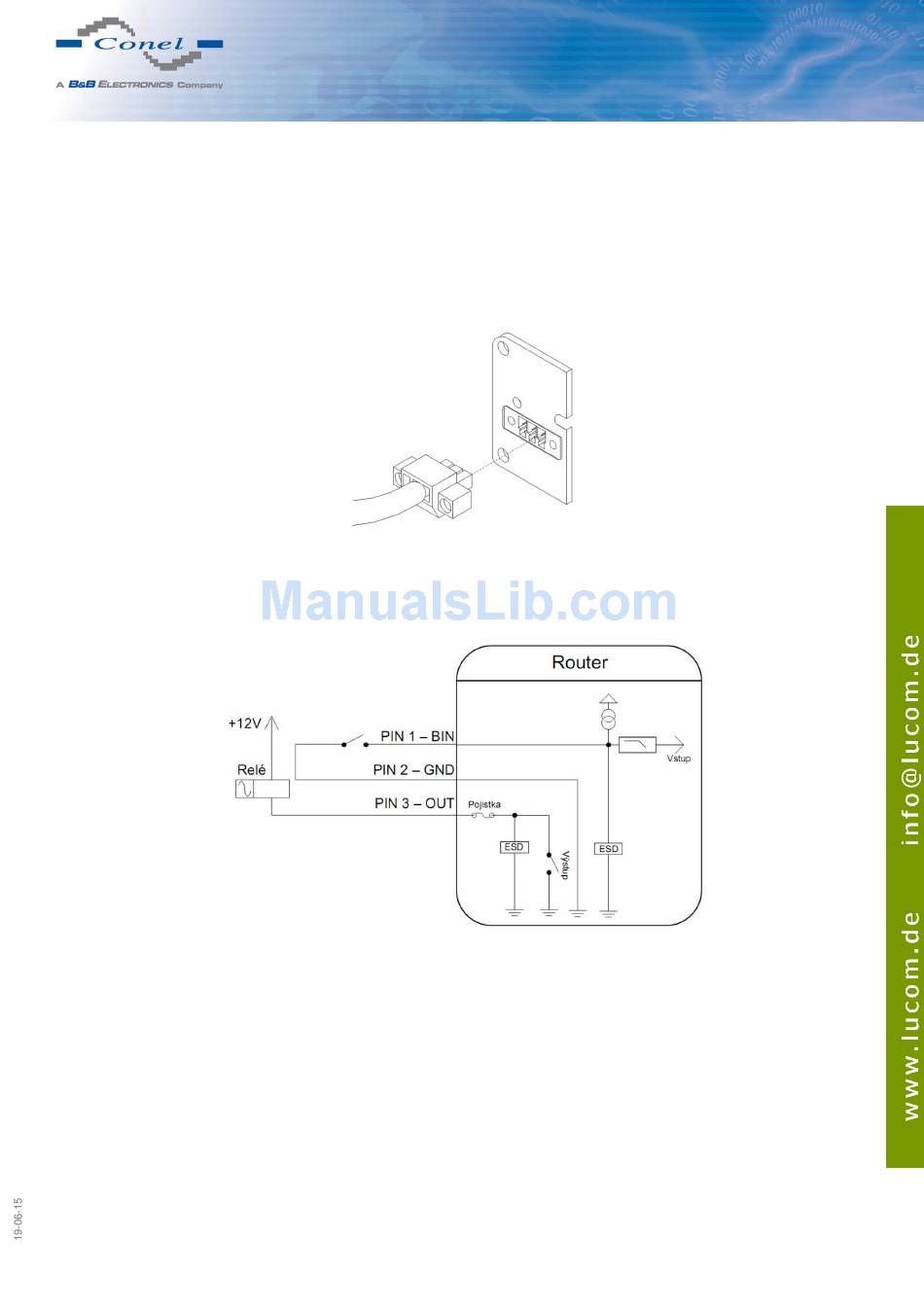

Figure 26: Connection of I/O cable
Figure 27: Connection of input and output to the router
5. ROUTER DESIGN
