5.8.4 SIM card reader

The SIM card reader for 3 V and 1,8 V SIM cards is located on the front panel of the router.
To initiate the router into operation it is necessary to insert an activated SIM card with un-
blocked PIN in the reader. The SIM cards might be of different adjusted APN (Access Point
Name).
Changing the SIM card:
Before handling of the SIM card turn off the router and disconnect it from power supply.
Press the small yellow button to eject the reader holder. Insert the SIM card into the reader
holder and slide it in the reader (see figure below).
5.8.5 Ethernet port
Panel socket RJ45.
Pin Signal mark
1 TXD+
2 TXD-
3 RXD+
4 —
5 —
6 RXD-
7 —
8 —
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de

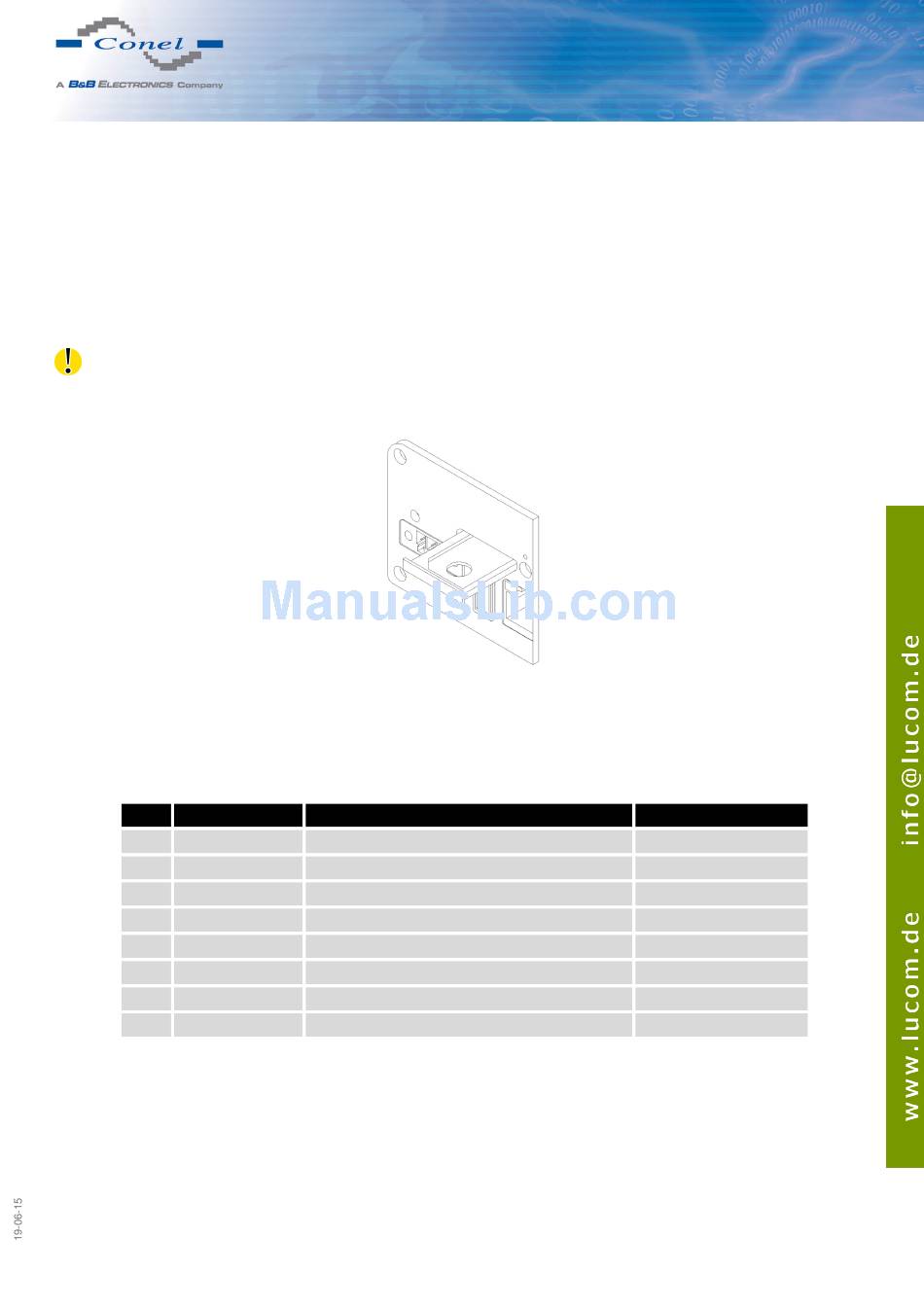

Figure 16: Ejected SIM holder
Description
Transmit Data – positive pole
Transmit Data – negative pole
Receive Data – positive pole
—
—
Receive Data – negative pole
—
—
Table 8: Connection of Ethernet connector
16
5. ROUTER DESIGN
Data flow direction
Input/Output
Input/Output
Input/Output
Input/Output
