Example of connecting devices with serial interface to the USB:
Example of connecting of USB flash disk to the USB:
5.8.9 I/O Port
Panel socket 3pin.
Pin Signal mark
1 BIN0
2 GND
3 OUT0
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de

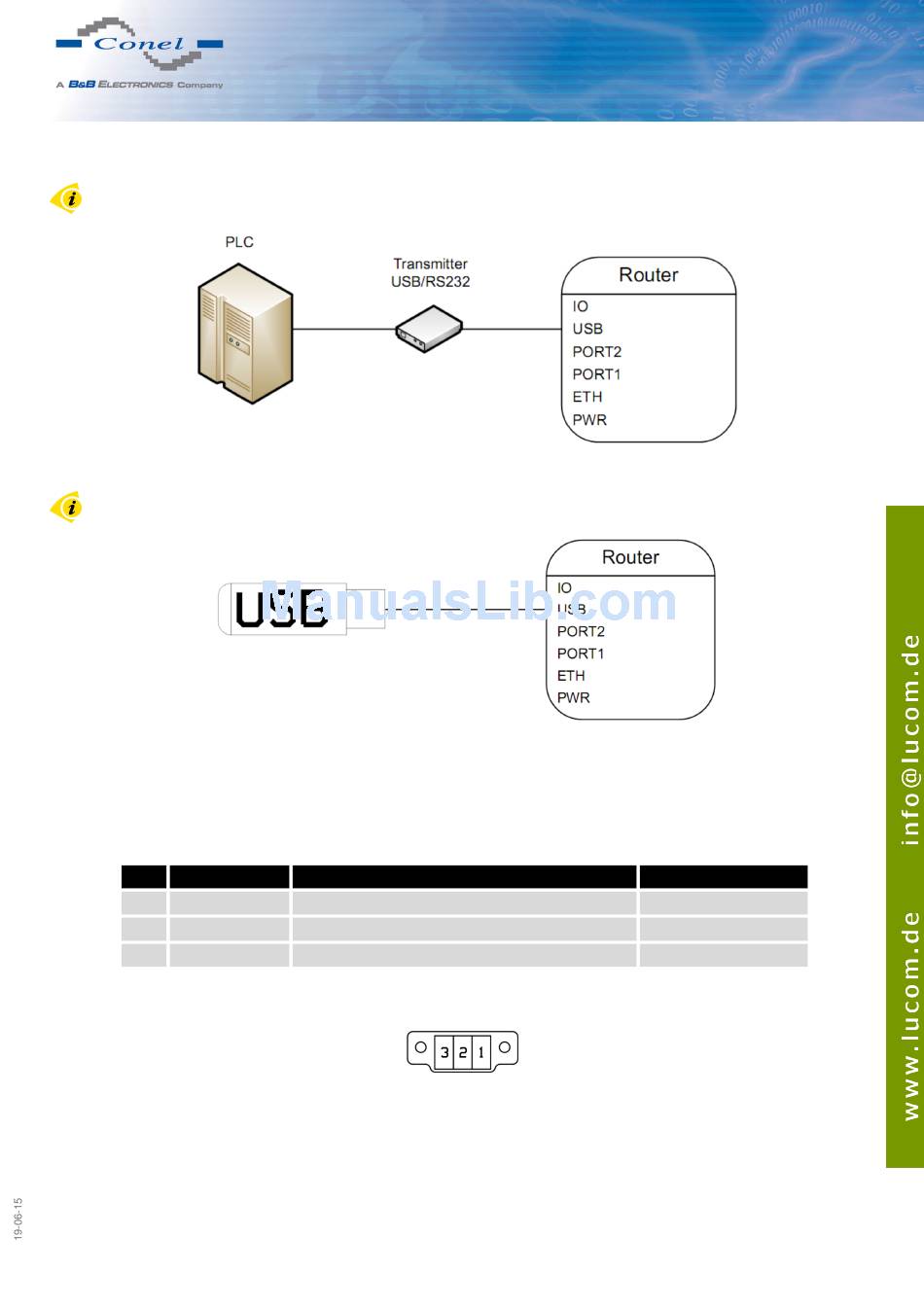

Figure 23: Connection PLC to the router
Figure 24: Connection flash memory to the router
Description
Binary input
Signálová zem
Binary output
Table 10: Connection of I/O port
Figure 25: I/O connector
5. ROUTER DESIGN
20
Data flow direction
Input
Output
