SRa5P and SRa Dual Receivers

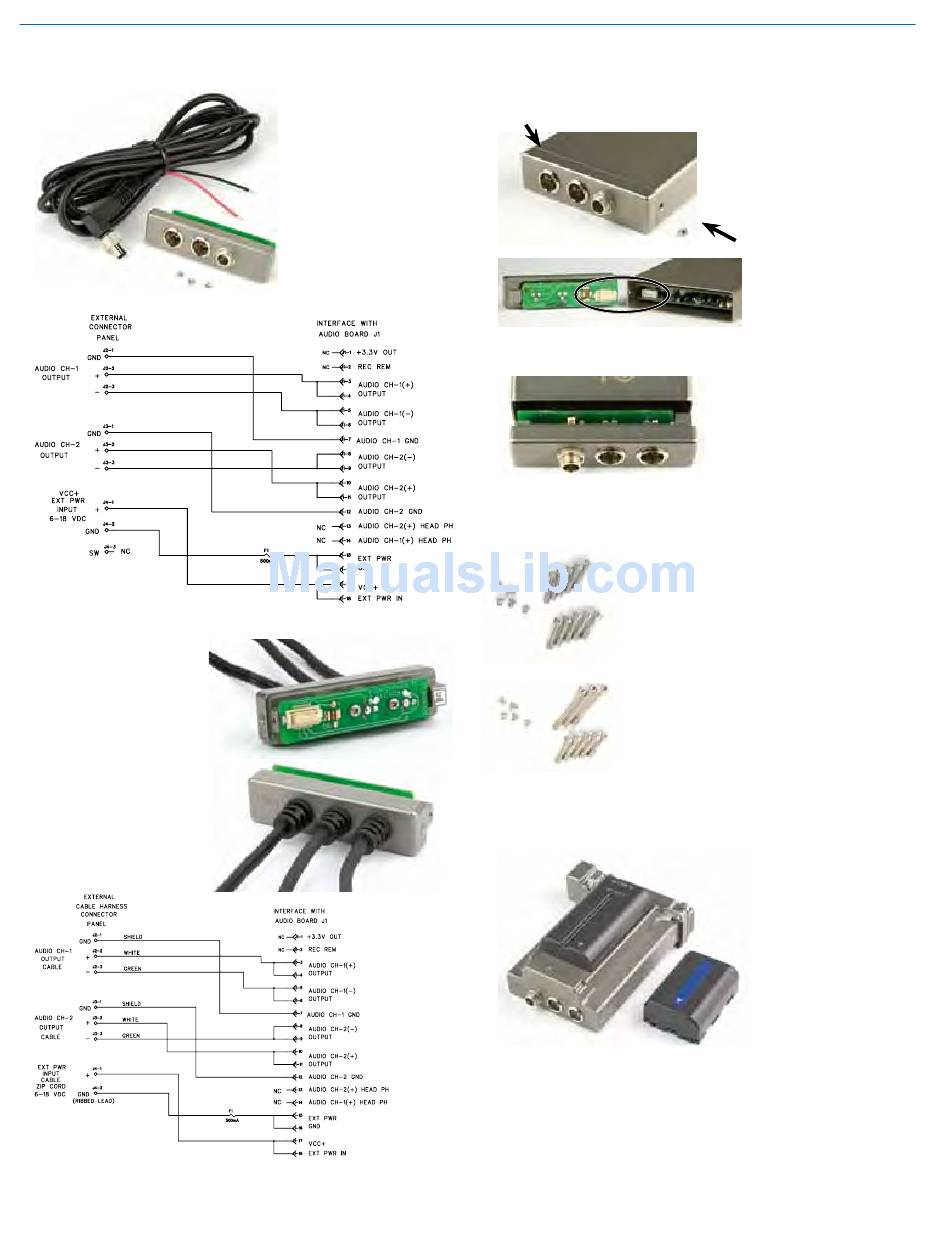

Adapters for Stand-alone Use

SREXT
SRHARNESS
Ideal for use in por-
table "bag systems."
Two balanced output
cables and the power
cable are 6 feet long.
Cut the cables to the
desired length and
terminate as needed.
10
For stand-alone use,
this kit includes a
rear panel with two
TA3 male jacks for
the balanced out-
puts and a power
jack with a locking
connector. Trim the
power cable to the
desired length.

Installing Rear Panel Adapters

Installation of the rear panel output/power adapters is
the same for all models.
Replacement Screw Kits

Battery Adapter

plate and accepts L and M type video camera recharge-
able batteries. The adapter sled does not include
charging circuitry. Batteries must be recharged with
their respective chargers.
The unit has an integral circuit that automatically selects
between the battery or the external source, whichever
delivers the highest voltage.
Panels are held in
place by two phil-
lips head screws
on the sides of the
housing.
Connections
between the panel
and main circuit
board are made
via miniature mat-
ing connectors.
Align the mating
connectors and
slide the panel
straight into the
housing until the
screw holes align
with the housing.
SRSNYSCREWKIT
Contains:
5 - #28863 (smaller mid-length)
5 - #28864 (larger mid-length)
5 - #28869 (shortest)*
* For Housing
SRUNISCREWKIT
Contains:
3 - #28862 (longest)
5 - #28864 (mid-length)
3 - #28869 (shortest)*
* For Housing
The receiver can be
powered with an
optional "battery
sled" adapter that
attaches to the
outside of the
housing (Lec-
trosonics Model
SRBATTSLED).
The adapter
includes an inte-
grated connector
