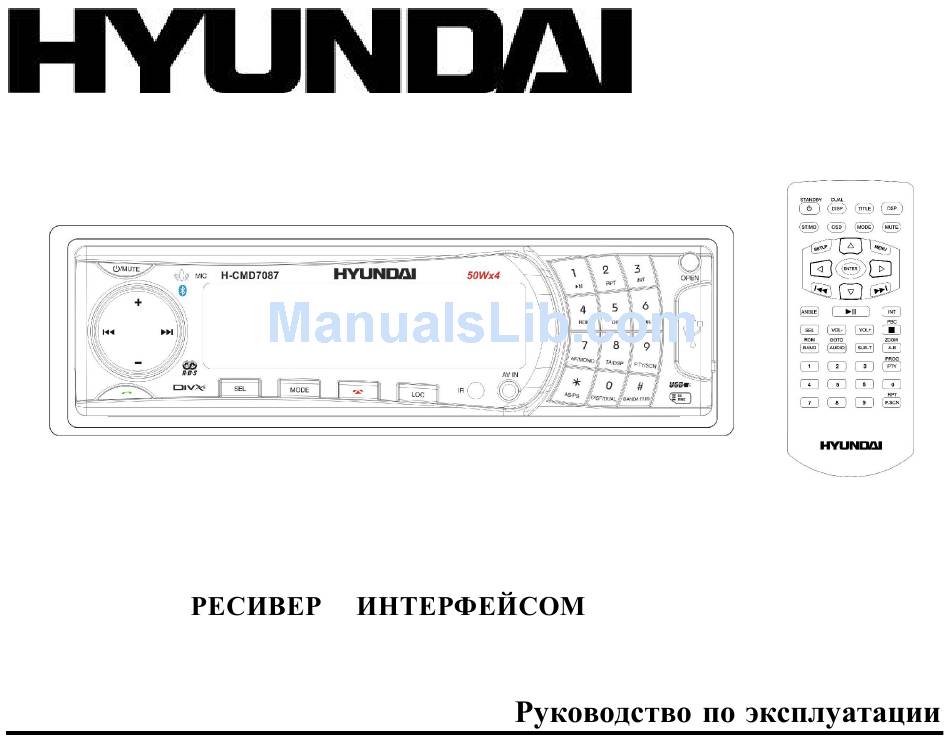

H-CMD7087
DVD/CD/MP3 RECEIVER WITH BLUETOOTH
DVD/CD/MP3-
C
BLUETOOTH
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H-CMD7087

Summary of Contents for Hyundai H-CMD7087

  • Page 1 H-CMD7087 DVD/CD/MP3 RECEIVER WITH BLUETOOTH DVD/CD/MP3- BLUETOOTH Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ...............................2 Important safeguards ............................3 Accessories................................4 Installation/connection............................5...

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature. Use the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen and other components of device and can result an outage.

  • Page 4: Accessories

    Accessories Receiver 1 pc Remote controller 1 pc Panel protective case 1 pc AV cable 1 pc USB cable 1 pc ISO cable 1 pc Mounting parts: Release keys 2 pc Screw 1 pc Bolt 4 pc Washer 2 pc 1 pc Mounting strap 1 pc...

  • Page 5: Installation/Connection

    Installation/connection Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation. 2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
  • Page 7 Trim frame installation To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being installed, the side with the groove should face down and fixed first.
  • Page 8 Attaching the control panel 1. Insert the right side of the control panel into the main unit (pic. 3). 2. Press the control panel on to the left side of middle of it until a “click” sound is heard (pic. 4). Pic.
  • Page 9 Electrical connection Caution: For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car dealer before installing this unit. Notes: 2 cable is connected to a Hands-Free device (not included).
  • Page 10 The parking wire is connected with brake signal; for safety, the programs can be seen on the monitor after braking the car.

  • Page 11: Panel Controls

    Panel controls Front panel 1. PWR/MUTE button 2. Microphone 3. 1/PLAY/PAUSE button 4. 4/RANDOM button 5. 2/RPT button 6. 5/DIR- button 7. 3/INT button 8. 6/DIR+ button 9. OPEN button 10. USB jack 11. 9/PTY/SCN button 12. #/BAND/LOUD button 13. 8/TA/DSP button 14.
  • Page 12 23. NEXT/PREVIOUS buttons Inner panel 24. VOL+/- buttons 25. ACCEPT CALL button 26. SD/MMC button 27. EJECT button 28. Light indicator 29. RESET button 30. Disc slot...
  • Page 13 Remote control 1. DISP/DUAL button 2. STANDBY button 3. OSD button 4. ST/MO button 5. SETUP button 6. ENTER button 7. PREVIOUS/NEXT button 8. ANGLE button 9. VOL- button 10. SEL button 11. BAND/RDM button 12. AUDIO/GOTO button 13. Number buttons 14.
  • Page 14 Changing the battery 1. Pull out the battery tray. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. 2. Insert the battery tray into the remote control. Warning: Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

  • Page 15: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button on the panel to open the panel and press RESET button to restore the unit to the original factory settings.
  • Page 16 Setting other characteristics During TUNER mode press SEL button and hold for 2 seconds, shortly and repeatedly press SEL button to select the setting: TA SEEK => PI MUTE => RETUNE L => MASK DPI =>TA VOL => EON TA => DISP REV =>...
  • Page 17 DISP REV: Press VOL +/- buttons to select LED display color between black and white. BEEP Turn BEEP on if you want the pressing of buttons to be sounded. Press SEL button until the display shows BEEP, then press VOL +/- buttons to turn BEEP sound ALL or OFF or BEEP 2ND (you hear BEEP sound when you press the button over 1.5 seconds).

  • Page 18: Digital Tuner Operations

    Digital tuner operations Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. RDS overview PI: Program Identification Code – for identifying code. PS: Program Service Name Broadcast –...
  • Page 19 Select a station by pressing PREVIOUS/NEXT buttons. Hold a Preset button (1-6), which you want store the station for at least 2 seconds. To recall a station: Select a band (if needed) Press a Preset button (1-6) briefly to recall the stored station. AF/MONO button Press 7/AF/MONO button to enable AF mode.
  • Page 20 AF (Alternative Frequencies) function Press 7/AF/MONO button on the panel shortly to turn on or turn off the AF function. If the AF function is on the display will show “AF”. When AF switching mode is selected, but RDS information is not received yet the “AF”...

  • Page 21: Disc Glossary

    Disc glossary PBC (PlayBack Control) PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.

  • Page 22: Dvd/Sd/Mmc/Usb Operations

    DVD/SD/MMC/USB operations Discs for playback This unit can play disc types: DVD/DVD±R/±RW/CD/CD-R/CD-RW. Compatible with formats: DVD/SVCD/VCD/DVD Audio/CDDA/MP3/CD/WMA/ HDCD/Picture-CD/ Photo-CD/JPEG. The following file types are supported: Audio files: MP3 (*.mp3) WMA (*.wma) Video files: MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID) MPEG 2(*.vob) MPEG 1(*.dat) Picture file: JPEG (*.jpg) ISO 9660 or ISO 9660 +Joliet format - Max.
  • Page 23 USB/SD/MMC notes USB functions (flash memory type) MP3 music play. 1. SD/MMC card support, 2in1 (SD/MMC) support. 2. USB flash memory. 3. FAT 12/ FAT 16/ FAT 32 is possible - FAT 12/16 (dir: 200 support, file: 500 support), - FAT 32 (dir: 200 support, file: 500 support). 4.
  • Page 24 Loading/Ejecting a disc Turn the power on. Open the panel. Insert the disc with the printed side facing upward into the slot. Press EJECT button on the inner side to eject the disc. Inserting the SD/MMC card/USB device Insert the MMC/SD card or USB device into MMC/SD compartment or USB socket. Then the playing mode will be changed into MMC/SD or USB mode automatically.
  • Page 25 Loudness Press and hold #/BAND/LOUD button on the panel or DSP button on the RC to turn loudness on or off. Repeat playback Press 2/RPT button on the panel or P.SCN/RPT button on the RC to start repeat playing. Press one more time to cancel.
  • Page 26 Changing size (for DVD/VCD) During playback press and hold A-B/ZOOM button on the RC. The picture will be enlarged accordingly: X2=> X3=> X4=> X1/2=> X1/3=> X1/4=>Normal. A-B segment repeating Press A-B/ZOOM button to set A position, press one more time to set B position and start A-B repeating. Press this button one more time to cancel the repeating function.
  • Page 27 4. Press STOP/PBC button to “STOP”, and press PLAY/ PAUSE button to continue playing. 5. Press STOP/PBC button to “STOP”, press again to “R.STOP”, and press PLAY/ PAUSE button to playback. Program playing During playback press PROG/PTY button on the RC to open the program menu. Press number buttons to select the track number and then press cursor buttons to move the cursor to PLAY.

  • Page 28: Mp3 Overview

    MP3 overview Notes on MP3: MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 29 Notes on creating your own CD-R or CD-RW containing MP3 files: To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate o f 128 kbps. DO NOT store more than 256 MP3 files per disc. For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).

  • Page 30: Dvd Setup

    DVD setup Press SETUP button to enter the OSD setting menu; press LEFT/RIGHT cursor buttons to move to the highlighted menu item and select one of the setup pages: Language, Display, Audio, Parental. Press UP/DOWN cursor buttons to select an item in the selected setup page. Press RIGHT button to move to the option list of the selected item.
  • Page 31 Display setup TV display Display Three screen ratio modes are available, Normal/PS (4:3 Pan Scan), TV display Normal/LB (4:3 Letterbox) and Wide (16:9). Different disc formats will TV type display different images depending this setting and the screen size used. Angle mark TV type Screen saver...
  • Page 32 Dynamic setup This function is to adjust the linear compression rate to obtain the different compression results of the signals. Standard set to OFF. Parental Parental Change Change With this option you can change your password. The default password is Parent 0000 Default...

  • Page 33: Bluetooth Operation (Option)

    Bluetooth operation (option) Feature: 1. Bluetooth specification V2.0 EDR compliant 2. Support HFP, A2DP, AVRCP. 3. Excellent ECHO cancellation with noise elimination 4. Dial 5. Display incoming and outgoing number 6. Call list 7. Phone book Pairing Before operation it needs to pair the mobile phone and receiver. Prepare your mobile phone for bluetooth connection.
  • Page 34 Call list/number redial Short press ACCEPT CALL button once, the LCD screen will blink with “_” first, press it again to display the last number, then press NEXT/PREV button to display all incoming and outgoing numbers one by one. Press SEL button on panel or LEFT cursor button on the RC to delete a wrong number (max.
  • Page 35 Phone book (Max store 250 numbers) Press ACCEPT CALL button “ ” once, the LCD screen will blink with “_” first, press digit 1 to show the English letter A, press PREV/NEXT button to display all the letters A-Z (represent the first letter of the call card name) and “*”...

  • Page 36: Handling Discs

    Handling discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 37: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution The car ignition is not on. If the power supply is properly connected No power to the car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc cannot be loaded. Presence of disc inside the player.
  • Page 38 Sound skips. The installation angle is more than Adjust the installation angle to less than 30 degrees. 30 degrees. The disc is extremely dirty or Clean the compact disc/try to play a new defective. one. The radio does not work, The antenna cable is not connected Insert the antenna cable firmly select a the radio station...

  • Page 39: Specification

    Specification General Power supply: 12 V DC Storage support: DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB/SD/MMC Compatible with: DVD/VCD/MPEG4/CDDA/MP3/WMA/HDCD/Picture- CD/Photo CD/JPEG playback Current consumption: max. 15 A Maximum power output: 50 W x 4 channels Dimensions (L x W x H): 178 x 175 x 50 mm Working temperature range: -10º...
