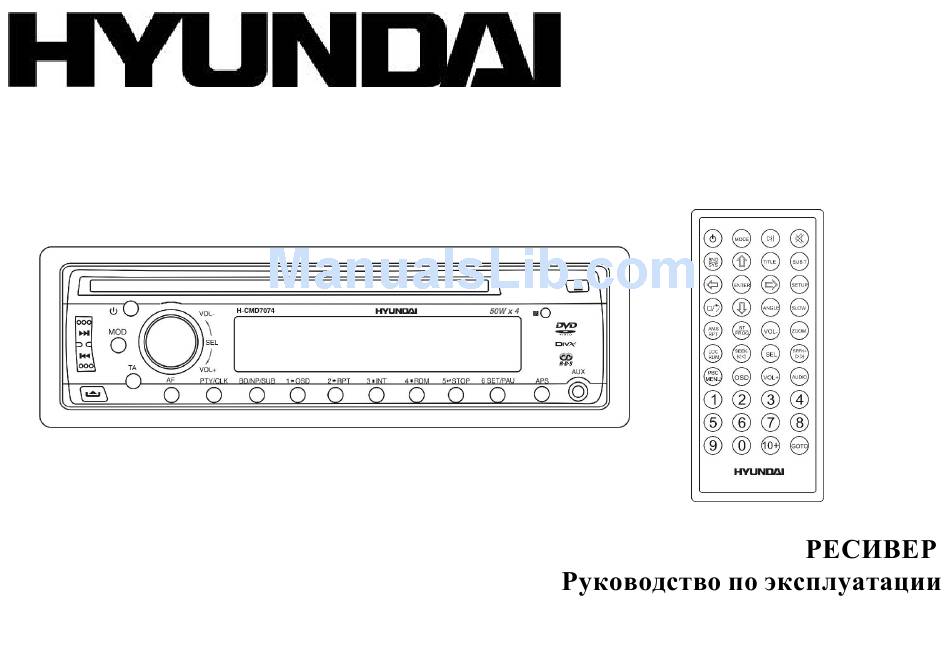

  • Page 1 H-CMD7074 DVD/MP3/CD RECEIVER DVD/MP3/CD- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents....................................2 Important safeguards..................................

  • Page 3: Important Safeguards

    Important safeguards Using the device at temperature below -10º may cause the breakage of the device. Before using please heat up the passenger compartment to the recommended temperature! Read carefully through this manual to familiarize you with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

  • Page 4: Accessories

    Accessories Receiver 1 pc Remote controller 1 pc Carrying case 1 pc ISO connector 1 pc Mounting parts: Hexagon nut M5 T (3.5 mm) 1 pc Mounting box (0.6 mm) 1 pc Left key (1.0 mm) 1 pc Right key (1.0 mm) 1 pc Metal bar (0.8 mm) 1 pc...

  • Page 5: Installation/Connections

    Installation/Connections First complete the electrical connections, and then check them for correctness. Installation way (method 1) It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram.
  • Page 6 Installation way (method 2) Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each side. Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the shape of the screw holes in the bracket.
  • Page 7 Connection diagram:...
  • Page 8 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. 3.

  • Page 9: Controls Description

    Controls description Front panel 1. Disc slot 4/RDM button 2. PREV/NEXT buttons 5/STOP button 3. REL button 6/SET/PAU button 4. TA button APS button 5. AF button AUX in 6. PTY/CLK button EJECT button 7. BND/NP/SUB button IR sensor 8. 1/OSD button Display 9.
  • Page 10 Back of the front panel Disc slot Press REL button to open the panel. Note: Pressing the RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down; flashes when you remove the panel. Panel status indicator Reset hole...
  • Page 11 Remote control POWER button MODE button PLAY/PAUSE button MUTE button BND/SYS button ENTER button UP/DOWN/LEFT/RIGHT cursor buttons STOP/REVERSE button ST/PROG button 10. AMS/RPT button 11. SEL button 12. LOC/RDM button 13. PBC/MENU button 14. OSD button 15. Digit buttons 16. TITLE button 17.

  • Page 12: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press REL button and remove the panel, then press RESET button to restore the unit to the original factory settings. Power button Press any button to turn the unit on.
  • Page 13 BASS/TREBLE: -7, -5,.., 0, +1, +2,..+5, +7 BALANCE: 7L,.., 7R FADER: 7R,.., 7F LOUD: ON/OFF LOC: LOC ON, LOC OFF (DX). ST: ON, OFF BEEP: ON/OFF EQ: CLASS, POP, ROCK, FLAT, OFF COLOR: COLOR1, COLOR2 (to select the needed backlight color). Note: In each mode, the waiting time is about 5 seconds, and the waiting time is over, it returns to the last display mode of radio or disc playback mode.

  • Page 14: Radio Operations

    Radio operations Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Band select Press BND/NP/SYS button on the front panel or BND/SYS button on RC repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3, AM1, AM2.

  • Page 15: Af Button

    Auto memory store: press APS button on the panel for more than 2 seconds to enter auto store mode. The radio will automatically store the 6 strongest available stations to the 6 preset memories of the current band. To stop auto store, press this button again.
  • Page 16 Press PTY/CLK once again to enter the MUSIC type or press twice to enter the SPEECH type, then use buttons 1 - 6 to select the desired program type (see the following table). Button Number Music Group Speech Group Pop, Rock News, Affairs, Info Easy, Light Sport, Educate, Drama...
  • Page 17 RETUNE S/L - SHORT/LONG Press and hold SEL button, then press it repeatedly until the display shows RETUNE S. Rotate VOL knob to toggle between RETUNE S and RETUNE L modes, then leave the unit idle to activate. RETUNE refers to the time period the unit allows for radio scan when reception is interrupted.

  • Page 18: Discs Operations

    Discs operations Disc glossary PBC (PlayBack Control) PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image. Title The title is the important part of DVD disc.
  • Page 19 Max. nested directory is 8 levels The max. album number is 99 The max. length of each track is 99 minutes 59 seconds Supported sampling frequency for MP3 disc: 8 KHz – 48 KHz (44.1 KHz preferably) Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably). Following formats are NOT supported *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, files with DRM.

  • Page 20: Osd Button

    Changing size Press ZOOM button on RC. The picture will be enlarged accordingly: X2, X3, X4, 1/2, 1/3, 1/4, OFF. Slow playback (for DVD/VCD) During DVD/VCD playback press SLOW button on the RC to execute the SLOW function. With each consecutive pressing of the SLOW button, the playback speed decreases: X1/2 =>...
  • Page 21 Changing angle (for DVD only) If DVD disc supports multi-angle playback, press ANGLE button on RC to play images in different camera angles. If discs doesn't support multi-angle playback, this function will not work. If no operation within 1 second, angle description will disappear. Title playing (for DVD only) Press TITLE button on the RC to activate the disc title list on the screen.

  • Page 22: Mp3 Overview

    MP3 overview Notes on MP3 and WMA MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 23 Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc. You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.

  • Page 24: System Setup

    System setup Press SETUP button on the RC to display setup screen, use LEFT/RIGHT cursor buttons and ENTER button to select the desired setup page: System, Language, Audio, Video, Speaker, Digital. System setup SYSTEM SETUP TV system Select the TV system in the setting menu (NTSC, PAL, PAL-M, PAL-N, AUTO). TV SYSTEM Screen saver SCREEN SAVER...
  • Page 25 Language setup OSD language LANGUAGE SETUP Select the language to be used for the on-screen display. Audio language OSD LANGUAGE Select the language to be used for the audio. You can select a preferred audio from those AUDIO LANG included on the DVD video disk. (The screen on your player may have difference with the SUBTITLE LANG screen shown here) MENU LANG...
  • Page 26 Video setup Set a parameter with UP/DOWN cursor buttons: Brightness, Contrast, Hue, Saturation, VIDEO SETUP Sharpness. BRIGHTNESS CONTRAST SATURATION SHARPNESS Speaker setup SPEAKER SETUP Downmix LT/RT: The audio out is Left and Right channels format even if the original sound is 5.1 CH DOWNMIX format.

  • Page 27: Anti-Theft System

    Anti-theft system This unit is equipped with a slide-down detachable and mask panel. Panel can be detached and taken with you, helping to deter theft. Detaching the front panel Press the PWR button to turn the power off. Press REL button on the front panel. Push the panel to the right and then pull it towards you.

  • Page 28: Cleaning

    Cleaning Discs holding Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 29: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc cannot be loaded. Presence of disc inside the player.

  • Page 30: Specification

    Specification General Power Supply 12V DC Current consumption/Fuse: 10A & 1A Maximum power output: 50Wx4 channels Dimensions (W x H x D) 178 x 51 x 178 mm Working temperature range: -20º - +60º FM Stereo Radio Frequency range: 87.5 - 108.0 MHz Usable sensitivity/ I.F.
  • Page 31 Line out Output: CD max 2000 mV Specifications are subject to change without notice. Dimensions are approximate.
