Hyundai H-CMD7073 Instruction Manual

Dvd/mp3/cd receiver
Hide thumbs Also See for H-CMD7073:
Table of Contents

Advertisement

Quick Links

Download this manual
H-CMD7073
www.DataSheet4U.com
DVD/MP3/CD RECEIVER
DVD/MP3/CD-
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H-CMD7073

Summary of Contents for Hyundai H-CMD7073

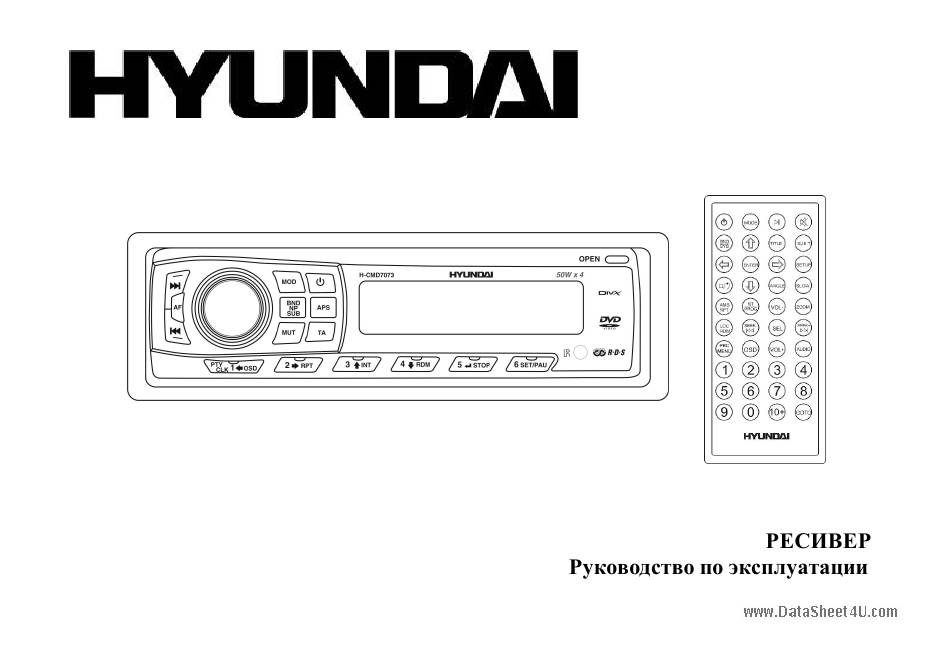

  • Page 1 H-CMD7073 www.DataSheet4U.com DVD/MP3/CD RECEIVER DVD/MP3/CD- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents.................................. 2 Important safeguards................................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through the manual to familiarize yours with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Installation/Connections

    Installation/Connections First complete the electrical connections, and then check them for correctness. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call your dealer in order to have the unit professionally installed. Before installing the unit, please remove two screws on the top.
  • Page 5 Installation method A After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure the holder in place. Insert fingers into the groove in the front of frame and remove it. Insert the levers supplied with the unit to the grooves at both sides. The unit can be installed or removed from the dashboard.
  • Page 6 Detachable control panel Detaching the control panel Press the OPEN button on the front panel. The panel will go down (pic. 1). Push the panel to the left and then pull it towards you (pic. 2). Attaching the control panel Insert the left side of the control panel into the main unit (pic.
  • Page 7 Connection diagram: www.DataSheet4U.com...
  • Page 8 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.

  • Page 9: Accessories

    Accessories Receiver 1 pc Remote controller 1 pc Carrying case 1 pc ISO connector 1 pc Mounting parts: Hexagon nut M5 T (3.5 mm) 1 pc Mounting box (0.6 mm) 1 pc Left key (1.0 mm) 1 pc Right key (1.0 mm) 1 pc Metal bar (0.8 mm) 1 pc...

  • Page 10: Controls Description

    Controls description Front panel PTY/CLK button 1/LEFT/OSD button 3. MUTE button 2/RIGHT/RPT button TA button 3/UP/INT button 4/DOWN/RDM button 5/STOP button 6/SET/PAU button 10. IR sensor 11. OPEN button 12. Display 13. APS button www.DataSheet4U.com 14. POWER button 15. BND/NP/SUB button 16.
  • Page 11 Back of the front panel Press the OPEN button to open the panel. LED indicator RESET button (hole) Disc slot EJECT button Note: Pressing the RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down, flashes when you remove the panel. www.DataSheet4U.com...
  • Page 12 Remote control POWER button MODE button PLAY/PAUSE button MUTE button BND/SYS button ENTER button UP/DOWN/LEFT/RIGHT cursor buttons STOP/REVERSE button ST/PROG button 10. AMS/RPT button 11. SEL button 12. LOC/RDM button 13. PBC/MENU button 14. OSD button 15. Digit buttons 16. TITLE button 17.

  • Page 13: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button and remove the panel, then press the RESET button to restore the unit to the original factory settings. Power button Press any button to turn the unit on.
  • Page 14 VOLUME: 00, 02,.., 38, 39 BASS/TREBLE: -7, -6,.., 0, +1, +2,..+6, +7 BALANCE: 7L, 6L,.., L=R, 1R,..,7R FADER: 7R, 6R,.., R=F, 1F,.., 7F LOUD: ON/OFF LOC: LOC ON, LOC OFF (DX). ST: STEREO, MONO EQ: CLASS, POP, ROCK, FLAT, OFF COLOR: COLOR1, COLOR2 (to select the needed backlight color).

  • Page 15: Radio Operations

    Radio operations Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Band select Press BAND/NP/SUB button on the front panel or BND/SYS button on RC repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3, AM1, AM2.
  • Page 16 Auto memory store: press APS button on the panel for more than 2 seconds to enter auto store mode. The radio will automatically store the 6 strongest available stations to the 6 preset memories of the current band. To stop auto store, press this button again.
  • Page 17 Press PTY/CLK once again to enter the MUSIC type or press twice to enter the SPEECH type, then use buttons 1 - 6 to select the desired program type (see the following table). Button Number Music group Speech group Pop, Rock News, Affairs, Info Easy, Light Sport, Educate, Drama...
  • Page 18 During searching the radio does not retune but the double beep sound (alarm) is output. RETUNE mode To determine the initial time of automatic TA (Traffic Announcement) search. There are 2 modes: RETUNE L and RETUNE L. RETUNE L: 90 seconds. RETUNE S: 30 seconds.

  • Page 19: Discs Operations

    Discs operations Disc glossary PBC (PlayBack Control) PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image. Title The title is the important part of DVD disc.
  • Page 20 Max. nested directory is 8 levels The max. album number is 99 The max. length of each track is 99 minutes 59 seconds Supported sampling frequency for MP3 disc: 8 KHz – 48 KHz (44.1 KHz preferably) Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably). Following formats are NOT supported *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, files with DRM.
  • Page 21 During slow forward, press the PLAY/PAUSE button to resume normal playback. Repeat playback Press and hold for 2 seconds the RPT button on the front panel or press shortly AMS/RPT button on the RC to repeat the current track playback. Press again time to cancel. Random playback Press and hold for 2 seconds the RDM button on the front panel or press shortly LOC/RDM button on the RC to start the random playing.
  • Page 22 Selecting the subtitle (for DVD only) Press the SUB-T button on RC repeatedly to select the subtitle. Press ENTER to confirm. Title playing (for DVD only) Press TITLE button on the RC to activate the disc title list on the screen. Press the cursor buttons on the RC to select the desired title or press the number buttons to insert the desired number directly.

  • Page 23: Notes On Mp3 And Wma

    Notes on MP3 and WMA MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 24 Notes on creating your own CD-Rs or CD-RWs containing MP3 files To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate o f 128 kbps. DO NOT store more than 256 MP3 files per disc. For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).

  • Page 25: System Setup

    System setup Press SETUP button on the RC to display setup screen, use LEFT/RIGHT cursor buttons and ENTER button to select the desired setup page: System, Language, Audio, Video, Speaker, Digital. System setup SYSTEM SETUP TV system Select the TV system in the setting menu (NTSC, PAL, PAL-M, PAL-N, AUTO). TV SYSTEM Screen saver SCREEN SAVER...
  • Page 26 Language setup OSD language LANGUAGE SETUP Select the language to be used for the on-screen display. Audio language OSD LANGUAGE Select the language to be used for the audio. You can select a preferred audio from AUDIO LANG those included on the DVD video disk. (The screen on your player may have SUBTITLE LANG difference with the screen shown here) MENU LANG...
  • Page 27 Video setup Set a parameter with UP/DOWN cursor buttons: Brightness, Contrast, Hue, VIDEO SETUP Saturation, Sharpness. BRIGHTNESS CONTRAST SATURATION SHARPNESS Speaker setup SPEAKER SETUP Downmix LT/RT: The audio out is Left and Right channels format even if the original sound is DOWNMIX 5.1 CH format.

  • Page 28: Anti-Theft System

    Anti-theft system Remove the panel Press POWER button to switch off the power of the unit. Press OPEN button to flip down the panel. Push the panel to the left and then pull it towards you. Put it to the special box and take it with you. Remove the unit Remove the panel and the trim plate.

  • Page 29: Cleaning

    Cleaning Discs holding Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 30: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc cannot be loaded. Presence of disc inside the player.

  • Page 31: Specification

    Specification General Power supply: 12V DC Current consumption/Fuse: 10A & 1A Maximum power output: 50Wx4 channels Dimensions (W x H x D) 178 x 51 x 178 mm Working temperature range: -20º - +60º FM Stereo Radio Frequency range: 87.5 - 108.0 MHz Usable sensitivity 3 uV I.F.
  • Page 32 S/N Ratio (A-vtd)/Separation 60dB/50dB Line out Output: CD max 1000 mV Specifications are subject to change without notice. Dimensions are approximate. www.DataSheet4U.com...
