MB Series
Precision Balance
Operation Manual
42192

Advertisement

Table of Contents
loading

Related Manuals for Rice Lake MB Series

Summary of Contents for Rice Lake MB Series

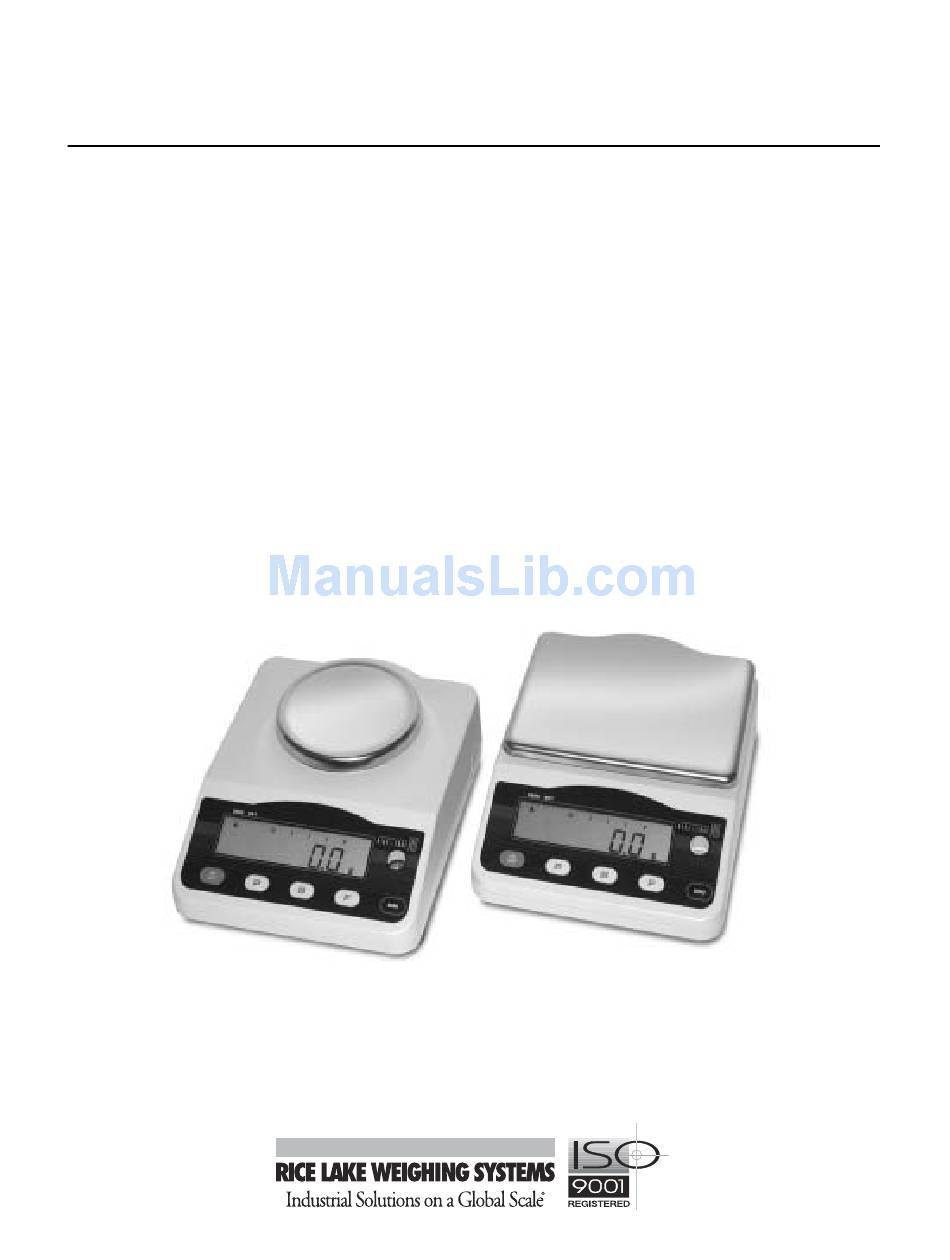

  • Page 1 MB Series Precision Balance Operation Manual 42192...

  • Page 3: Table Of Contents

    Course descriptions and dates can be viewed at www.rlws.com or obtained by calling 715-234-9171 and asking for the training department. Copyright © 2002 Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice.
  • Page 4 MB Series Operation Manual...

  • Page 5: About This Manual

    RLWS AC adapter (PN 42566) designed for this unit. Use of any other AC adapter can void the warranty. Unpacking and Inspection Each MB Series balance comes with the following components (see Figure 1-1 on page 2): • Balance •...

  • Page 6: General Care And Maintenance

    General Care and Maintenance To keep your MB Series balance operating properly, the device needs to be maintained and cared for. Keep the housing and platform clean by wiping them off with a soft damp cloth daily. If necessary, use a slight solution of water and dishwashing soap to clean away stains and dirt.
  • Page 7 3. Using the bubble level at the front right of the display panel as a guide, adjust the leveling legs as necessary until the bubble is centered inside the bulls-eye of the bubble level. (See Figure 1-2). BALANCE IS LEVEL BALANCE IS NOT LEVEL BLUE CIRCLE...

  • Page 8: Special Information

    In the event that the device fails to operate properly, contact your Rice Lake Weighing Systems dealer for assistance. Front Panel Figure 1-7 shows the MB Series keypad and key functions and Figure 1-8 on page 5 shows the LED display segments. Function key - in weighing mode, used to select display unit of measure.

  • Page 9: Turning The Balance On

    AC adapter (active only when the device is turned off) Figure 1-8. MB Series Display Segments Turning the Balance On Press and release the key to power up the MB Series balance. ON/OFF 1. All display segments momentarily illuminate. ZERO NET 2.

  • Page 10: Turning The Balance Off

    To turn the balance off, press and release the ON/OFF key. The display turns off and the power status asterisk appears if the unit is connected to the AC adapter (see Figure 1-5 on page 4). MB Series Operation Manual...

  • Page 11: Simple Weighing

    Simple Weighing Units of Measure To scroll through the available units of measure, simply press and release the key. Table 2-1 shows unit capacities. Unit of Measurement MB-150S MB-150E MB-300E MB-600P MB-1500E MB-3000E MB-6000P Gram (g) 150 x 0.001 150 x 0.01 300 x 0.01 600 x 0.01 1500 x 0.1...

  • Page 12: Batching

    1. Remove the container (empty or full) from the weighing platform. 2. The display shows the weight of the container and the commodity, if any, as a negative value. 3. Press and release the key. ZERO 4. The display returns to a value. MB Series Operation Manual...

  • Page 13: Span Calibration

    Span Calibration To achieve the optimum accuracy from your MB Series balance, it should be calibrated on a regular basis in the environment that it is normally used. If the device is moved to another physical environment, recalibrate the device before using it.

  • Page 14: Function Parameters

    “g”, “ct” and “oz” selectable from front keypad (except MB-3000 and MB-6000P). “g”, “ct” and “lb” selectable from front keypad (MB-3000 and MB-6000P only). A.Pr.F. Not used Not used Table 4-1. Function List NOTE: Bold type indicates factory setting. MB Series Operation Manual...

  • Page 15: Viewing Parameters

    Viewing Parameters 1. Turn the balance on (see Section 1.7 on page 5). 2. If the device does not show a value after the normal start sequence, press and release the ZERO key. 3. Press and hold the key until the display reads FUNC 4.

  • Page 16: Specifications

    Specifications This section contains tables listing common specifications and model specific data for the MB Series scale. Model Specific Data Model MB-150S MB-150E MB-300E MB-600P MB-1500S MB-1500E MB-3000E MB-6000P RLWS Part Number 66742 66741 66743 66744 67025 66745 66746 66747 Gram (g) 150 x 0.001 150 x 0.01 300 x 0.01...

  • Page 17: Rs-232C Specifications

    RS-232C Specifications The MB Series may be equipped with an optional RS-232C feature (PN 42175), which is compatible for communication with printers and computers. When the balance is connected directly to a printer, displayed data can be output either via the key on the balance, or automatically when certain conditions have been met.

  • Page 18: Output Control Settings

    The following sections describe the hardware and output signal formats provided with the balance. 5.3.1 Hardware On the rear of the MB Series balance equipped with the optional RS-232C interface is a 5-pin DIN connector for interfacing to other devices (see Figure 5-2). MB Series Operation Manual...

  • Page 19: Accessories

    42169 Internal rechargeable battery for MB Series (incompatible with PN 42175 below) 42175 RS-232C interface for MB Series (incompatible with PN 42169 above) includes DIN-5 pin connector (Cable not included) 42179 Glass breeze break for MB Series (scales with round weighing pans only)

  • Page 20: Troubleshooting

    Troubleshooting The following section contains a troubleshooting chart for the MB Series scale. Refer to this chart to locate causes and corrective actions to various conditions. Condition Cause Corrective Action Display does not • Wind or vibration is affecting scale.

  • Page 21: Dimensions

    Dimensions 180 mm 62 mm 7 ~ 19 mm 13 mm (0.51 in) (2.44 in) (0.28 ~ 0.75 in) (7.09 in) 87 mm (3.43 in) 148 mm (5.83 in) Figure 7-1. MB-150S 180 mm 62 mm 7~19 mm 13 mm (7.09 in) (0.28 ~ 0.75 in) (0.51 in)
  • Page 22 180 mm 62 mm 7~19 mm 13 mm (7.09 in) (2.44 in) (0.28~0.75 in) (0.51 in) 87 mm (3.43 in) 148 mm (5.83 in) Figure 7-3. MB-1500E, MB-3000E and 6000P MB Series Operation Manual...

  • Page 23: Mb Series Limited Warranty

    MB Series Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems manufactured and sold by RLWS and properly installed by an authorized RLWS Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for five years.
