Summary of Contents for Rice Lake MS200
- Page 1 MS200 and MS202 Monorail Scale Installation Manual May 11, 2021 PN 16984 Rev B...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
5.0 Specifications ................8 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 MS200 and MS202 Monorail Scale Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars www.RiceLake.com Visit our website...
-
Page 5: Introduction

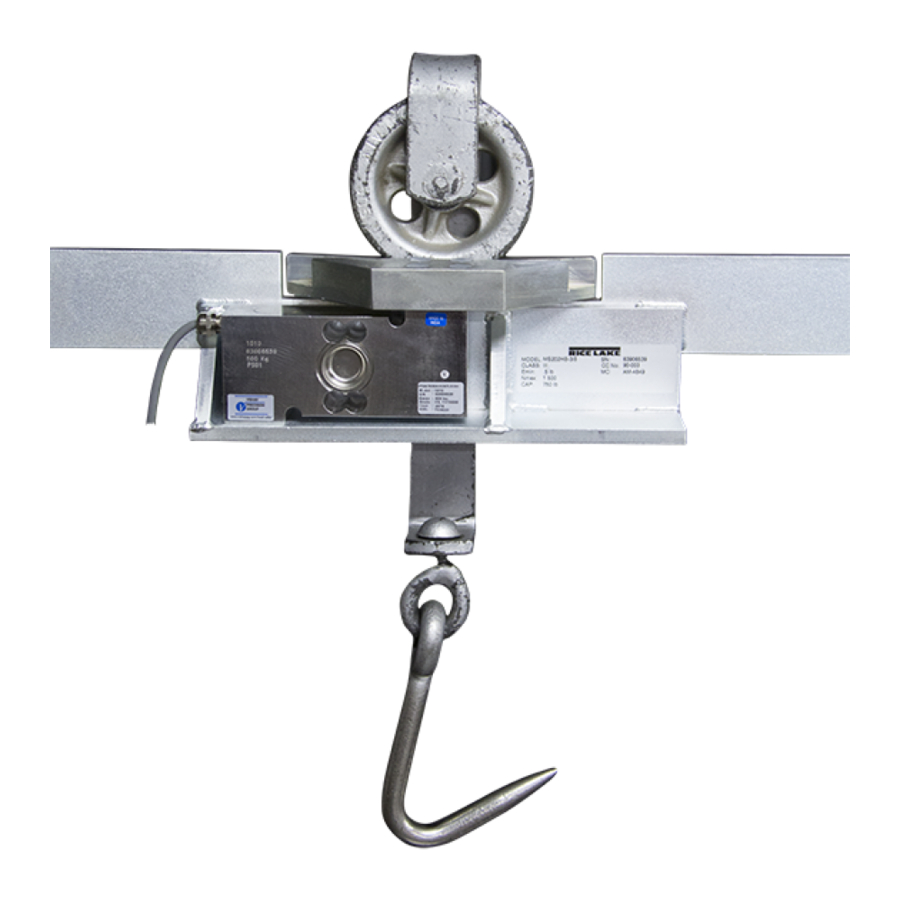

Introduction The MS200 Monorail Scale is for portable use and is designed to bolt onto a straight section of either 3/8'' x 2 1/2'' or 1/2'' x 2 1/2'' rail. The overall length of straight rail required for the scale and ramps is 41''. The scale body requires a 22'' space between existing support hangers. -
Page 6: Installation
MS200 and MS202 Monorail Scale Installation This section provides an overview of MS200 and MS202 Monorail Scale installation information. Pre-Installation Checks Before installing the portable monorail scale, check the trolleys used in the plant to ensure there is adequate clearance between... - Page 7 11. Rail hangers and their beam supports usually provide a good place for attaching cable ties and cable clamps. When attaching cable clamps, be careful not to pierce the load cell cable. CAUTION 12. Attach load cell cable to indicator. © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 8: Permanent Installation
12. Plug the power cord into a grounded outlet. 13. Power on the device. The display is ready for weighing. If a place in service report is required for new equipment, contact a Rice Lake Weighing Systems certified scale Note service company for assistance. -
Page 9: Maintenance
Maintenance Maintenance This section provides an overview of MS200 and MS202 Monorail Scale maintenance information. Use live rail shims as necessary to reach proper live rail height. Note Portable Monorail Replacement Parts 40.32" 1024.13 mm 1.00" 25.4 mm 1.52" 38.61 mm Figure 3-1. -
Page 10: Permanent Monorail Scale Replacement Parts
MS200 and MS202 Monorail Scale Permanent Monorail Scale Replacement Parts ± .03" 52.00" 1320.8 mm ± 762 mm .75" 19.05 mm .19" 4.83 mm Figure 3-2. MS202HB (PN 19744 and 19745) and MS202HB-SS (PN 196885 and 196887) Permanent Monorail Scale Parts Item No. -
Page 11: Limited Warranty
Authorized Reseller/OEM and accepted by Rice Lake. All systems and components are warranted against defects in materials and workmanship for one (1) year from the date of shipment from Rice Lake, unless otherwise stated in the product catalog or manual. Rice Lake warrants that the equipment sold here under will conform to the current written specifications authorized by Rice Lake. -
Page 12: Specifications
MS200 and MS202 Monorail Scale Specifications MS200 Portable Monorail Scale MS202 Permanent Monorail Scale Construction Construction Zinc-plated steel construction, stainless steel hardware Zinc-plated steel construction (PN 19744, PN 19745) Stainless steel construction (PN 196885, PN 196888) Load Cell Construction Load Cell Construction... - Page 14 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
