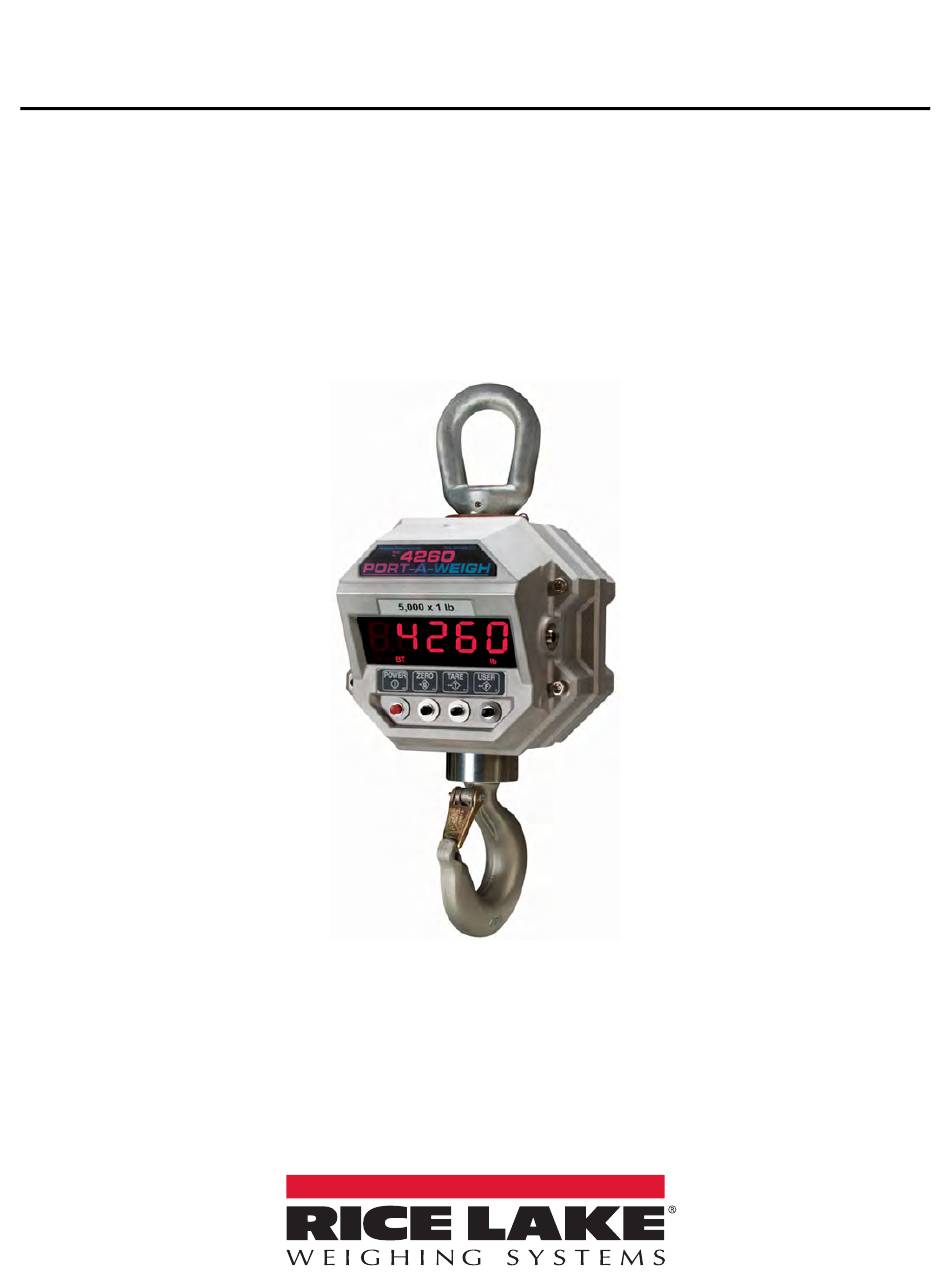

- Page 1 MSI-4260B Port-A-Weigh Crane Scales Technical Manual July 26, 2021 PN 152159 Rev D...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
Standard Calibration ................. 21 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 9.0 Specifications ............... . . 38 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost.
-
Page 5: Introduction
RF remote control and RF remote displays are available to further enhance the performance and application versatility of the MSI-4260. Manuals and additional resources are available from the Rice Lake Weighing Systems website at www.ricelake.com Warranty information can be found on the website at www.ricelake.com/warranties... -
Page 6: Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 7: Display
Tare Key — Removes the weight of containers, trucks or carriers and places the scale in the Net weight mode TARE User Key — Programmable to user selectable functions (Section 3.0 on page 10); This key is defaulted to the Test function USER Table 1-1. Key Functions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 8: Annunciators And Leds
MSI-4260B Port-A-Weigh 1.4.2 Annunciators and LEDs Figure 1-2. Front Panel Annunciator Description Center of Zero — Indicates that the scale is zeroed and the weight is within 1/4d of zero Stable — Indicates that the weight has settled within the motion window (usually ±1d);... -
Page 9: Installation
Use the appropriate interface hardware for the capacity of the scale. • If the interface hardware does not fit properly, Rice Lake Weighing Systems can supply the MSI-4260 with oversize lifting eyes or shackle interfaces. -
Page 10: Battery Charger
If the power status light fails to illuminate, check the AC power connection to ensure the V in the jack is fully seated. Note AC power cords suitable for any world location are available from Rice Lake Weighing Systems. 3. Plug the polarized connector into the jacks on the battery. Charging annunciators illuminate to represent charge percentage. -
Page 11: Battery Replacement
The 12V Sealed Lead Acid battery can be a dangerous falling hazard. When opening the battery hatch, be sure to CAUTION hold the battery to prevent it from falling. These batteries contain lead and should be recycled when it has reached its end of life. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Communications Port
The MSI-4260 has a single communications port allowing access to the embedded ScaleCore through the terminal access mode or Rice Lake software. The terminal access mode is used for updating scale firmware while Rice Lake software can be used for calibration and configuration, backup and adjusting scale settings. This communications port is not intended for output use. -
Page 13: Servicing
Rice Lake’s dealer network provides both on-site and depot servicing of MSI-4260 crane scales. Please contact a local dealer or Rice Lake Weighing Systems to obtain a return material authorization (RMA). Due to the weight and size of many of the product, it is not always necessary to return the whole scale. -
Page 14: Operation
MSI-4260B Port-A-Weigh Operation The following sections describe the basic operation of the MSI-4260. Navigation of Menus • If a function key does not work, it is probably because the MSI-4260 is not set up to support the key. For example, if the Function Key is set for TOTAL, the TOTAL mode must also be set up in the Setup menu. -
Page 15: Tare
Example: Taring a 100 lb container on a 1000 lb scale, the scale will overload at a net weight of 900 lb (1000-100) plus any additional allowed overload (usually ~4% or 9d). The scale stores the tare value in non-volatile memory and is restored when power is cycled. Note © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Setup
MSI-4260B Port-A-Weigh Setup The following keys can be used when navigating through the menus while setting up the MSI-4260. POWER • Press to exit setup without saving changes. displays momentarily and unit enters Weigh mode. POWER • To enter a decimal point, press while the digit is blinking. -
Page 17: Set Function Key
To stop the automatic test procedure, press the F-key again within two seconds to enable a single step mode. Use the F-key to TARE scroll through the available test functions and to start or display the individual tests. ZERO Press to exit individual tests, press it again to exit from the test function. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Total
MSI-4260B Port-A-Weigh 4.1.3 Total Set the total parameter desired for the F-key USER POWER 1. If the unit is turned off, press and hold then press USER POWER If the unit is on, press simultaneously. will display. USER 2. Using the , scroll to ... -
Page 19: High Resolution Test Mode
TARE 5. Press when the desired time displays. displays. ZERO to exit Setup and store the settings. 6. Press POWER Press at any time to cancel the procedure. Note © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 20: Sleep
MSI-4260B Port-A-Weigh Sleep The sleep parameter reduces power consumption by automatically turning off the display during periods of inactivity. While in the sleep mode, the green acknowledge annunciator will blink at a one second rate to indicate the unit is in sleep mode. To wake up the unit, either a button must be pushed (front panel or RF remote) or the weight must change by 5 d or more. -
Page 21: Setpoints
Setpoint 1 is Blue Setpoint 2 is Green Setpoint 3 is Red Figure 4-1. Setpoint LED’s The MSI-4260 has an audible output option that is triggered by Setpoint 1. Contact Rice Lake Weighing Systems for other setpoint output options. Setpoint Description... -
Page 22: Total
MSI-4260B Port-A-Weigh Total For the accumulation of multiple weighments, the Total function used the displayed load, so gross and net readings can be added into the same total. There are four modes of totalizing: manual and three auto modes. The manual mode requires the TOTAL key be pressed with the weight on the scale. -
Page 23: Filter Setup
TARE 5. With choice displayed, press to select. will display. ZERO USER 6. Press to save and exit to weighing mode or press to continue to another setup menu item. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 24: Calibration
MSI-4260B Port-A-Weigh Calibration The MSI-4260 is calibrated using standard weights. It is required that the weight used is at least 10% of full capacity in order to achieve rated accuracy. For example, use at least a 500 kg test weight to calibrate a 5000 kg capacity scale. Although a single span point is usually adequate for rated accuracy, the MSI-4260 supports Multi-Point calibration with up to four span points plus zero. -
Page 25: Standard Calibration
is displayed. ZERO 16. Press to exit the calibration menus and start up the standard weight display. 17. Replace the hex seal screw that was removed in “Calibration Switch Access” on page © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 26: Initial Calibration
Crane scales are subject to forces that regular floor scales do not see. Many bridge cranes, hoist cranes and mobile cranes lack rigidity and tend to bounce or swing when loads are lifted. For this reason, Rice Lake Weighing Systems recommends that the resolution is kept in the 1:2000 to 1:3000 range. -
Page 27: C-Cal Calibration
C-Cal value. The display will read followed by ’. ZERO ZERO 10. Press to exit C-Cal setup menu and press again to store the calibration and return to the scale operation and the display will show . © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 28: Calibration Setup Menu
MSI-4260B Port-A-Weigh Calibration Setup Menu The Calibration Setup Menu contains two additional items beyond Calibration: • Standard menu • Auto Zero Maintenance menu (Auto0). In addition, more menus will appear that are transferred from the main setup menu when Legal-for-Trade settings are used. -
Page 29: Auto Zero Maintenance
TARE 7. Press to set the auto zero. is displayed. ZERO 8. Press twice to exit setup and store all changes. is displayed. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 30: Communications
The MSI-4260 has a single communications port allowing access to the embedded ScaleCore through the terminal access mode or Rice Lake software. The terminal access mode is used for updating scale firmware while Rice Lake software can be used for calibration and configuration, backup and adjusting scale settings. This communications port is not intended for output use. -
Page 31: Standard Print Strings
Setting the interval to 0 will set an interval as fast as the system can go Printing is disabled. Power consumption is lower with the print off Table 6-4. Control Modes © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 32: Printer Output Setup
MSI-4260B Port-A-Weigh 6.1.3 Printer Output Setup Use the following steps to set up the printer output. TARE USER 1. Press at the same time. is displayed. TARE 2. Press . displays. TARE 3. Press . The current setting flashes. -
Page 33: Rf Network Setup
TARE 9. When ID is set, press again. displays. TARE 10. Press . The current channel flashes. If the channel number is correct continue to 12. © Rice Lake Weighing Systems ● All Rights Reserved... - Page 34 MSI-4260B Port-A-Weigh TARE USER 11. Enter the channel using to scroll through numbers and to set number. TARE 12. When channel is set, press again. displays. TARE 13. Press . The current net ID flashes. If the net ID is correct, continue to 15.
-
Page 35: Hold Feature
All radio options meet FCC and international radio compliance per the certification information listed in this section. These modules may have additional international certifications that are not listed in this section. Please contact Rice Lake Weighing Systems if you require operation in a jurisdiction that is not listed. 6.3.1 802.15.4 (XBee 3 and XBee 3-PRO) -
Page 36: 802.15.4 (Xbee 2Sc)
MSI-4260B Port-A-Weigh 6.3.2 802.15.4 (XBee 2SC) FCC Statement Contains FCC ID: MCQ-S2CTH International Certifications Canada: Radio Certificate Number: IC 1846A-S2CTH Australia: RCM Brazil: ANATEL 0616-15-1209 EU: Yes, when used with CE approved products Japan: R210-105563 Mexico: IFETEL (IFT) RCPDIS219-1821-A1 South Korea: MSIP-CRM-DIG-XBee-S2C-TH 6.3.3... -
Page 37: Optional Rugged Remote
Remote is a transmit only device that can be used to perform basic scale functions. The range may vary up to 100' or more depending on room conditions and line of sight. The RF modem in the MSI-4260 must be configured to accept communication from the Rugged Remote, contact Rice Lake Weighing Systems for pairing requirements. -
Page 38: Power
MSI-4260B Port-A-Weigh 7.1.1 Power The Rugged Remote can be enabled to turn on and off the ScaleCore device it is paired remotely. The hold function must be enabled in the MSI-4260 (Section 6.2.2 on page 31). The Hold feature causes the device's modem to stay on and continuously draw from the battery, even when the Note device is turned off, resulting in decreased battery life. -
Page 39: Troubleshooting/Maintenance
Wait for the stable annunciator to turn on, or Increase filtering for more stability Weight thresholds not reached Must exceed 1% of capacity for autototal to work; Must drop below 0.5% of capacity for additional weighments to register Table 8-1. Troubleshooting © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 40: Service Counters
MSI-4260B Port-A-Weigh Service Counters Only a Rice Lake Weighing Systems factory representative can reset the service counters, as these are an WARNING important safety warning feature. A thorough load train inspection is necessary to ensure product safety. Service Counters are important safety warning features and can only be reset at the factory by certified Rice Lake personnel. -
Page 41: Msi-4260 Port-A-Weigh Dimensions
CR 55 ton alloy 630 lb 75 ton alloy ** Resolution subject to change for NIST and OIML approved units. swivel shackle # 2140 286 kg Figure 8-1. MSI-4260 Product Dimensions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 42: Specifications
MSI-4260B Port-A-Weigh Specifications Accuracy Operating Time ± (0.1% +1 d) of applied load Up to 200 hours between charging with typical use, less with RF Modem option Resolution Operating Temperature 3,000 to 5,000 d standard (up to 10,000 d available) Legal-For-Trade: 14ºF –... - Page 44 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
