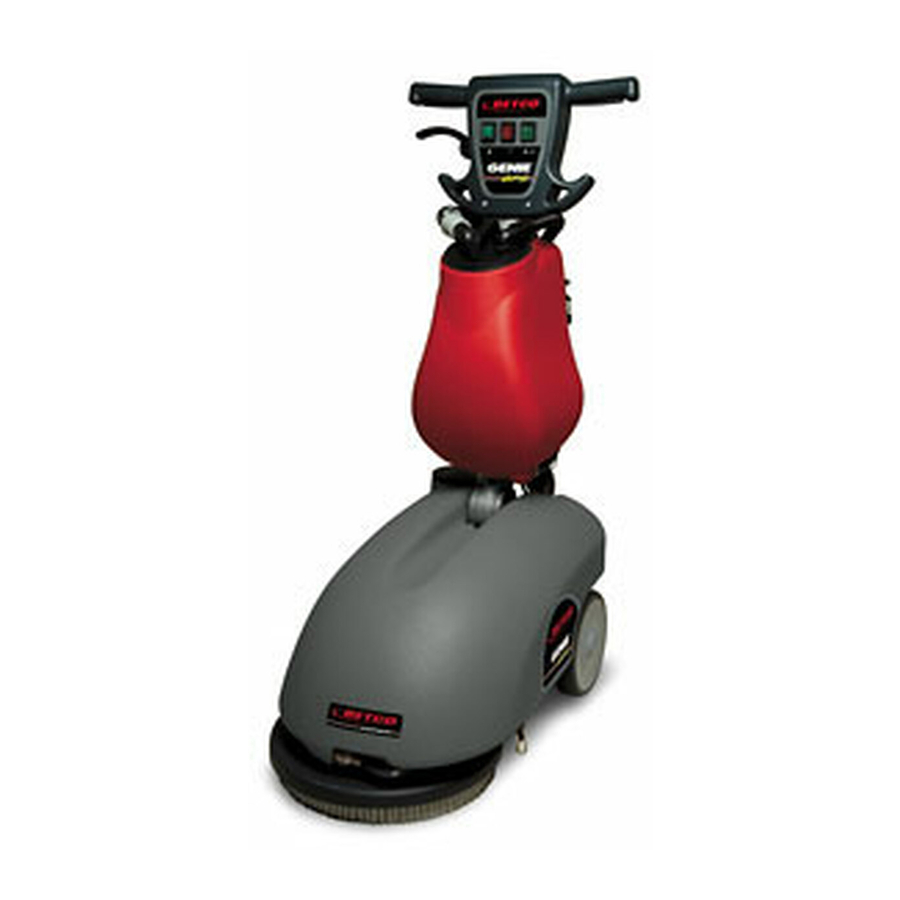

BETCO e83039-00 Genie B 14" Operator And Parts Manual
  1. Manuals
  2. Brands
  3. BETCO Manuals
  4. Floor Machine
  5. e83039-00 Genie B 14"
  6. Operator and parts manual

BETCO e83039-00 Genie B 14" Operator And Parts Manual

All purpose automatic scrubber
Hide thumbs Also See for e83039-00 Genie B 14":

Advertisement

Quick Links

Download this manual See also: Operator's Manual
E83039-00
Johnson Supply Inc. 828-283-1999 Call
™
GENIE
GENIE
B APS
B APS
Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com
1001 Brown Avenue • Toledo, Ohio 43607-0127
14" All Purpose
Automatic Scrubber
Operator and Parts
Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the e83039-00 Genie B 14" and is the answer not in the manual?

Questions and answers

Related Manuals for BETCO e83039-00 Genie B 14"

Summary of Contents for BETCO e83039-00 Genie B 14"

  • Page 1 Johnson Supply Inc. 828-283-1999 Call 14” All Purpose ™ GENIE GENIE B APS B APS Automatic Scrubber Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
  • Page 2 TABLE OF CONTENTS RECEIVING THE MACHINE........3 - 4 GENERAL SAFETY REGULATIONS ......... 5 PARTS DIAGRAMS AND LISTINGS ......6 - 23 WARRANTY ..............24...

  • Page 3: Receiving The Machine

    RECEIVING THE MACHINE Immediately check, when receiving the machine, that all the materials indicated on delivery documents have been received and also that the machine has not been damaged in transit. If it has been damaged, this damage must be immediately reported to the shipper and also to our customer’s service department.
  • Page 4 ™ TECHNICAL DESCRIPTION Measurement Unit Genie Working width in (mm) 13.8 (350) Rear squeegee width in (mm) 17.3 (440) Work capacity ft2/h ( m2/h) 11,300 (1050) Water consumption g/m2 Battery Maintenance Free, gel battery Run time Up to 1.25 hours Brush &...

  • Page 5: General Safety Regulations

    • Before using the machine make sure that all doors and covers are positioned as shown in this operating and maintenance manual. • When your BETCO machine is ready to be retired, the machine must be disposed of properly. It contains oils and electronic components. The machine itself was built using totally recyclable materials.

  • Page 6: Parts Diagrams And Listings

    BRUSH DECK PARTS DIAGRAM...
  • Page 7 BRUSH DECK PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E81530 Spring, 17, 5x2, 5x69 mm E81709 Nyloc Hex Nut, M8 Zinc E82845 Spacer E83879 Flat Washer M5x11x1 Zinc E82844 Clutch Plate E82761 Washer 6x12x1.6 E20503 Spacer E81874 Flat Washer M8x17x1.6 Zinc...
  • Page 8 SQUEEGEE SYSTEM PARTS DIAGRAM...
  • Page 9 SQUEEGEE SYSTEM PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E81815 Squeegee Vacuum Adapter E81934 Flat Washer M6x12x1.6 SS E81897 Bushing E81531 Squeegee Support Wheel 24 OD x 12.7 W E85792 Squeegee Shoe E20701 Squeegee Hose Guard E81753 Knob M5 E20616...
  • Page 10 SQUEEGEE YOKE PARTS DIAGRAM...
  • Page 11 SQUEEGEE YOKE PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E87971 Squeegee Yoke Arm E83278 Flat Washer M6.5x24x2 Zinc E86153 Squeegee Yoke E83710 Cotter Pin D2x20 Zinc E82839 Squeegee Yoke Pivot E83810 Knob E86263 Oval Hd Phil Machine Screw M5x35 SS E86152 Spacer E83834...
  • Page 12 MAIN FRAME PARTS DIAGRAM...
  • Page 13 MAIN FRAME PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E20272 Bushing E86255 Flat Washer M10x21x2 SS E20020 Hex Lug E88349 SB50 Blue Electrical Connector E86269 Bushing E89141 Charger Plug Tee Handle E20050 Protective Trim Edging E81565 Clamp, 4.8x200 Black E20587...
  • Page 14 SOLUTION AND RECOVERY TANKS PARTS DIAGRAM...
  • Page 15 SOLUTION AND RECOVERY TANKS PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E81532 Hose, Vacuum 29 D x 1250 L E83476 Rivet, M6.4x10 Nylon E81534 Recovery Tank Cap ASM E81968 Latch E82853 Filter Flange E82712 Quick Disconnect, Female 1/4" E82381 Gasket Ring E81546...
  • Page 16 CONTROL HANDLE PARTS DIAGRAM...
  • Page 17 CONTROL HANDLE PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E85770 High Hex Nut M6x13 Zinc E82796 Switch, Momentary E81793 Spring Pin M6x12 Zinc E81791 Plug E20273 Connector Tube E88173 Flat Hd Phil Machine Screw M6x10 Zinc E20620 Handle Tube E20364...
  • Page 18 ELECTRIC SYSTEM PARTS DIAGRAM...
  • Page 19 ELECTRIC SYSTEM PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E83547 M6x16 Bolt, Zinc Hex Head E81787 Ribbon Cable E83550 Nyloc Hex Nut, M6 Zinc E85788 Electrical Housing E82761 Washer 6x12x1.6 E85771 Electrical Cover E81767 Relay Electrical Board...
  • Page 20 BATTERY CHARGER DIAGRAM...
  • Page 21 ELECTRICAL LISTING Item# Part # Description Qty. Item# Part # Description Qty. E20272 Bushing E20363 Flat Hd SL Machine Screw M5x12 SS E20579 Protective Trim Edging E20322 Hex Nut, M5 SS E20050 Protective Trim Edging E20435 Nyloc Hex Nut, M3 SS E20393 Screw, Pan Hd Phil Self Tap E83476...
  • Page 22 ACCESSORIES DIAGRAM 13” Pad Clutch Plate 14” Pad Medium Brush STD General Brush Heavy Brush...
  • Page 23 ACCESSORIES LISTING Item# Part # Description Qty. Item# Part # Description Qty. E82367 Center Lock E83863 Brush, General Scrub 0.3 mm PPL E82438 Power Cord E82526 Brush, Medium Scrub 0.4 mm PPL E82408 Pad Driver E81608 Brush, Heavy Scrub 0.6 mm PPL E88140 Pad Holder 14"...

  • Page 24: Warranty

    Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
