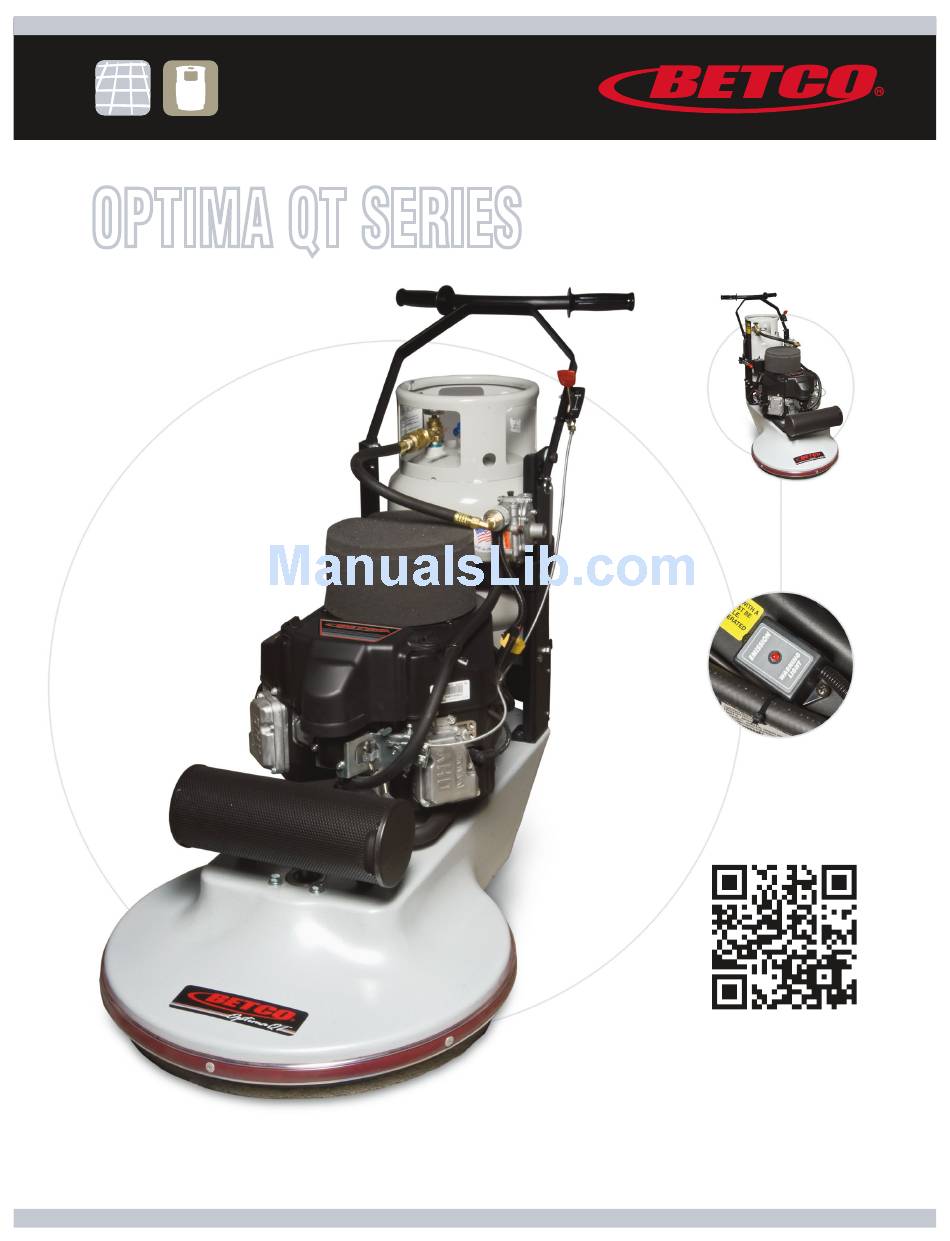

E12309-00
E12311-00
OPTIMA QT SERIES
Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com
E12314-00
1001 Brown Avenue • Toledo, Ohio 43607-0127
21", 24", 27"
Propane Burnishers
Optional
Emissions
Kit Available
Scan this QR code to view
operator training video
Operator and Parts
Manual
1
Advertisement
Table of Contents
Related Manuals for BETCO E12314-00
Summary of Contents for BETCO E12314-00
- Page 1 21”, 24", 27" Propane Burnishers Optional Emissions Kit Available Scan this QR code to view operator training video Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Carbon Monoxide Warning ........3 Safety ..............4 Tank Use and Storage ..........5 Starting and Stopping the Kawasaki Engine ....5 Operator Preparation ..........6 Belt Tensioning ............7 Pad Change .............8 Pad Driver Removal ..........8 Major Assemblies ...........9 Handle Bar ............ 10 - 11 Lower Handle Support ........ -
Page 3: Carbon Monoxide Warning
WARNING - CARBON MONOXIDE LETHAL EXHAUST GAS - MUST READ THIS! - Never Run The Engine In A Closed Building Or Confined Area Exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odorless, colorless, and can cause death if inhaled. Carbon Monoxide Poisoning Symptoms Train your employees to know the warning signs of carbon monoxide poisoning. -
Page 4: Safety
SAFETY lmportant Safety Information All LPG (Liquid Propane Gas) powered engines, including this engine, produce Carbon Monoxide (CO). It is a Lethal Poison that is colorless, odorless, tasteless, and non-irritating gas. You must read “Danger: Lethal Exhaust Gas” information below. Keep hands, feet, and loose clothing away from all moving parts while the machine is in operation. -
Page 5: Tank Use And Storage
TANK USE AND STORAGE Propane Tank Use We use the Worthington gas cylinders designed for vapor withdrawal. The fuel lock offs, regulators, and engines are also designed for vapor withdrawal. • We recommend that you use the OPD (Overflow Protection Device) vapor withdrawal type cylinder. These style tanks have a triangle shaped valve handle. -
Page 6: Operator Preparation
OPERATOR PREPARATION Before Starting the Machine Read the Owner’s Manual and the Engine Operation Manual. Your machine is shipped ready for operation; however there is no fuel in the tank. When having the tank filled, you must make sure the tank is never over-filled. •... -
Page 7: Belt Tensioning
BELT TENSIONING Use 15/16" socket with extension to tighten tensioner in direction of arrow. Test tension by pushing or pulling on belt or belt tensioner. With proper belt tension the pulley on the belt tensioner should only move about 1". Use 9/16"... -
Page 8: Pad Change
PAD CHANGE METHODS Caution: Muffler May Be Hot! 1. Close valve and remove propane tank from the Tilt the machine back on its caster. Tilt the machine on either side. machine. Unscrew the pad center threaded hold. Unscrew the pad center threaded hold. 2. -
Page 9: Major Assemblies
MAJOR ASSEMBLIES UPPER HANDLE ASM PROPANE TANK KEY SWITCH ASM REGULATOR ASM LOWER HANDLE ASM ENGINE ASM DECK ASM BELT DRIVE ASM PAD DRIVER ASM... -
Page 10: Handle Bar
HANDLE BAR E88808 E12696 E12476 E10120 E83145 E86228 E11420 E86125 E11146 E87986 E86114 (38") -
Page 11: Handle Bar
PART Description QTY. NUMBER E10120 Nut, #10-32, Nylon Lock, Grade 5, Zinc E11146 Nut, 3/8"-16, Nylon Lock, Grade 5, Zinc E11420 Washer, #10 SAE, Zinc E12476 Screw, Shoulder 1/2" x 1/2" Socket Head E12696 Hand Grip E83145 Washer, Nylon 1/2" ID X 1.25" OD E86114 Kawasaki Throttle Cable 38"... -
Page 12: Lower Handle Support
LOWER HANDLE SUPPORT (Beginning Serial Number 50000) E86120 E10457 (13") E89825 E86125 E11702 E89823 E81089 E10141 E89822 E86119 E10457 (4") E10120 E81072 E88807 E89826 E11353 E10734 E81062 E81062 E89824 E11146 E89827 E88550 - PROPANE TANK NOT SHOWN... - Page 13 E88550 Propane Tank, Steel, 20#, OPD Note: Not available for purchase assembled.
-
Page 14: Lower Handle Support
LOWER HANDLE SUPPORT (Before Serial Number 49999) E88806 E86120 E86125 E10457 (13") E11702 E10761 E81072 E81089 E81063 E86125 E86119 E10120 E88316 E10457 (4") E81072 E88319 E81089 E11353 E88807 E10734 E83629 E86125 E88805 E81062 E11146 E88550 - PROPANE TANK NOT SHOWN E88324... - Page 15 PART Description QTY. NUMBER E10120 Nut, #10-32, Nylon Lock, Grade 5, Zinc E10457 Felt, 1.500 W x 0.125 Thick, Adhesive Back E10734 Screw, 1/4"-20 x 0.625 Hex Head, Grade 5, Zinc E10761 Rubber Propane Tank Shelf Pad E11146 Nut, 3/8"-16, Nylon Lock, Grade 5, Zinc E11353 Tube Clamp 3/4"...
-
Page 16: Regulator Assembly
REGULATOR ASSEMBLY E10751 E88804 E10746 E10084 E12359 E10734 E88509 E10243 (Emissions) E10246 E11321 E88803 (36") E11353 E88510 (24") 12V KEY SWITCH BOX E10550 E12290 E10449 E86125 E86121 E10204... - Page 17 PART Description QTY. NUMBER E10084 Fitting, 3/8 MJIC x 3/8 MNPT, 90 Elbow, Brass E10243 In Line Fuel Shut Off Valve Model 152 (With Emissions) E10246 In Line Fuel Shut Off Valve Model 151 E10734 Screw, 1/4"-20 x 0.625 Hex Head, Grade 5, Zinc E10746 Fuel Regulator Model 60E E10751...
-
Page 18: Kawasaki Engine Assembly
KAWASAKI ENGINE ASSEMBLY E10242 - Emission Kit (E10248 E12360 & E10249) E10245 - Bung Plug M18 x 1.5mm E10337 - Valve Oil Seal E10544 - Decal, Clutch E12426 - CO Detection Badge E88859 E12525 - Drive Shaft Oil Seal E85461 - Oil Drain Hose ASM E88326 - Spark Plug E88327 - Ignition Coil ASM E88480... - Page 19 PART Description QTY. NUMBER E10116 Screw, 7/16"-14 x 1.250 Hex Head, Grade 5, Zinc E10135 Washer, 3/8" USS, Zinc E10137 Clamp, Tube 1/2" (COV-0909) E10242 Emissions Kit (E10248, E10249) E10245 Bung Plug M18 x 1.5mm E10248 O2 Sensor Electrical Control Box E10249 O2 Sensor E10337...
-
Page 20: Deck Assembly
DECK ASSEMBLY E86233 BEFORE S/N 39,999 E89585 AFTER S/N 40,000 E81089 E81067 E11281 - 21 INCH DECK E11282 - 24 INCH DECK E11840 - 27 INCH DECK E10122 E10120 E11772 E81088 E12704 E86118 E83520 E12584 E86225 E12581 E10202 E10902 E12689 E11407 E10141 E10705... -
Page 22: 27" Dust Control Deck Assembly
27" DUST CONTROL DECK ASSEMBLY E83520 E11772 E81088 E10120 E81089 E81078 E81067 E83520 E10122 E88979 E81078 E81713 E88772 E89594 E81078 E81713 E88982 E10705 E88983 E81713 E10902 E89592 E81078 E89604 E81064 E87985 E86118 E89608 E10202 E10122 E88986 E86225 E10141 E12689 E89638 E88984... - Page 23 PART DESCRIPTION QTY. NUMBER E10120 NYLOC HEX NUT 10-32 E10122 HEX HEAD BOLT 1/4-20 x 1.00 LG E10141 NYLOC HEX JAM NUT 0.3125-18 ZINC E10202 RIVET ALUMINUM, 0.188 x 0.70 LG, 0.600 DOME HEAD ADA68L E10705 BUMPER 27'' E10902 HEX HEAD BOLT 5/16-18 x 2-1/2 LG ZINC E11772 SOLENIOD 12 VDC E12689...
-
Page 24: Belt Drive System
BELT DRIVE SYSTEM E83269 -- 24" & 28" Deck E10116 place 4 between E12709 & aluminum deck at this bolt location. E10117 E83629 E83269 -- 21" Deck place 4 E81066 between E12709 and aluminum deck at this bolt location. E10135 E12447 E10459 E12709... - Page 25 PART Description QTY. NUMBER E10116 Screw, 7/16"-14 x 1.250 Hex Head, Grade 5, Zinc E10117 Washer, 7/16" Split Lock, Zinc E10135 Washer, 3/8" USS, Zinc E10294 Belt, BX41 V-Belt, 41" E10305 Belt, BX49 V-Belt, 49" E10428 Pulley BK100H - 10.00 OD E10459 Belt Tensioner E10472...
-
Page 26: Pad Drive System
PAD DRIVE SYSTEM EP50028 -- 21" Pad Drive Assembly EP50027 -- 24" Pad Drive Assembly EP50040 -- 27" Pad Drive Assembly E10112 E81067 E10586 E12444 E10250 -- 21" Pad Driver E10251 -- 24" Pad Driver E10252 -- 27" Pad Driver E81063 E12517 2 Piece Set... - Page 27 PART Description QTY. NUMBER 84621 Pad, 21" Hi-Shine Light Burnish Pad, 5/Case 84624 Pad, 24" Hi-Shine Light Burnish Pad, 5/Case 84627 Pad, 27" Hi-Shine Light Burnish Pad, 5/Case E10112 Screw, 5/16"-18 x 1.250 Hex Head Grade 5, Zinc E10250 21" Pad Driver E10251 24"...
-
Page 28: Centrifugal Clutch Assembly
CENTRIFUGAL CLUTCH ASSEMBLY E86122 E86122 is installed to align the belt drive section of the clutch to the pad driver pulley belt drive section. E12434 Remove and discard set screws from clutch before installing. Install key after pushing clutch E11289 onto the engine drive shaft and aligning keyways. - Page 29 PART Description QTY. NUMBER E10117 Washer, 7/16" Split Lock, Zinc E10598 Screw 7/16"-20 x 1.750 Hex Head, Grade 5, Zinc E11289 Key 1/4" x 1/4" x 1.500" E11501 Washer, 7/16" USS, Zinc E12434 Clutch, Centrifugal 1750 RPM 4" Dia. E12447 Washer, 7/16"...
-
Page 30: Electrical Schematic
ELECTRICAL SCHEMATIC EP50033 Serial Numbers Before 39999 LP Ready 17HPKawasaki Engine Assembly E10246 In Line Fuel Shut O Valve Model 151 E12405 Oil Pressure Switch Black 14 Gauge Wire 14 Gauge Wire Black 14 Gauge Wire E10449 Ignition Switch E86119 Hour Meter, SenDEC 5-80V Yellow 14 Gauge Wire... - Page 31 ELECTRICAL SCHEMATIC (emissions) Serial Numbers Before 39999 EP50034 LP Ready 17HP Kawasaki Engine Assembly With Emission Kit (E10242) Black Wire E10248 O2 Sensor Electrical Control Box E10249 O2 Sensor Blue Wire E12405 Oil Pressure Switch Green Wire 14 Gauge Wire Black 14 Gauge Wire E10449 Ignition Switch...
- Page 32 ELECTRICAL SCHEMATIC Serial Numbers After 40000 E10449 KEY SWITCH ORANGE 14 GA RED 14 GA GREEN 14 GA E12405 OIL PRESSURE SWITCH BLACK 14 GA RED 14 GA YELLOW 14 GA YELLOW 14 GA WIRE HARNESS E89585 1N5402 BLACK 14 GA RED 14 GA LPG SOLENOID VALVE...
-
Page 33: Electrical Schematic
ELECTRICAL SCHEMATIC (emissions) Serial Numbers After 40000 E10449 KEY SWITCH ORANGE 14 GA RED 14 GA E12405 OIL PRESSURE SWITCH BLACK 14 GA GREEN 14 GA RED 14 GA YELLOW 14 GA WIRE HARNESS 89590 E10248 YELLOW 14 GA 1N5402 RED 14 GA BLUE 14 GA OS SENSOR... -
Page 34: Engine Maintenance
ENGINE MAINTENANCE KAWASAKI FS481V PERIODIC MAINTENANCE EVERY EVERY EVERY EVERY DAILY PLEASE REFER TO ENGINE OWNERS MANUAL HOURS HOURS HOURS HOURS FOR MORE INFORMATION Check engine oil level and add if needed Check and clean engine intake foam and intake paper filter Check and clean engine cooling air intake filter General check for loose or lost nuts, screws, oil leakage, fuel hose connection, etc. -
Page 35: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE POSSIBLE SOLUTION Battery is dead Recharge battery or replace if necessary Loose wire or bad connection Check wires and connections Engine will not turn over Bad electrical component Replace bad component Refer to engine owner’s manual and read Fuel system problem IMPORTANT below Propane tank shut off valve in off... -
Page 36: Emissions Warranty
Betco Corporation recommends that you retain all receipts covering maintenance of your SORE engine, but Betco Corporation cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the SORE owner you should however be aware that Betco Corporation may deny your warranty if your SORE or its part has failed due to abuse, neglect, improper maintenance or unapproved modification. -
Page 37: Emissions Warranty
6. The SORE owner will not be charged for diagnostic labor that is directly associated with diagnosis of a defective, emission- related warranted part, provided that such diagnostic work is performed at a warranty station. 7. Betco Corporation is not liable for damages to other engine or equipment components proximately caused by a failure under warranty of any warranted part. -
Page 40: Warranty
Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
