StarTech.com DKT31CHPDL Quick Start Manual

USB-C™ (10 Gbps) Multiport Adapter with HDMI, 85W Power Delivery Pass Through, GbE 2x USB-A & 1x USB-C

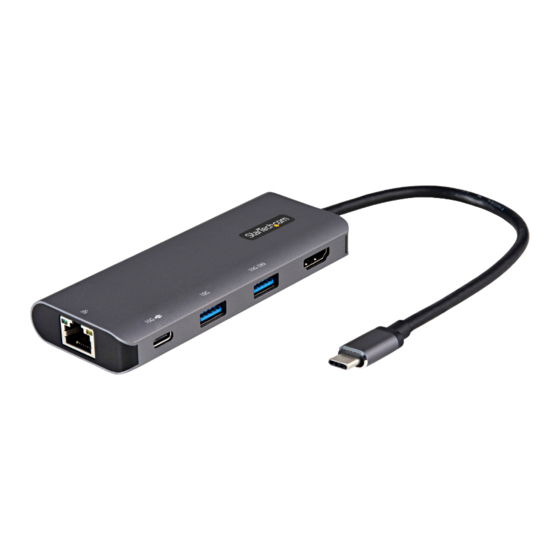

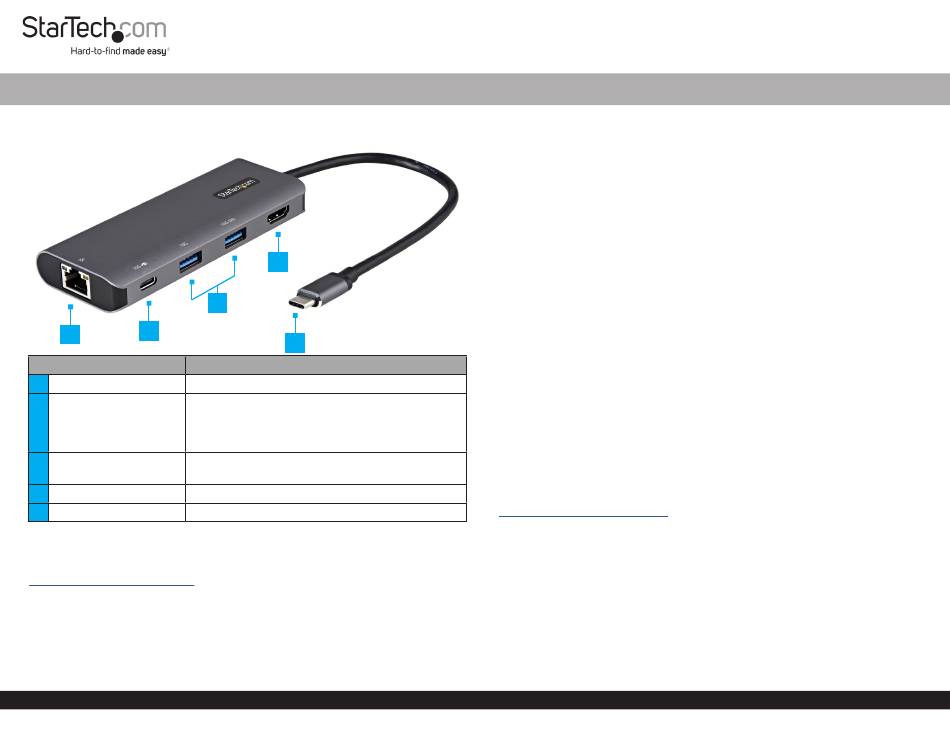

Product Diagram (DKT31CHPDL)
Side View
2
1
Port
1 • Connect a Network Cable
RJ45 Port
• Connect a USB-C Storage Device (e.g. flash drive),
or USB-C Peripheral Device
2 USB-C Port
• Connect the Host Computer's Power Adapter for
Power Delivery Pass Through
• Connect a USB-A Peripheral Device
3 USB-A Ports
• Charge a USB-A Peripheral
4 HDMI Output Port • Connect an HDMI Display Device
5 USB-C Host Connector • Connect to a Laptop or Computer
Requirements
For the latest requirements and to view the full manual, please visit:
www.startech.com/DKT31CHPDL.
• Host Computer with USB-C Port
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4
3
5
Function
Installation
Powering the Multiport Adapter
USB Bus Power Mode (from Laptop):
The Multiport Adapter can be powered by the Host Computer's USB-C Port and
does not require a separate power adapter for most device connections.
USB Power Delivery Pass Through Mode:
If you want to charge your Laptop through the Multiport Adapter, or need additional
power to support a USB Device requiring more power, follow these steps:
1. Connect the Multiport Adapter to a USB-C Port on the Host Computer using the
USB-C Host Connector.
2. Connect the USB-C Connector from the Host Computer's Power Adapter to the
USB-C Port on the Multiport Adapter.
3. The Host Computer's Power Adapter will power the Multiport Adapter and pass
power through to the Host Computer.
Windows 7 (and earlier) Driver Installation
1. If the Found New Hardware dialog box appears on your screen, close the dialog
box or click Cancel.
Note: Once the Multiport Adapter is connected to the Computer, if no existing
Drivers are found, it will load a CD-ROM Device that contains an executable file that
you can use to install the Driver.
2. After the CD-ROM Device finishes loading, run the Installation File.
3. Complete the on-screen instructions to finish the installation.
Note: You can also download the latest software from the StarTech.com website,
www.StarTech.com/DKT31CHPDL.
Connecting a Display
• Connect an HDMI M/M Cable to the HDMI Output Port on the Multiport Adapter
and to the HDMI Input Port on the HDMI Display Device.
Connect to a Network
• Connect a Network Cable to the RJ45 Port on the Multiport Adapter and to the
Network Device.
Quick-Start Guide
Manual Revision: October 7, 2020
