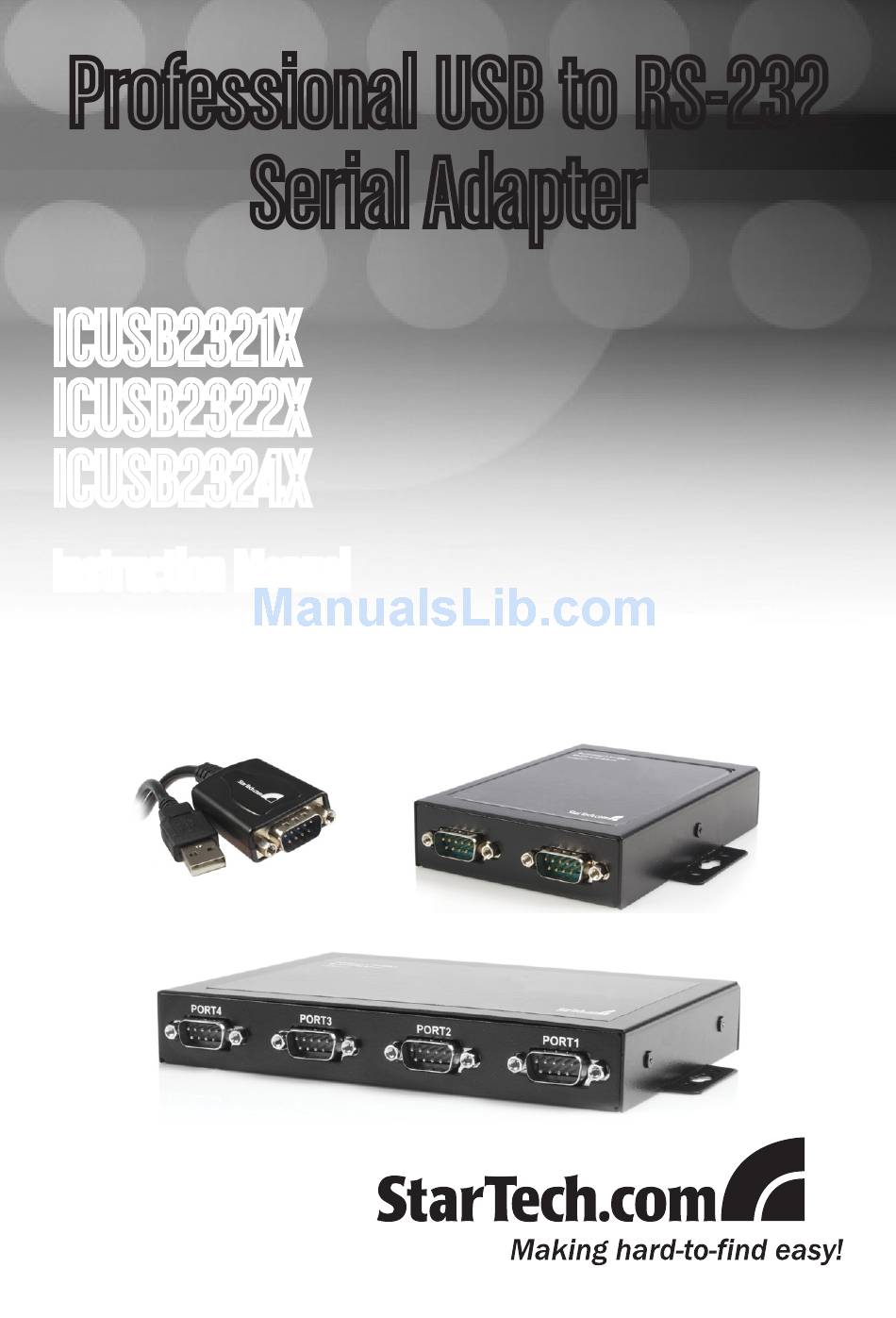

- Page 1 Professional USB to RS-232 Serial Adapter ICUSB2321X ICUSB2322X ICUSB2324X Instruction Manual...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question. -
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ..............1 Features ..................1 Package Contents ...............1 Hardware Guide ............... 2 ICUSB2321X ................2 ICUSB2322X ................2 Front Panel ................2 Rear Panel ................2 ICUSB2324X ................3 Front Panel ................3 Rear Panel ................3 Installation ............... 4 Configuration .............. -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com Professional USB to RS-232 Serial Adapter. This innovative device offers a simple way to utilize serial devices using a USB port, and stores settings that are unique to the connected device in non-volatile memory (COM Port Retention), allowing you to retain the desired settings regardless of the USB Port to which the adapter is connected. -
Page 5: Hardware Guide
Instruction Manual Hardware Guide ICUSB2321X USB A DB9 Male Female Port Port ICUSB2322X Front Panel DB9 Male Port Rear Panel DC Power USB B Adapter Input Female Port DC Terminal Block Input... -

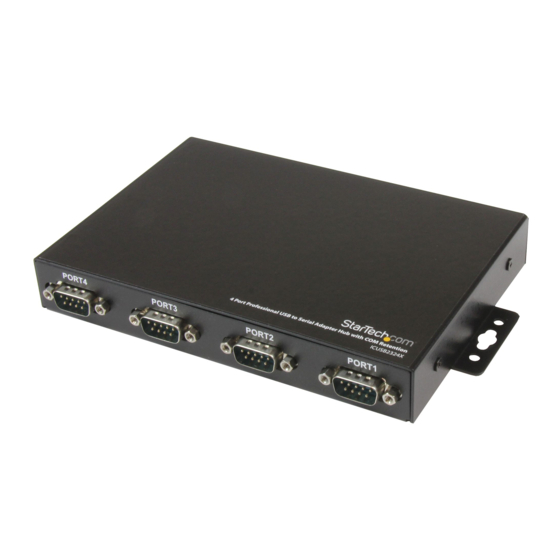

Page 6: Icusb2324X
Instruction Manual ICUSB2324X Front Panel DB9 Male Port Rear Panel USB B DC Power Female Port Adapter Input DC Terminal Block Input... -
Page 7: Installation
Click Next to proceed. You will be asked to select a destination where the Startech.com USB to Serial Adapter will be installed. Please click on Browse to manually select a location, otherwise, leave the default destination in place... - Page 8 Instruction Manual Please wait while the necessary drivers are copied and installed. Once completed, a message indicating that the drivers have been successfully installed will appear. Please click Finish to conclude the software installation. Once the necessary software has been installed, connect ICUSB232xX to an available USB port on the host computer.
- Page 9 Instruction Manual Add New When the Hardware Wizard launches, select Install the software automatically and click Next. The Wizard will begin installing the software. A window will appear indicating that “the software you are installing...has not passed Windows Logo testing...”. Click Continue Anyway to proceed.
-
Page 10: Configuration
Instruction Manual Once the software has been installed, click Finish. Repeat steps 7 - 10 as necessary (dependent on number of serial ports being installed). Once the installation has concluded, you will be able to configure the ICUSB232xX as required. Configuration To configure ICUSB232xX: My Computer (Windows XP) or Computer (Vista™) - Page 11 Instruction Manual From within the Properties window, the following tabs offer configuration for ICUSB232XX functions: General This tab provides basic information about the ICUSB232XX, as well as its operating status. ICUSB232XX operation can be disabled from here using the drop-down box provided under Device Usage.
- Page 12 Instruction Manual Configurations This tab allows users to change the name given to the ICUSB232xX for easier reference, and also the assigned port number. The new name will take effect once a new name is entered into the New Device Name field, and the Apply button is pressed.
- Page 13 Instruction Manual before completing the flush request. This flush will be ignored when it is checked • Fast Write: When this checkbox is checked, the driver completes the data write, even if data is stil buffered in the driver and the USB Serial Device •...
- Page 14 Instruction Manual Port Status This function allows users to view the amount of data having been sent and received through ICUSB232XX. To log data flow status, select an appropriate Poll Interval (the rate at which data is collected), then click on the Start Logging button.
- Page 15 Instruction Manual Based on Physical USB ports is only available for ICUSB2321X. As such, if an ICUSB2322X or an ICUSB2324X is connected, the option of “Based on Physical USB ports” is not visible/accessible. Driver This tab allows users to view Driver Details (rev.
-
Page 16: Specifications
CE/FCC/RoHS Certifications Product Weight 33.4 g (1.18 oz) ICUSB2321X: 35 x 13 x 420mm (W x H x L) (1.38 x 0.51 x 16.54”) ICUSB2322X: 80 x 23 x 113mm (W x H x L) Product (3.15 x 0.91 x 4.45”) Dimensions ICUSB2324X: 118 x 25 x 165.2mm (W x H x L) -
Page 17: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 18 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
