StarTech.com 160W-POWER-ADAPTER Quick Start Manual

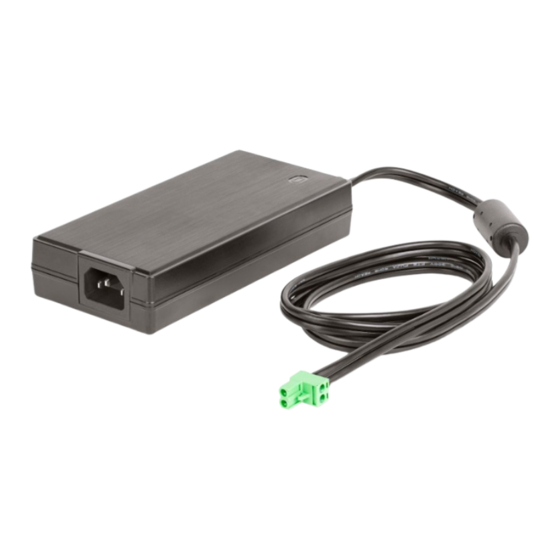

Universal DC Power Adapter - 24V, 6.6A Terminal Block
Product ID
160W-POWER-ADAPTER

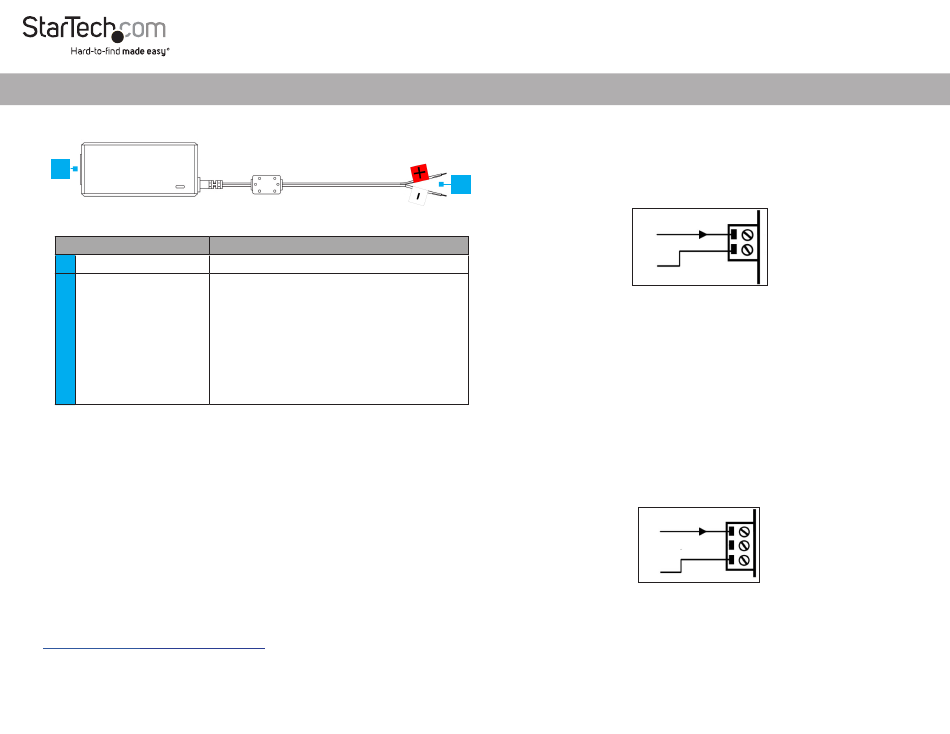

1
Component
1
Power Connector (side)
•
•
•
•
2
Terminal Block Wires
•
•
•
Package Contents
Universal Power Adapter with 4ft [1.2m] Cable x 1
•
4ft [1.2m] Power Cords x4
•
Two Conductor Terminal Block Connector (Attached)
•
Three Conductor Terminal Block Connector
•
Quick-Start Guide
•
Requirements
Small Flat Head Screwdriver x 1
•
Device with a Two or Three Conductor Terminal Block Connector x 1
•
For the latest drivers, manuals, product information, technical specifications, and
declarations of conformance, please visit:
www.StarTech.com/160W-POWER-ADAPTER
Function
Used to power the Adapter.
Used to connect and power a Device.
Two Conductor Terminal Block Connector
Preinstalled
Black Wire with Red + Flag and Red
Ferrule = Positive
Black Wire with White − Flag and Black
Ferrule = Negative
Output Voltage = 24V
Output Current =6.6A 158.4W
Using the Two Conductor Terminal Block Connector
Plug the Two Conductor Terminal Block Connector on the Adapter into the
1.
Terminal Connector on the Device.
Note: Ensure the polarity of the input power is correctly matched with the Terminal
Block Pins to ensure proper functionality. Refer to the Device's vendor manual for
2
further information on properly wiring the Device.
Two Conductor Terminal Block Connector
Using the Three Conductor Terminal Block Connector
Using a small screwdriver (Flat Head), loosen the screws on the Two Conductor
1.
Terminal Block Connector and carefully remove the Terminal Block Wires from
the Two Conductor Terminal Block Connector.
Using a small screwdriver, loosen the screws on the Three Conductor Terminal
2.
Block Connector (included) and carefully insert the Terminal Block Wires into the
Three Conductor Terminal Block Connector (Red Wire = Positive and Black Wire =
Negative).
Note: Ensure the polarity of the input power is correctly matched with the Terminal
Block Pins to ensure proper functionality. Refer to the Device's vendor manual for
further information on properly wiring the Device.
Tighten the screws on the Three Conductor Terminal Block Connector, to secure
3.
the Terminal Block Wires into the Three Conductor Terminal Block Connector.
Three Conductor Terminal Block Connector
Plug the Three Conductor Terminal Block Connector on the Adapter into the
4.
Terminal Connector on the Device.
Quick-Start Guide
+
-
+
-
Manual Revision: June 13, 2024 11:38 AM
