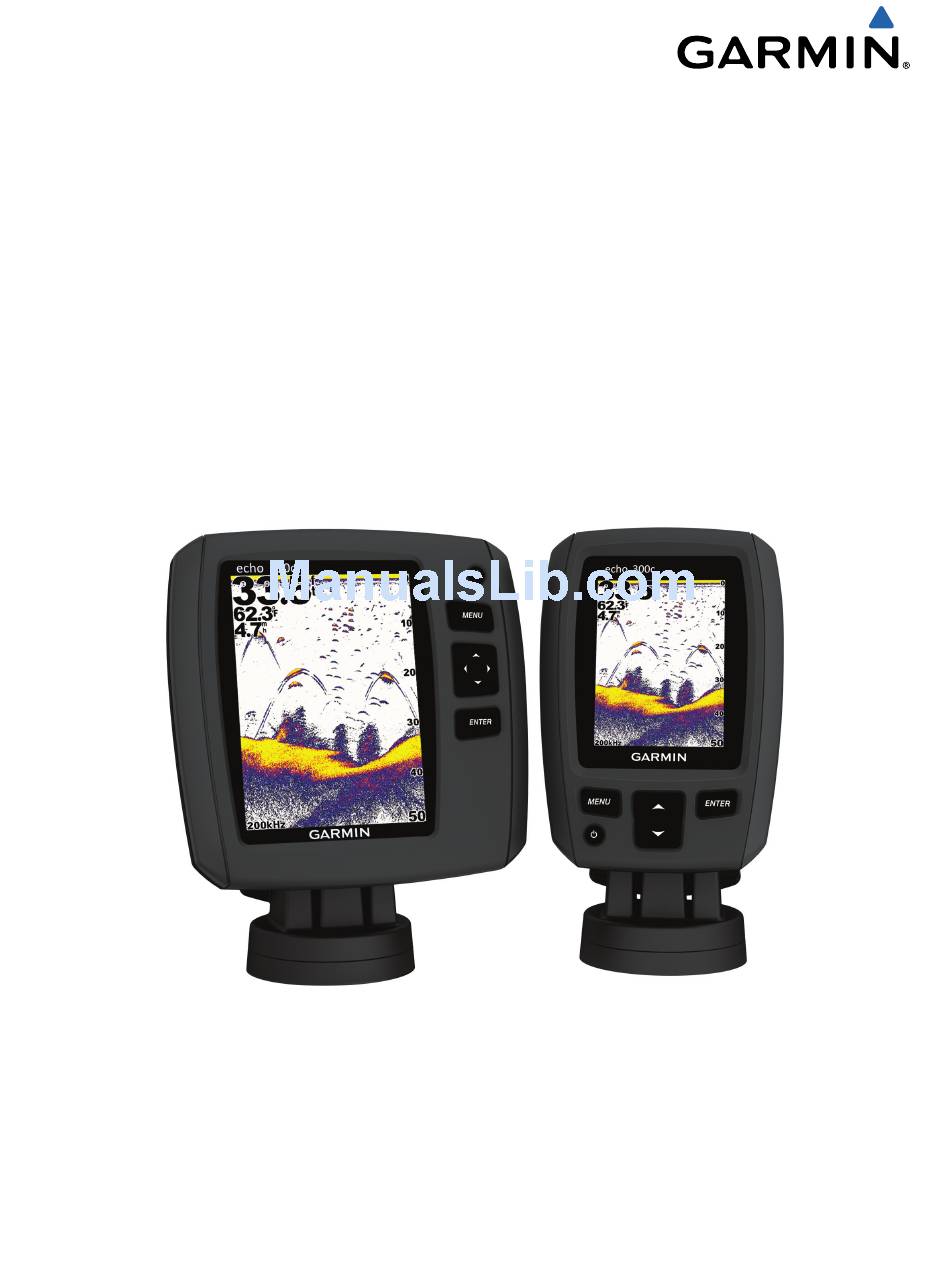

  • Page 1 echo 200, 300, and 500 Series ™ Owner’s Manual March 2014 190-01709-00_0B Printed in Taiwan...
  • Page 2 All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements.

  • Page 3: Table Of Contents

    Table of Contents Introduction..............1 Registering Your Device ............1 Contacting Garmin Product Support .......... 1 Manual Conventions ..............1 Entering Numerical Values ............1 Getting Started............... 1 Keys ................... 1 Turning on the Device Automatically ......... 1 Adjusting the Backlight ............... 1 Adjusting the Color Scheme ............

  • Page 5: Introduction

    Help us better support you by completing our online registration today. Adjusting the Color Scheme • Go to http://my.garmin.com. For the echo 300 and 500 series devices, you can set the color • Keep the original sales receipt, or a photocopy, in a safe scheme for all sonar screens.

  • Page 6: Selecting A

    Pages From the split zoom page, select MENU > Setup > Sonar Setup > Split Size > Large. You can view sonar information in different formats using the Pages menu. Split Frequency Page You can view two frequencies from the split frequency page. Selecting a Page NOTE: You must have a dual-beam transducer or a dual- Select MENU >...

  • Page 7: Numbers

    within the lower third of the sonar screen, and can be useful for Depth at your present location tracking the bottom where there are slow or moderate terrain Depth scale changes. When the depth changes dramatically, like a drop off or cliff, Numbers Page manually adjusting the range allows a view of a specified depth You can view numeric information instead of a graphic from the...

  • Page 8: Showing And Adjusting The Depth Line

    Showing and Adjusting the Depth Line Setting the Gain Automatically You can show and adjust a horizontal line on a sonar screen. NOTE: To set the gain on the split frequency page, you must The depth of the line is indicated on the right side of the screen. set each frequency separately.

  • Page 9: Sonar Numbers Settings

    • sets the alarm to sound when fish of all sizes are depth from the bottom of the keel instead of from the transducer detected. location. • sets the alarm to sound only when medium or large Select an option, based on the location of the transducer: fish are detected.

  • Page 10: Appendix

    “Software”) in binary executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin and/or its third- party providers. You acknowledge that the Software is the property of Garmin...

  • Page 11: Index

    Index water speed 5 temperature offset 5 alarms, sonar 4 zoom, sonar 3 backlight 1 beeper 1 contrast 1 data 1 device cleaning 6 registration 1 display settings 1 DownVü 3 factory settings 5 help 1 keel offset 5 keys 1 power 1 language 5 offset, keel 5 page. See sonar pages. See sonar pausing 3 power key 1 product registration 1 quick adjust 1 registering the...
  • Page 12 +27 (0)11 251 9999 + 46 7744 52020 +886 2 2642-9199 ext 2 +49 (0)180 6 427646 0808 238 0000 20 ct./Anruf. a. d. +44 (0) 870 8501242 deutschen Festnetz, Mobilfunk max. 60 ct./Anruf 913-397-8200 1-800-800-1020 © 2013–2014 Garmin Ltd. or its subsidiaries...

  • Page 13: Mounting Considerations

    Registering Your Device Help us better support you by completing our online registration today. • Go to http://my.garmin.com. • Keep the original sales receipt, or a photocopy, in a safe place. Contacting Garmin Product Support • Go to www.garmin.com/support...
  • Page 14 Loosely fasten the base using the appropriate screws or bolts. Go to www.garmin.com or contact your local Garmin dealer to ® determine the appropriate type of transducer for your needs. Place the swivel mount on the base, but do not fasten it.

  • Page 15: Specifications

    Specification Models Measurement Compass-Safe echo 101, 151, and 201 10 in. (250 mm) Distance echo 301c 13.8 in. (350 mm) echo 501c and 551c 15.75 in. (400 mm) Frequency echo dv models 50/77/200 kHz, DownVü echo 101 200 kHz echo 151, 201, 301, and 501 50/77/200 kHz series Power Source...
  • Page 16 Garmin International, Inc. Garmin and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. echo™ is a 1200 East 151st Street trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.
  • Page 26 After printing and before cutting the mounting surface, measure the printed template to ensure both the length and the width printed at the correct size and to ensure that the dimensions of the printed template match the actual size of your mount. Garmin is not responsible for any...
  • Page 27 echo 200, 500c, 550c ® Flush Mount Template (9.5 mm) (4.5 mm) (110 mm) August 2011 190-01312-05 Rev. B Printed in Taiwan...
