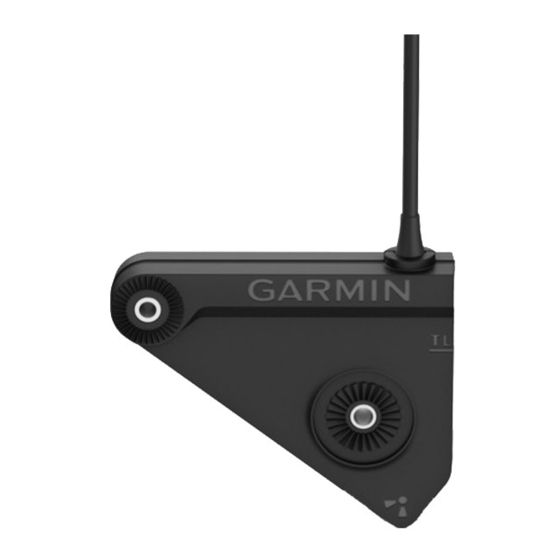

Garmin Panoptix Livescope LVS12 Installation Instructions

PANOPTIX
LVS12
INSTALLATION
INSTRUCTIONS
Important Safety Information
See the Important Safety and Product Information guide in the
chartplotter product box for product warnings and other
important information.
You are responsible for the safe and prudent operation of your
vessel. Sonar is a tool that enhances your awareness of the
water beneath your boat. It does not relieve you of the
responsibility of observing the water around your boat as you
navigate.
Failure to install and maintain this equipment in accordance with
these instructions could result in damage or injury.
Always wear safety goggles, ear protection, and a dust mask
when drilling, cutting, or sanding.
When drilling or cutting, always check what is on the opposite
side of the surface.
To obtain the best performance and to avoid damage to your
boat, you must install the Garmin
instructions.
Read all installation instructions before proceeding with the
installation. If you experience difficulty during the installation, go
to support.garmin.com for more information.
Registering Your Device
Help us better support you by completing our online registration
today. Keep the original sales receipt, or a photocopy, in a safe
place.
1
Go to my.garmin.com/registration.
2
Sign in to your Garmin account.
Software Update
You must update the software when you install this device.
If your Garmin chartplotter has Wi‑Fi
update the software using the ActiveCaptain
compatible Android or Apple
™
not have has Wi‑Fi technology, you should update the software
using a memory card and a Windows
For more information, go to support.garmin.com.
Tools Needed
• Drill
5
• 4 mm ( / in.) and 3.2 mm (
32
• Masking tape
• #2 Phillips screwdriver
• Marine sealant
1
• 32 mm (1 / in.) hole saw (optional)
4
• Cable ties (optional)
LIVESCOPE
™
WARNING
CAUTION
NOTICE
device according to these
®
technology, you should
®
app on a
™
device. If your chartplotter does
®
computer.
®
1
/ in.) drill bits
8

Mounting Considerations

• You must not mount the transducer in the path of the
™
propeller.
• On an outboard motor, you should mount the transducer on
the side of the down stroke of the propeller, typically
starboard.
• You should mount the transducer in a location where it will
not be jarred when launching, hauling, or storing.
• You should mount the transducer in a location where it is not
behind strakes, struts, fittings, water intake or discharge
ports, thru-hull transducers, or anything that creates air
bubbles or causes the water to become turbulent. Turbulent
water may interfere with the sonar beam.
• You should mount the transducer as close to the center line
of the boat as possible.

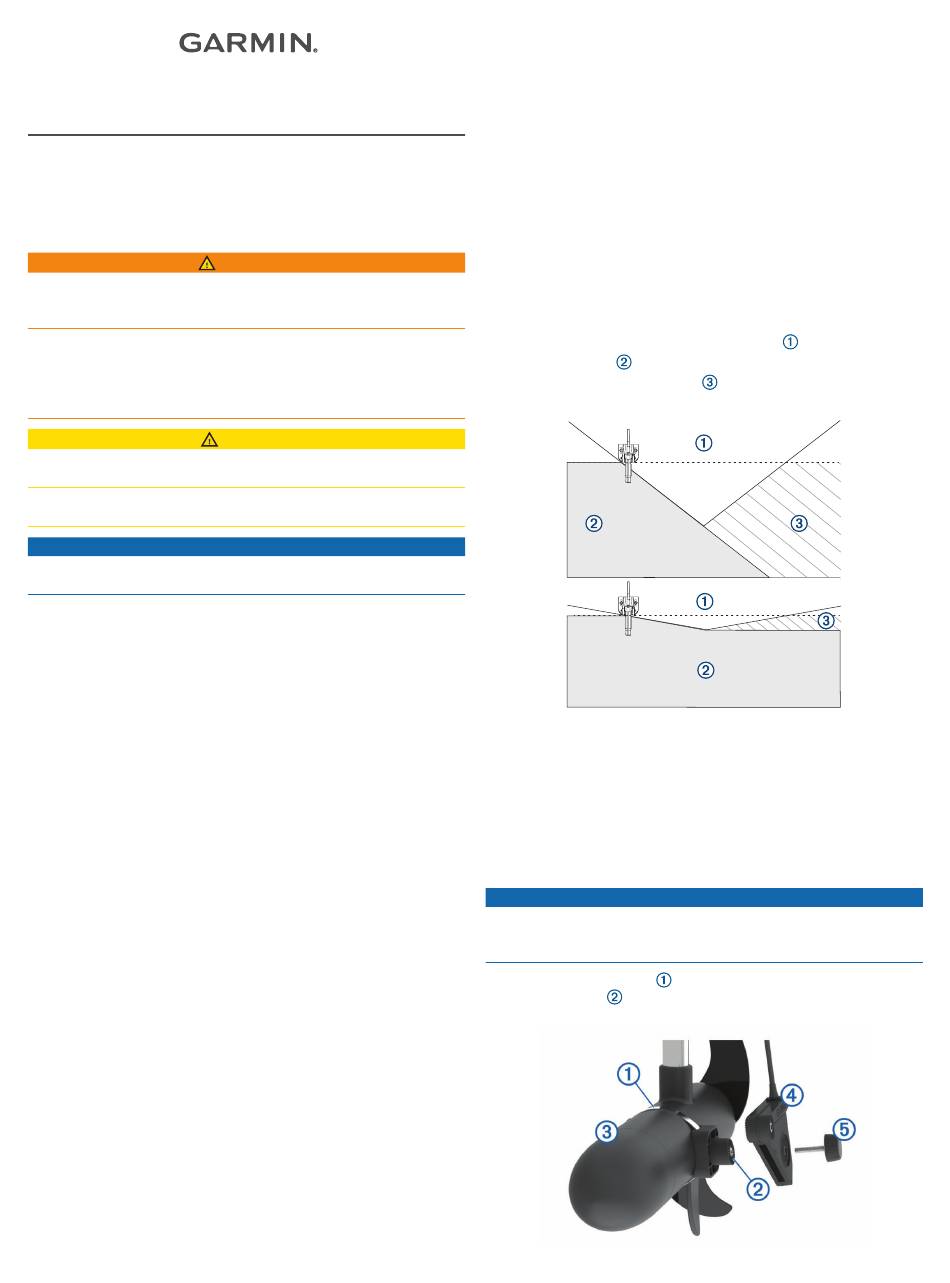

• When mounted farther from the center of the transom, a
greater deadrise can cause the boat hull
the sonar beam
the opposite side of the boat
from behind.
• On twin-drive vessels, you should mount the transducer
between the drives, if possible.
• If necessary, for extra cable length you can connect an
optional extension cable, available at
your Garmin dealer.
Installing the Transducer on the Trolling
Motor
You must secure the transducer cable to the shaft or other
secure location after installation. Damage to the transducer
cable wires or cable jacket can cause transducer failure.
1
Insert the hose clamp
mount bracket
the mount.
, and can cause inconsistent detection on
. The transducer is shown
buy.garmin.com
NOTICE
through the slot on the trolling motor
, until equal lengths extend on both sides of
190-02495-90_0A
to interfere with
or from
December 2018
