ELECTRONI C DRUM SET
USER M A NUA L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD BETA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ddrum DD BETA

Summary of Contents for ddrum DD BETA

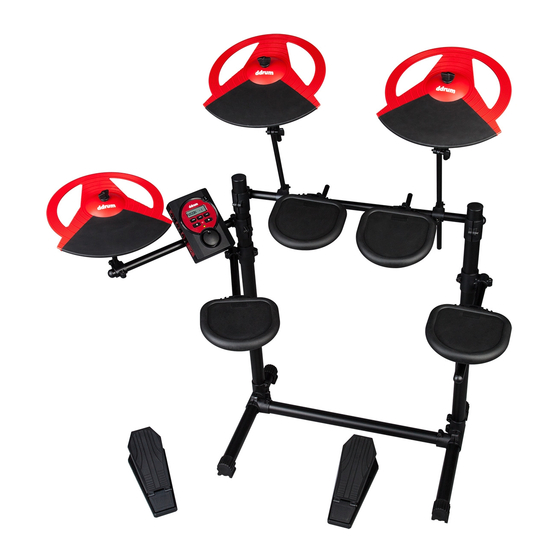

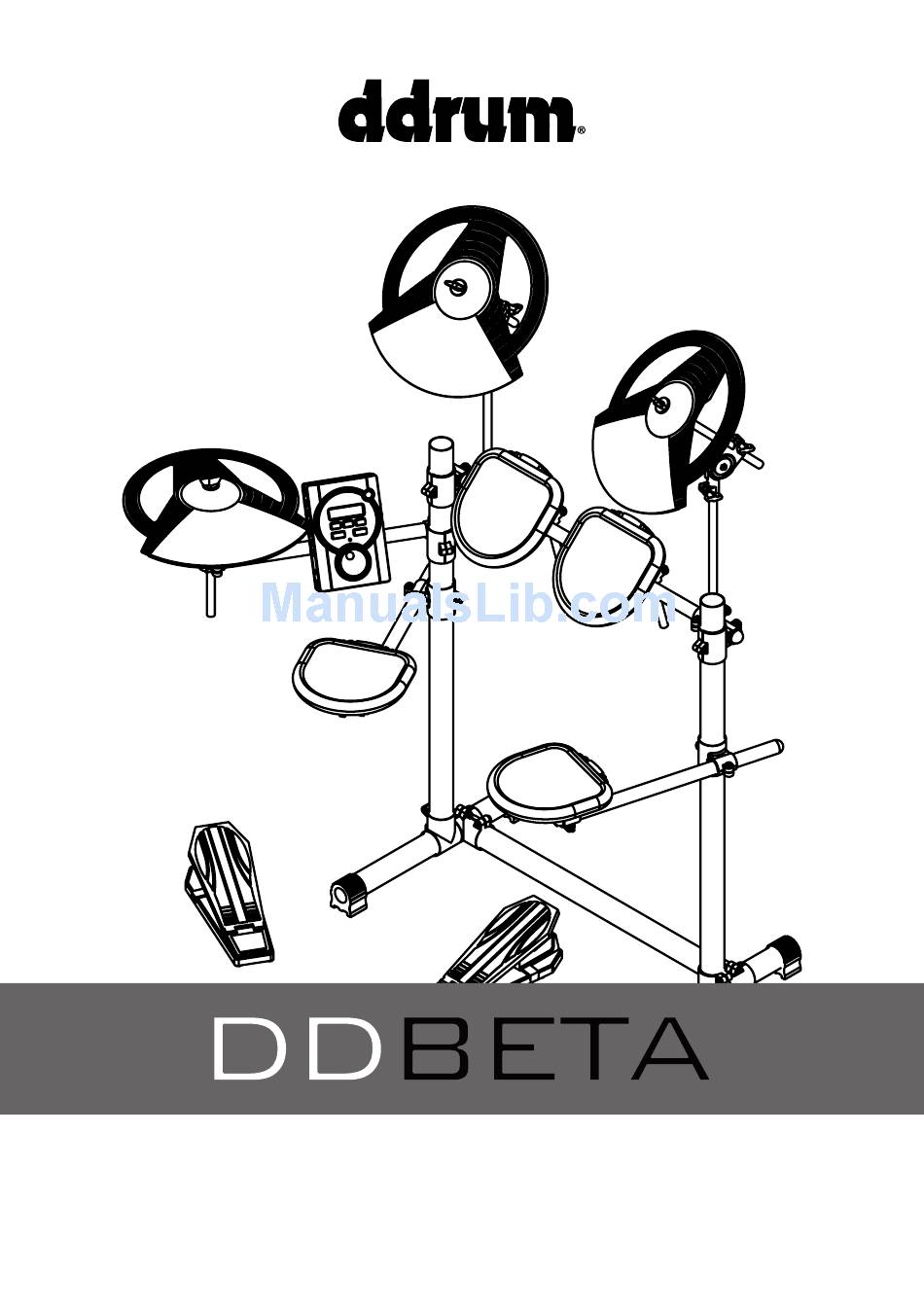

  • Page 1 ELECTRONI C DRUM SET USER M A NUA L...
  • Page 2 Operation Warning Instruction for Prevention of Fire, Electric Shock, & Physical Injury About Warning & Caution Signs This sign indicates the risk of serious physical injury or even death. Please operate the machine according to WARNING instructions. This sign indicates the risk of serious physical injury and even death.
  • Page 3 WARNING WARNING For proper operation, make sure that Please read the following instruction the support stands are placed on flat before operation. and stable ground in order to support the machine safely and stably. Do not open or, in any way, modify Use only the included adapter.
  • Page 4 WARNING CAUTION Should any of the following situations Always place the machine and the result, please stop operation and adapter in areas with good airflow. remove the adapter from the socket, and consult with your retailer, the When inserting or removing the nearest customer service, or any of power cable into/from the socket or the recognized retailers listed on the...

  • Page 5: Power Supply

    Precautions Please read the following precautions aside from the safety instructions Power Supply Additional Precautions • Do not share the power supply with other • During operation, please handle with care to electronics that can produce cable statics, for prevent any damage. example, electric motors.
  • Page 6 Accessories Sound Module Cymbal Drum Stick Headphones (1 set) Adapter L-L Mono L-L Streao Cable Tie User Sound Cable Sound Cable Manual (Black) (Red) Hi-Hat Bass Drum Controller Controller Velcro...
  • Page 7 Parts Ø3.81 (cm) Ø2.22 (cm) Floor Pad Stopper Stopper Bolt Washer Bolt Spare Parts Connectors P4~P7 Ø2.22 Pad Ø1.27 Pad U-shape Plate & Connector Connector Adjustable Bar Double Screws Support Stand Ø3.81 x40 (cm) x1 Ø3.81 x57 (cm) x1 Ø3.81 x40 (cm) x1 Ø3.81 x75 (cm) x1 Ø2.22 x65 (cm) x1 Ø3.81 x75 (cm) x1...
  • Page 8 Step (40 cm) (57 cm) (40 cm) (75 cm) (65 cm) (75 cm) (40 cm)
  • Page 10 Step Ø2.22 x40 (cm) x2 Ø1.27 x40 (cm) x2 Ø1.27 x20 (cm) x3...
  • Page 11 Step ① ② ③ ④ ⑤ ⑥ ⑦ ⑫ ⑬ ⑧ ⑨ ⑩ ⑪ ⑭...
  • Page 12 Step Convex Depression Below are examples of wrong assembly.
  • Page 13 Step...
  • Page 14 Mounting on the stand Position the Sound Module onto the Bar and fold the U-Shape Plate upwards around the bar. Secure the U-Shape Plate to the back of the Sound Module with Screws.
  • Page 15 Controller reverse side reverse side Hi-Hat label: label: Controller Hi-Hat Bass Drum Hi-Hat Bass Drum Bass Drum Controller reverse side Velcro Velcro floor mat (no provide) Choke Effect ④ CyMbAL1 ⑦ CyMbAL2 choke effect...
  • Page 16 Sound Cable ② SNARE (Black) ③ TOM1 ⑧ TOM2 ⑨ TOM3 (Black) (Blue) Connect the Sound Cables to the Drum Pads,Pedals and Sound Module. ① hI-hAT Black: mono ④ CyMbAL1 Red: stereo ⑦ CyMbAL2 (Red) ⑤ hI-hAT CTRL ⑥ bASS DRUM CTRL (Black) ④...

  • Page 17: Midi Out

    Conecting the Pads ① hI-hAT ② SNARE (Red) ① ③ TOM1 (Black) ② ③ ④ CyMbAL1 ④ ⑤ ⑥ ⑤ hI-hAT CTRL ⑥ bASS DRUM PHONES CTRL ⑦ CyMbAL2 DC IN ⑧ TOM2 ⑦ ⑨ TOM3 ⑧ ⑨ ⑩ optional ⑩...
  • Page 18 Console Control Introduction ③ POWER ① mobile music phone player ⑤ ⑥ ② ④ VOLUME ⑤ LINE IN (3.5mm stereo) For connection of a sound input source like a portable music player, a mobile phone, other instruments or another sound source. The sound is ①...
  • Page 19 Console Operation Percussion Sound Module Percussion Sound Module & Metronome Remove the protector first, it may cause unexpected damage. Press these buttons to Select a Drum Style. The Selected Drum Style will be displayed on the left side of the Sound Module’s screen; the picture of the Sound Module, above, displays Selection of ROCK Style.
  • Page 20 Press this button to Select a Sound Set for the current Drum Style. There are up to 4 Sound Sets per Drum Style. TECHNO, MARCH, and TAIKO Styles only have 1 Sound Set. The Selected Sound Set Number will be displayed to Sound Set the right of a hyphen on the right side of the screen;...
  • Page 21 Metronome Press this button to Switch to the Metronome Display, above, and Turn On the Metronome. While the Metronome Display is shown, press Click Mode this button again to Turn Off the (Metronome) Metronome. If the Metronome is not Turned Off nor its settings adjusted, the Metronome Display will eventually revert back to the Drum Style &...
  • Page 22 Audio Sampling Frequency 16bit 44.1kHz WAV Maximum Polyphony 32 notes Voices 11 Categories, 168 high sound quality audio Drum kits 32 preset drum modes Sensor 128 level ultra realistic velocity sensor Effect Reverb Metronome 30-250 BPM, 3 kinds of beats Wiring Terminal LINE IN(3.5 Stereo), PHONES(3.5 Stereo), MIDI OUT(5-pin DIN), DC IN(AC adaptor)
  • Page 23 Styles & Sounds List ROCK hI-hAT SNARE TOM1 TOM2 TOM3 CRASh1 CRASh2 bASS hI-hAT SNARE TOM1 TOM2 TOM3 CRASh1 RIDE bELL bASS RIDE hI-hAT SNARE TOM1 TOM2 SIDE STICK CRASh1 bASS CyMbAL hI-hAT SNARE TOM1 TOM2 TOM3 CRASh1 ChINA COWbELL JAZZ hI-hAT SNARE...
  • Page 24 For more information please visit our website www.ddrum.com...
