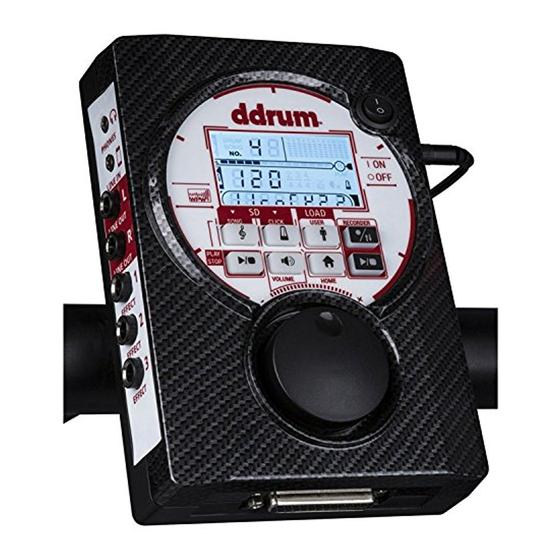

ddrum BETA XP Manual

Drum sound module
Hide thumbs

Advertisement

Quick Links

Download this manual
Drum Sound Module

Advertisement

loading
Need help?

Need help?

Do you have a question about the BETA XP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ddrum BETA XP

Summary of Contents for ddrum BETA XP

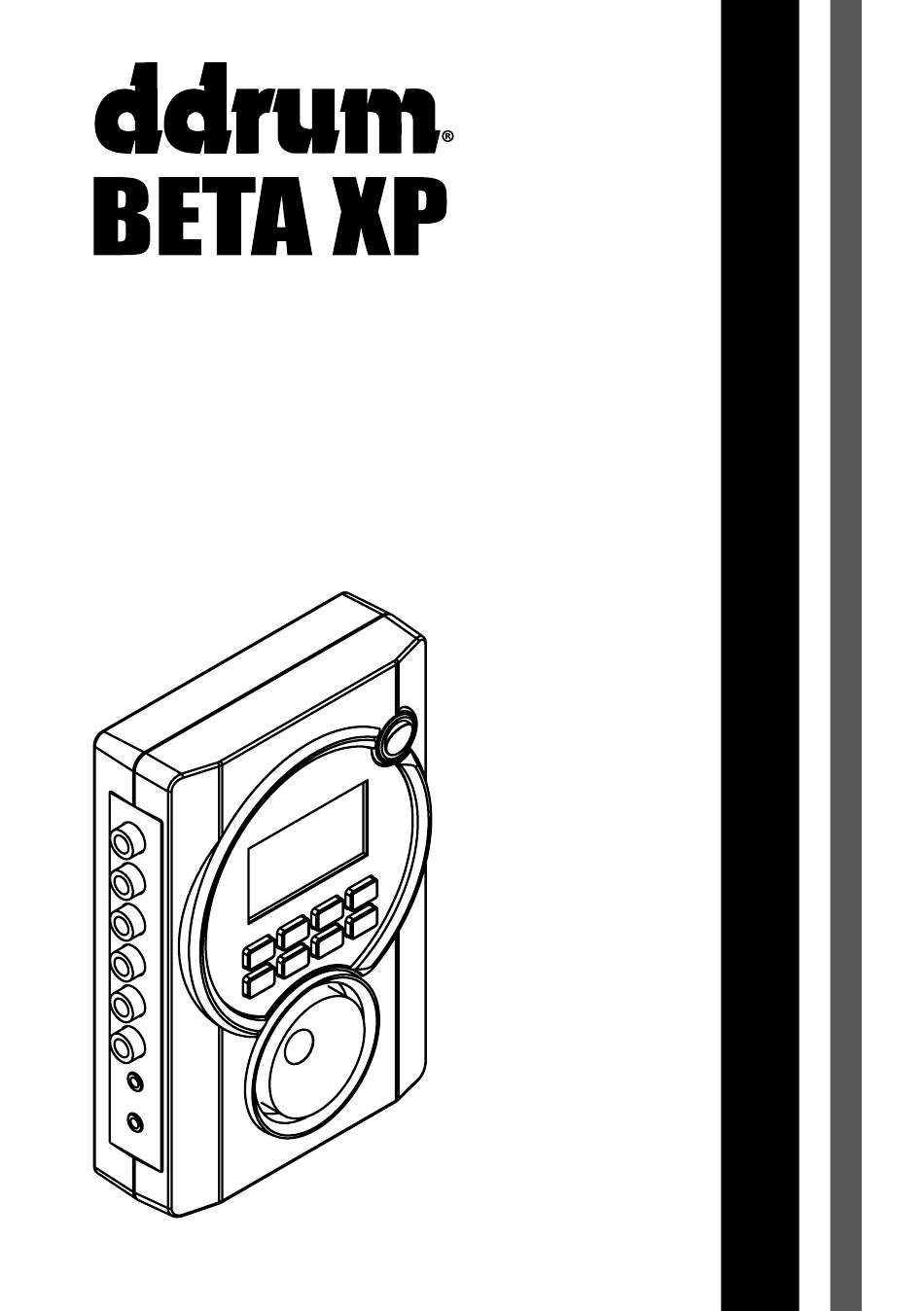

  • Page 1 Drum Sound Module...

  • Page 2: Operation Warning

    Operation Warning Instruction for Prevention of Fire, Electric Shock, & Physical Injury About Warning & Caution Signs This sign indicates the risk of serious physical injury or even death. Please operate the machine according to WARNING instructions. This sign indicates the risk of serious physical injury and even death.
  • Page 3 WARNING WARNING Use only the included adapter. Make Please read the following instruction sure that the voltage of the socket before operation. matches the voltage indicated on your adapter to prevent damage or electric Do not open or, in any way, modify the shock.
  • Page 4 WARNING CAUTION If there were children in the Always place the machine and the household, the adults should be adapter in areas with good airflow. responsible of ateaching the children to follow the safety precautions When inserting or removing the power explained in the manual.
  • Page 5 Precautions Please read the following precautions aside from the safety instructions Power Supply Additional Precautions • Do not share the power supply with other • During operation, please handle with care to electronics that can produce cable statics, for prevent any damage. example, electric motors.
  • Page 6 1 2 4 7 must use Stereo Sound Cables (two black lines) HI-HAT 1/4"(6.35mm) Stereo 1 HI-HAT SNARE Stereo 2 SNARE TOM1 1/4"(6.35mm) Mono 3 TOM1 CYMBAL1 Stereo 4 CYMBAL1 H.H. CTRL Mono 5 H.H. CTRL controller only BASS CTRL Mono 6 BASS CTRL optional...
  • Page 7 USE ORIGINAL ADAPTOR ONLY DC 5V1A DC IN (AC Adapter) CYMBAL2 Stereo 7 CYMBAL2 TOM2 Mono 8 TOM2 TOM3 Mono 9 TOM3 BASS DRUM Mono 10 BASS DRUM Micro USB USB connector (USB To MIDI) MIDI OUT MIDI 5-pin DIN MIDI OUT...

  • Page 8: List Of Commands

    List of Commands Home (drum kit) Drum kit (home) 01~33, U-1~U-4 Save preset Press and hold Reset )Press and hold 3~11 Volume 1. vol. 2. mode vol. 3~11. ch.1~8 vol. REC. REC. cancel (at loading) Song mode REC. Click mode REC. Playback Playback mute BGM (Song/ Click track)
  • Page 9 Play Song Song mode 1. Song no.01~99 2. both/vocal/drum/none Song mode Vol. ×2 Play Click Click mode 1. 30~250 BPM 2. 9 kind of beats 3. vocal/click Click mode vol. ×2 Sensitivity Select user mode Custom drum kit 9&10 Sensitivity 1~8.
  • Page 10 ① ③ ⑦ ⑥ ⑤ ⑦ ③ ⑦ ⑦ ⑧ ⑥ ⑦ ⑤ ② ⑥ ②...
  • Page 11 ①. P ower ①- 1. On/ Off p.12 Switch power on/off ②. C ontrol ②- 1. Knob Menu select & adjust the value ②- 2. Home (Drum Kit) p.13 Back to main page, save preset setting, default setting ③. D isplay ③- 1. Drum Kit p.14 ③- 2. Channel 1~8 p.14 ④. D rum Kit ④- 1. Drum Kit(Home) p.17 Choose Drum Kit.
  • Page 12 On/ Off...
  • Page 13 Home (Drum Kit): Save Preset: Press and hold the display will blink once at compeleted. Reset: ( Press and hold the display will blink once at compeleted.
  • Page 14 Display Channel 1~8 Drum kit b a c k c o v e r Sound list BASS HI-HAT SNARE TOM1 TOM2 TOM3 CYMBAL1 CYMBAL3 DRUM ROCK -1 HI-HAT SNARE HI-MID TOM LOW TOM LOW FLOOR TOM CRASH1 CRASH2 BASS JAZZ -1 HI-HAT SNARE HI-MID TOM...
  • Page 15 HI-HAT SNARE TOM1 TOM2 TOM3 CYMBAL1 CYMBAL 2 BASS DRUM User drum kit What is User Drum Kit? User drum kit Channel You have 4 set of user Drum Kits can be customized, they are U-1~U-4, each set with 8 channels. Sound list on the back cover: 001~033 are sound list Drum Kit, 1~8 are sound list channel.

  • Page 16: How To Use

    How to use ① Press the button to select. ② Watch change in the display. ③ Rotate knob to select or adjust. ② ① ③...
  • Page 17 Drum Kit (Home) ② ① b a c k c o v e r Sound list Drum Kit ③ Rotate to select Drum Kit. 001~033 The sequence of preset: beginning U-1~U-4 and the following are user:...
  • Page 18 Volume press button repeatedly. Adjust Select Display Volume 1/11 Mode Volume 2/11 please see next page Song/ Click mode volume Playback BGM volume 3/11 Channel 1 Volume 11/11 Channel 9 Volume...
  • Page 19 Mode Volume Song/ Click Mode Volume: ( ×2 Press( ) button into Song/ Click mode, press button twice to select mode volume,use adjust. Playback BGM Volume: ×2 (Song/ Click will be recorded in BGM track.) Playback BGM Mute: Press button start playback, press button twice to select mode volume,use adjust.
  • Page 20 REC. Three storage space, capacity 10,000 notes per space. Display Select (5s for select space or cancel) S1, S2, S3 Cancel REC. Stop REC.
  • Page 21 LINE IN will not be recording. music mobile player phone Song/Click Mode REC.: ( Press ( ) button to check status, (See Song/Click Mode in detail) press to select, press button start REC. (Song/ Click will be recorded in BGM track.) Important Use the Click recording mode, like the drummer in the studio recording, you can very clearly hear the drums beat is stable or not when playback.
  • Page 22 Playback Three storage space, capacity 10,000 notes per space. Display Select (5s for select space) S1, S2, S3 Playback Mute BGM Stop Playback...
  • Page 23 Playback Drum Kit: (please see Drum Kit Mode for detail) Playback BGM Mute: Playback Volume: Playback BGM Volume: ×2 (Song/ Click will be recorded in BGM track.) Playback Channel Volume: x3~10 (please see Volume Mode for detail) Press button start playback, press button select volume mode, use to adjust.

  • Page 24: Song Mode

    Song Mode Play Song: press button repeatedly. Adjust Select Display Song 01~12 MIDI songs 13~99 percussion rhythm Vocal vocal+drum vocal drum no track...
  • Page 25 Song Mode Volume: ×2 Press button into Song mode, press button twice to select mode volume,use adjust. Song Mode REC.: Press button to check status, press to select, press button start REC. (Song will be recorded in BGM track.)

  • Page 26: Click Mode

    Click Mode Play Click: press button repeatedly. Adjust Select Display Click Speed 30~250 9 kind of beats 2, 3, 3A, 4, 5, 6, 7, 8, 9 Vocal click vocal...
  • Page 27 Click Mode Volume: ×2 Press button into Click mode, press button twice to select mode volume,use adjust. Click Mode REC.: Press button to check status, press to select, press button start REC. (Click will be recorded in BGM track.) Important Use the Click recording mode, just like the drummer in the studio recording, you can very clearly to hear the beat of drums are stable or not.

  • Page 28: User Mode

    User Mode Select user mode p.30 Custom Drum Kit p.29 Sensitivity U-1~U-4...
  • Page 29 press to leave user mode, all setting will be save as preset. Save Preset: the display will blink once at compeleted.
  • Page 30 Sensitivity Select user mode: Sensitivity Main Edge Edge Bell/ Bow...
  • Page 31 press button repeatedly. Select Display Adjust Channel 1 sensitivity 1/10 Level Channel 8 sensitivity 8/10 Hi-Hat Pedal sensitivity 9/10 Hi-Hat Level Pedal Bell/Bow ↔ Edge swap 10/10 on/off...
  • Page 32 Custom Drum Kit Select user mode: Custom Drum Kit How To Customize Drum Kit Select a drum in user Drum Kit, choose a sound from sound list. (If you don't know user drum kit and sound list please see p.15 for detail.) HI-HAT SNARE TOM1...
  • Page 33 press button repeatedly. Adjust Select Display User drum kit U-1 ~ U-4 User drum kit channel Channel Sound list drum kit Sound list Drum Kit 001~033 Sound list channel Sound list Drum Kit channel 1~8...
  • Page 34 ⑤ Hi-Hat Controller Continuous Type Full open More realistic Hi-Hat effects transition between open and closed, such as full open, half open, full closed, foot splash. Full close Foot splash Half open tone transition ② Snare 2-zone Head Rim Shot *Some snare sound are not supported.
  • Page 35 ① Hi-Hat 1-zone+choke ④ Cymbal 1 ⑦ Cymbal 2 Bell/ Bow Choke effect After hitting the cymbal, you can grab the rim as illustrated to produce realistic muted cymbal sound.
  • Page 36 MIDI Note CYM- CYM- BASS HI-HAT edge close pedal SNARE shot TOM1 TOM2 TOM3 edge edge BAL1 BAL2 DRUM ROCK -1 JAZZ -1 METAL -1 BLUES -1 POWER -1 TECHNO -1 TAIKO -1 LATIN-1 TIMBALE-1 FUSION-1 ROCK-2 JAZZ-2 METAL-2 BLUES-2 POWER-2 TECHNO-2 LATIN-2...
  • Page 37 3.User drum kit channel 4.Sound list drum kit channel 1.User drum kit U-1~U-4 2.Sound list Drum Kit Sound list BASS HI-HAT SNARE TOM1 TOM2 TOM3 CYMBAL1 CYMBAL3 DRUM ROCK -1 HI-HAT SNARE HI-MID TOM LOW TOM LOW FLOOR TOM CRASH1 CRASH2 BASS JAZZ -1 HI-HAT SNARE HI-MID TOM LOW TOM LOW FLOOR TOM CRASH1 CRASH2 BASS METAL -1 HI-HAT...
  • Page 38 Spec. Audio Sampling Frequency 16bit 44.1kHz WAV WPW system Maximum Polyphony 32 notes Voices 170 high quality audio Drum kits preset: 33 user : 4 Sensor 128 level ultra realistic velocity sensor WPW system Custom Parameter Volume, Sensitivity (Individually adjusted for each pad) Songs 12 MIDI song 87 percussion rhythm...
  • Page 40 For more information please visit our website www.ddrum.com...
